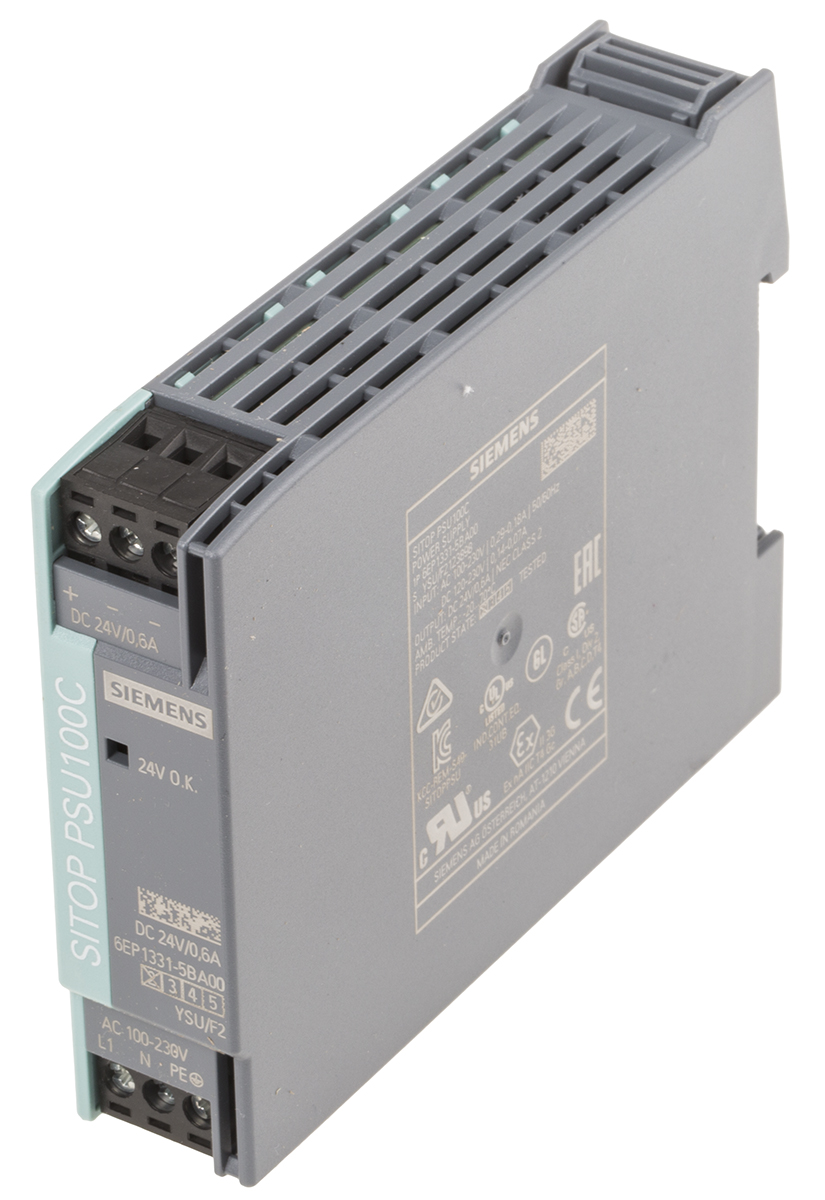

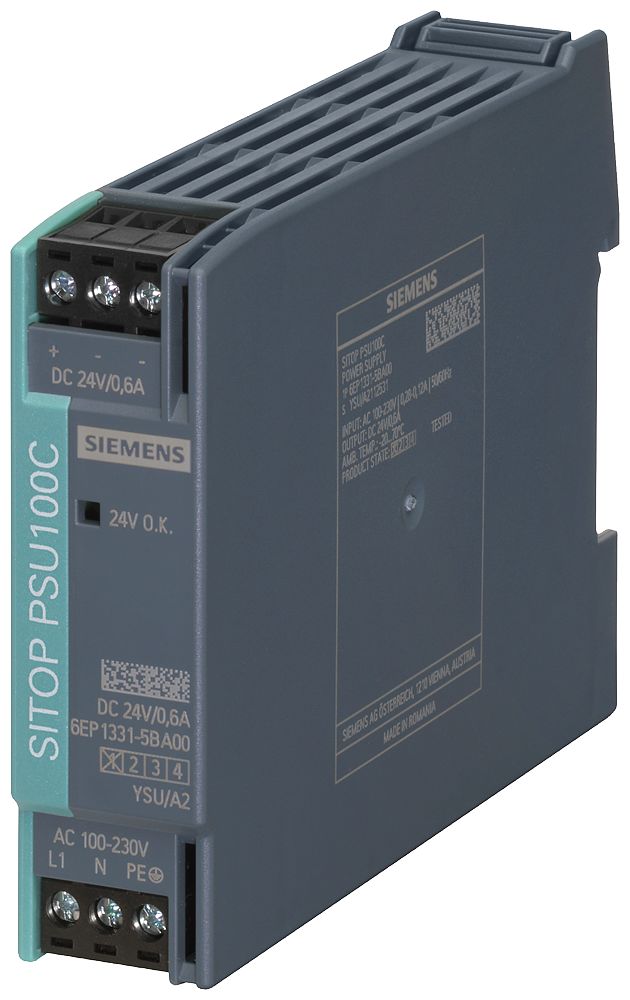

Siemens SITOP PSU100C Switched Mode DIN Rail Power Supply, 100 → 230 V ac / 110 → 300V dc ac, dc Input,

6ep1331-5ba00 Siemens SITOP PSU100C Switched Mode DIN Rail Power Supply, 100 → 230 V ac / 110 → 300V dc ac, dc Input,
6EP1331-5BA00
6EP1331-5BA00
HT25743
HT25743
DIN Rail Power Supplies
brand logo

HT Part No. HT25743

Mfr. Part No. 6EP1331-5BA00

Manufacturer: Siemens

Technical Documents: Datasheet_6EP1331-5BA00-726fafe1(datasheets) Catalogue - SITOP Power Supply-2c298d15(datasheets) Instruction Sheet - 6EP1331-5BA00-a17ca8f7(datasheets) Environmental Product Declaration-d18a5d91(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Series SITOP PSU100C
Type Switched Mode
Electrical Phase 1
AC or DC Input Voltage ac, dc
Number of Outputs 1
Input Voltage 100 → 230 V ac / 110 → 300V dc
AC or DC Output Voltage dc
Output Voltage 24V dc
Output Current 600mA
Power Rating 14W
Dimensions 100 x 22.5 x 80mm
Height 80mm
Depth 100mm
Width 22.5mm
Maximum Temperature +70°C
Load Regulation 0.2%
Ripple And Noise 200mV Pk-Pk
Efficiency 82%
Minimum Temperature -20°C
Mounting Type DIN Rail Mount
Standards Met CE Certified, cULus Listed, UL 508
Output Voltage Adjustment Range 24V
MTBF 3910833h
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=7141280&DisplayLogo=False

More Information

Siemens DIN Rail Power Supply, 14W Power Rating, 85 to 264V AC Input Voltage Range - SITOP Series - 6EP1331-5BA00 Convert varied input voltages into a stable output voltage with this DIN rail power supply from Siemens. It takes inputs between 85 and 264V AC and outputs a steady 24V DC, so it's suitable for use in low-powered systems. A green LED makes it simple to monitor the unit's status at a glance. Thanks to its low power loss of 2.6W, this is an energy-efficient choice. You'll commonly find DIN rail power supplies like this one used in mechanical engineering and industrial automation. Features & Benefits • Compact dimensions of 80 (H) x 22.5 (W) x 100mm (D) to maximise space on your DIN rail
• Wide operating temperature range between -20°C and +70°C for use in demanding conditions
• Light weight of 120g means it puts minimal strain on your equipment
• IP20 rating indicates it's touch-proof and protected against objects larger than 12mm How do I wire this power supply? This power supply has screw terminals, so you can secure your wires firmly in place without the need for any specialist tools.
