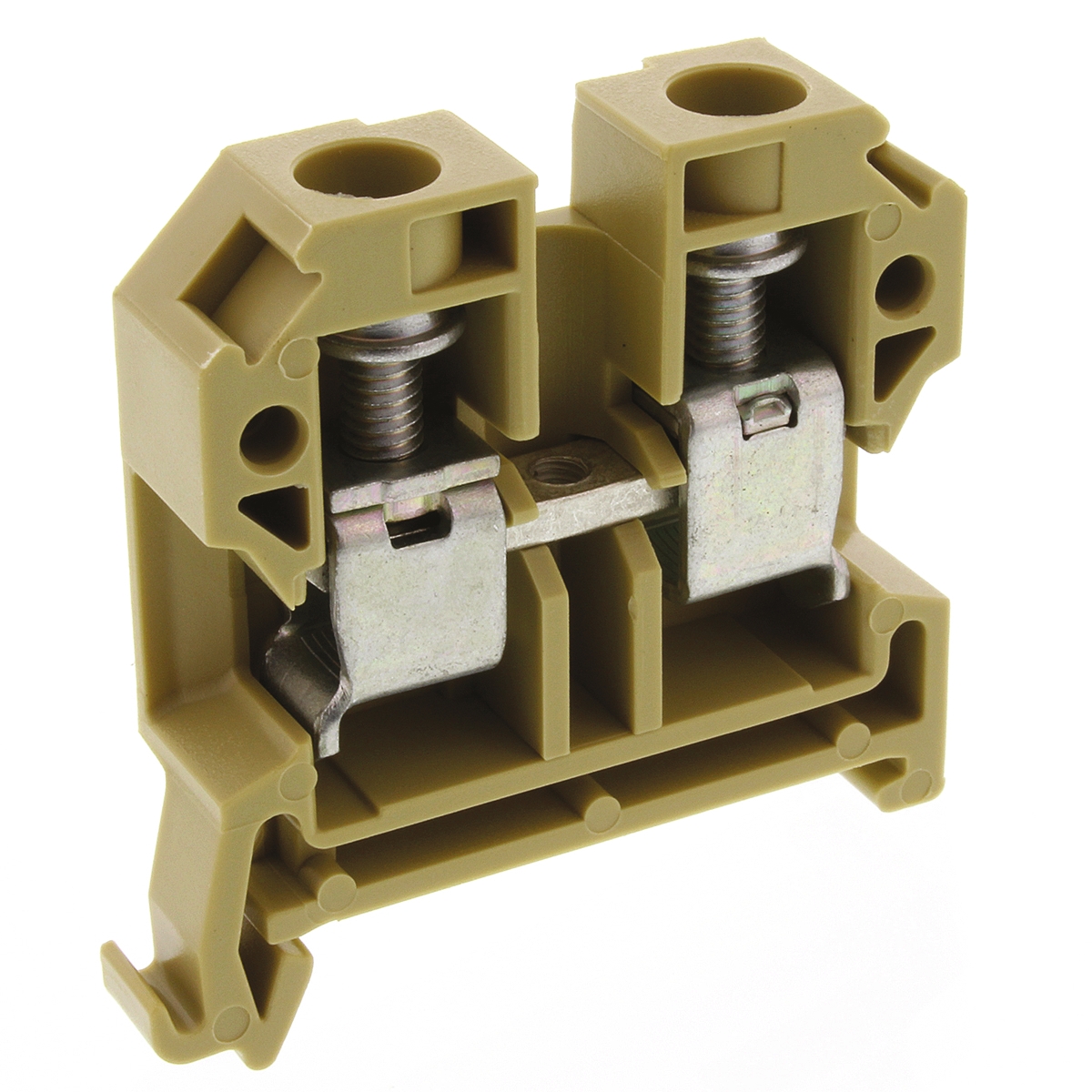

Weidmuller Feed-Through Terminal Block, 76A Current Rating, Screw Connection Type - SAK Series - 0443760000
Put an end to complicated conductor connections with this feed-through terminal block from Weidmuller. It accommodates wires that range in size from 14 to 6AWG, making it a flexible option. An opening on the right side grants easy access for maintenance without the need to remove it, saving you time and effort. Thanks to its broad operating temperature range between -50°C and +100°C, this component can take the heat in demanding industrial environments.
Features & Benefits
• Compact external dimensions of 45 (H) x 10 (W) x 51.5mm (D) to fit into small spaces
• Rated impulse withstand voltage of 8kV to stand up to current surges
• Durable PA66 body for resistance to impact and heat
• Current rating of 76A for compatibility with heavy-duty equipment
Applications
• Building control systems
• Construction sites
• Oil and gas industry
• Packaging facilities
How do I mount this terminal block?
For speedy, tool-free installation, simply snap this terminal block onto a DIN rail.
How many connections does this terminal block have?
This single-level terminal block features two clamping points, so you can set up two connections.
