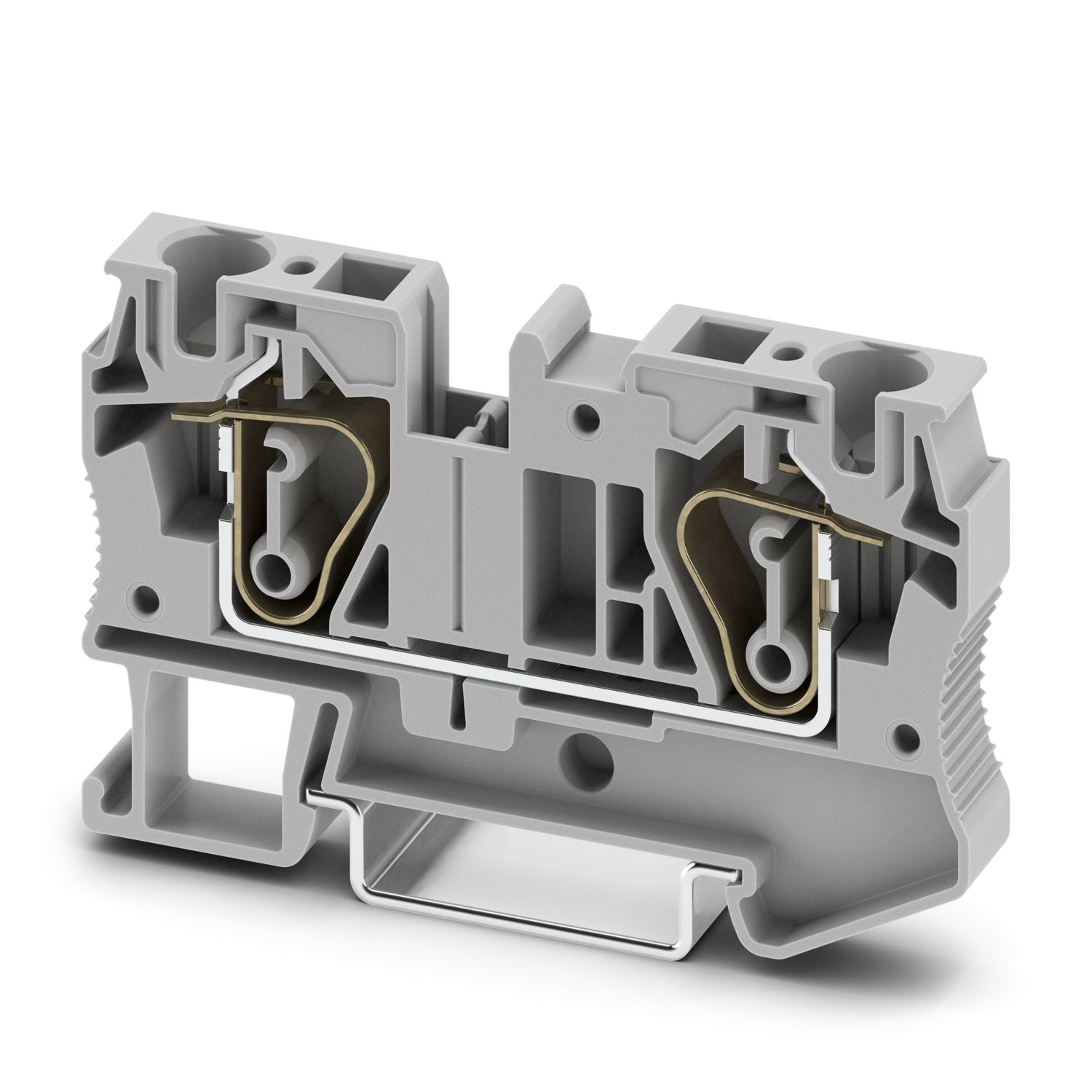

Phoenix Contact ST 6 Series Feed Through Terminal Block, 41A Current Rating, 1000V Voltage Rating - 3031487
This feed through terminal block facilitates efficient electrical connections in various automation, electrical, and mechanical applications. Its compact grey design accommodates cable sizes from 0.2mm² to 10mm², with a maximum voltage rating of 1000V and current rating of 41A. Compliant with IEC 60947-7-1 standards, this terminal block is suitable for operation in diverse environments, including low temperatures down to -60°C.
Features & Benefits
• Compact design optimises space in wiring applications
• Front connection enhances installation ease
• High current rating of up to 41A
• Compatible with conductors fitted with ferrules and collars
• Complies with IEC 60947-7-1 standards
• Suitable for railway and process industry applications
Applications
• Used in machine building and plant engineering
• Well-suited for the railway industry
• Effective for low-temperature electrical installations
• Ideal for testing and distribution
• Suitable for automation systems requiring compact solutions
Is it suitable for temperatures as low as -60°C?
Yes, it operates effectively within a temperature range of -60°C to +110°C.
Can it accommodate different wire gauges?
It accepts wire sizes ranging from 24AWG to 10AWG.
Will it maintain performance under high voltage?
It is rated to perform safely at voltages up to 1000V.
Is it easy to install in tight spaces?
The compact design and front connection facilitate installation in confined areas.
Does it comply with industry standards?
Yes, it meets the requirements of IEC 60947-7-1 for safety and performance.
