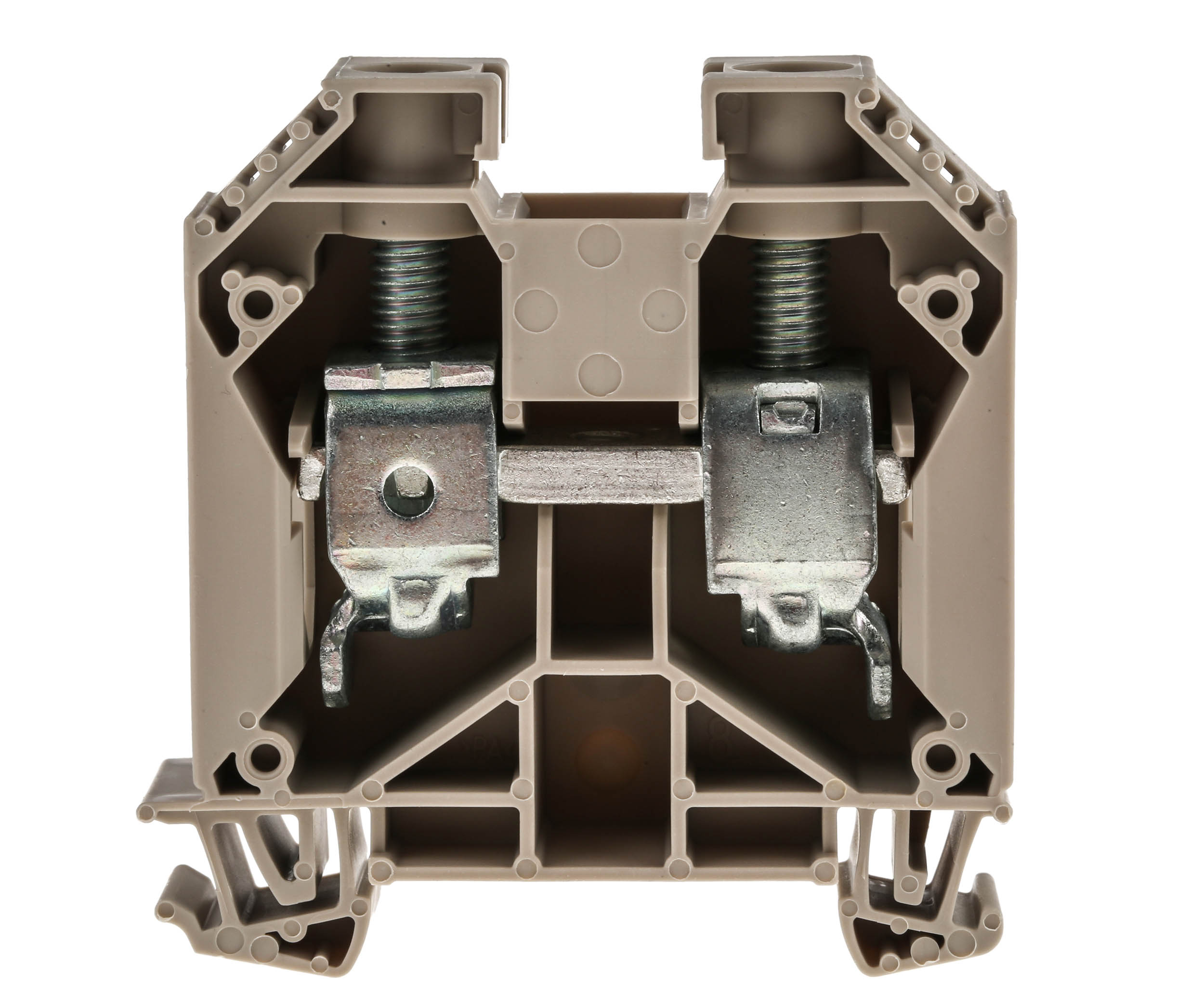

Weidmuller Feed-Through Terminal Block, Screw Terminals, 125A Current Rating - WDU Series - 1020500000
Keen to add extra connections to your industrial system? This Weidmuller terminal block uses a simple feed-through method, so it quickly accepts your conductors to help you speed through wiring tasks. Thanks to its current rating of 125A, this unit packs a punch in high-power applications. Its screw terminals protect conductors against movement to prevent accidental disconnection in shaky situations. As it has an open right-side panel, you get direct access to the block's wiring for easy adjustments, even when it's mounted.
Features & Benefits
• Wemid body provides effective insulation for enhanced electrical safety
• Accepts wires ranging in size from 12 to 2AWG for broad compatibility
• Compact body measurements of 60 (H) x 16 (W) x 62.5mm (D) for a handy fit in busy systems
• Wide operating temperature range of -50°C to +120°C for use in harsh environments
Applications
• Manufacturing industry
• Packing plants
• Renewable energy installations
How do I mount this product into my system?
This unit snaps into place on a standard DIN rail, so you can install it in a jiffy in your existing control cabinets.
