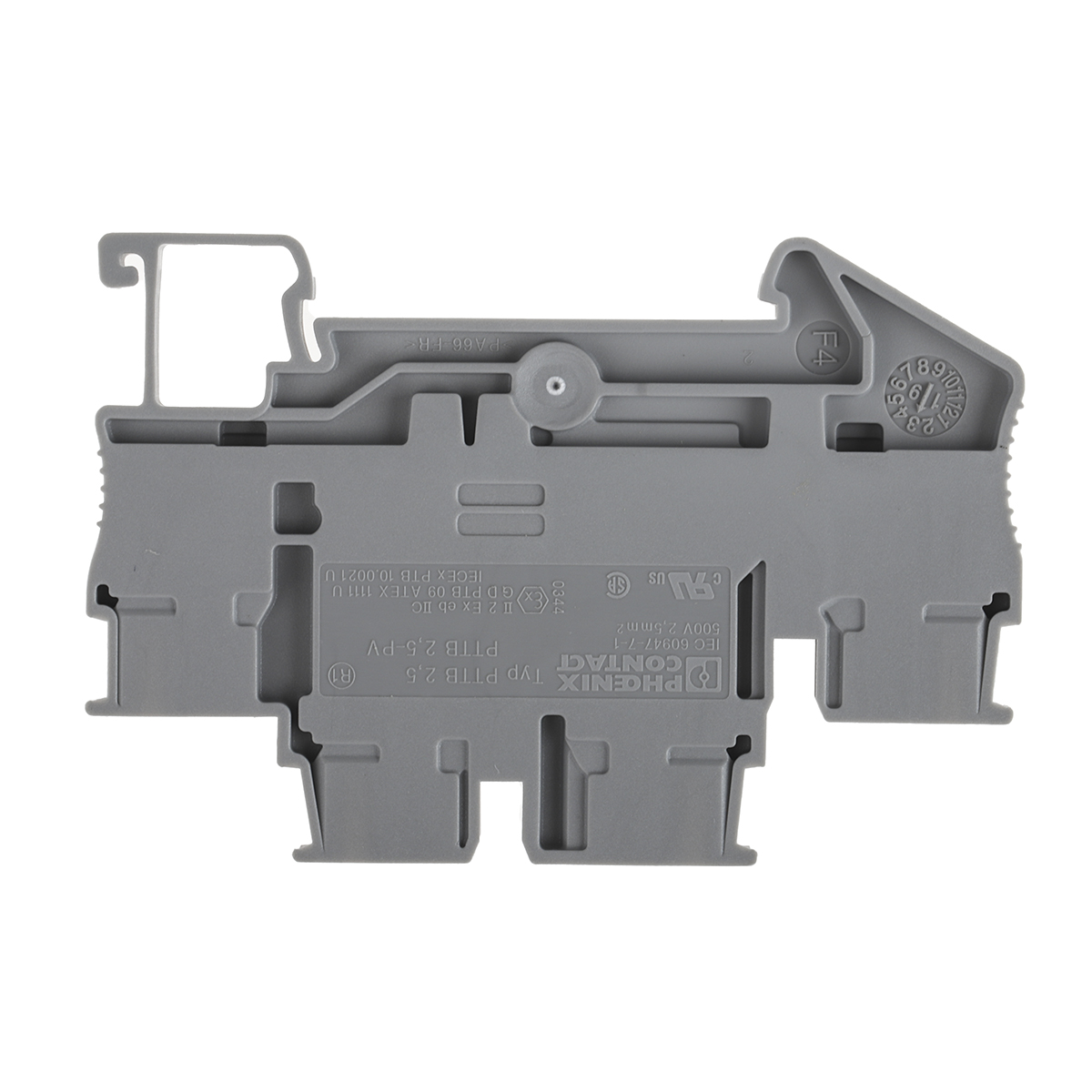

Phoenix Contact Double-Level Terminal Block, Push-In Connection Method, 22A Current Rating - PTTB 2,5 - 3210567
Snap extra connectivity into your setup with this double-level terminal block from Phoenix Contact. It has terminals spread across two levels, which cuts out wiring clutter to keep your cabinet tidy. Fitting the device into a cabinet is done in no time, thanks to its speedy rail mounting method. There's no need to break out the toolbox during installation, as the strip's push-in ports secure conductors in place without special tools.
Thanks to the block's open side panel, getting hands-on with your system's connections is no trouble. It accepts wires sized between 0.14 and 4mm², meaning it's widely compatible with standard conductors. Resistance to hazardous loads up to 6kV ensures sudden voltage surges won't trip it up.
Thanks to dimensions of 68 (L) x 5.2 (W) x 45.8mm (H), this block easily slides into a busy control cabinet. Hard-wearing PA housing is on hand to shrug off the knocks and scrapes you'd expect in heavy-duty settings.
Features & Benefits
• Maximum power loss of just 0.77W ensures it's energy-efficient
• Supplied in packs of 10, so you'll have plenty in stock
• Flammability rating of UL 94-V0 indicates that burning stops in 10 seconds
