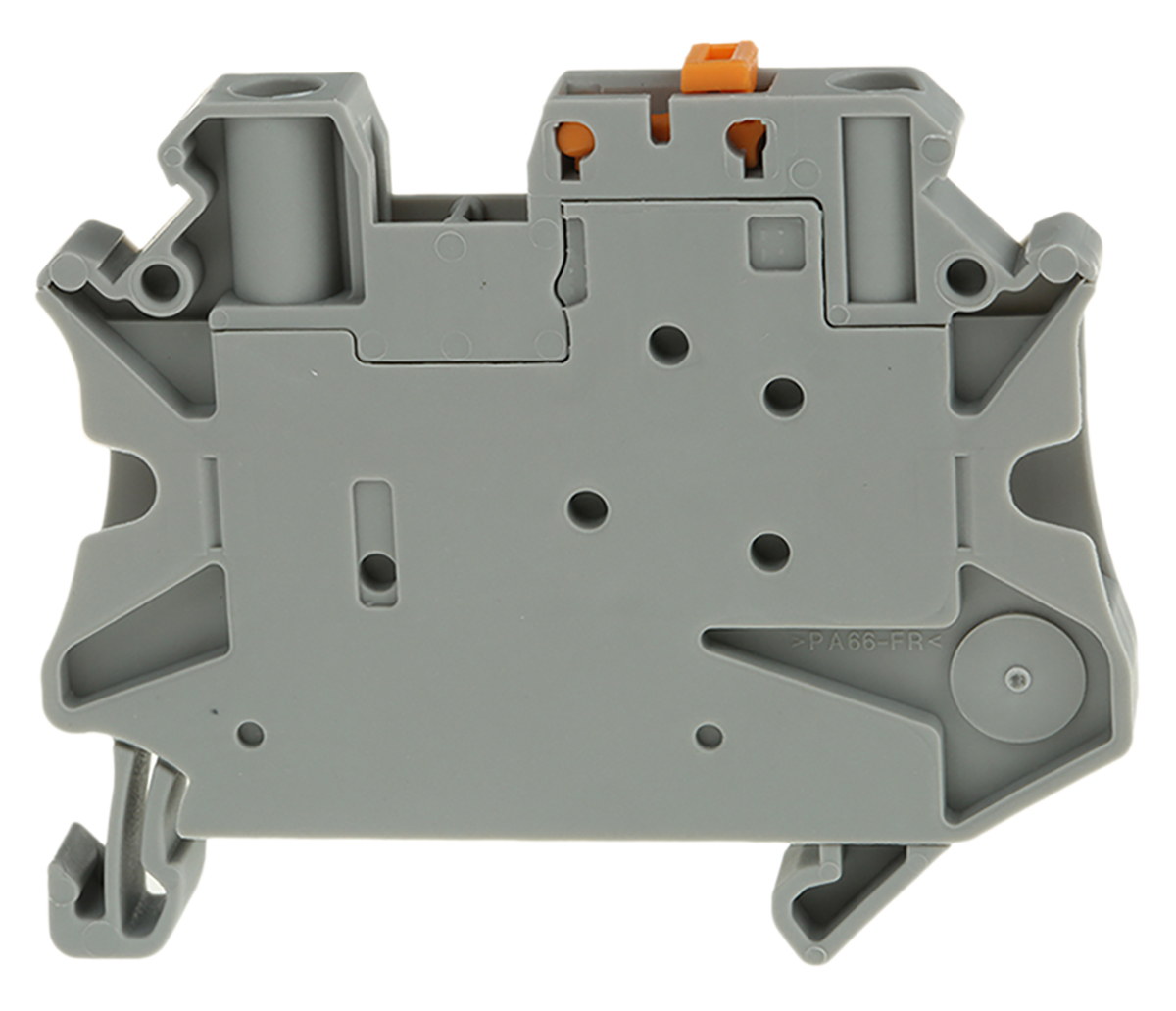

Phoenix Contact Knife Disconnect Terminal Block, Insulated, 26 to 10AWG - UT 4-MT - 3046139
Achieve a neat wire arrangement in your control cabinet using this knife disconnect terminal block from Phoenix Contact. It features a lever with a knife-edge design that lets you access the electric circuits without removing the wires. This makes it suitable for use in applications that need to be easily accessed for regular maintenance, like testing systems.
This single-level component features two connections so you can use it to maximise the wiring space in busy panels. For versatility, it handles wires ranging from size 26 to 10 AWG. PA insulation helps protect it from electric hazards and overheating, while a rated surge voltage of 6kV means you can rest assured the unit can withstand current overloads. Thanks to a wide operating temperature range between -60°C and +105°C, you can safely use this terminal block in challenging environments.
Features & Benefits
• Current rating of 20A for use in high-power systems
• UL 94 V0 flammability rating means the block stops burning in 10 seconds
• Finger and back-of-hand protected to prevent electric shocks
• Bending test rotation speed of 10rpm for flexible setup
