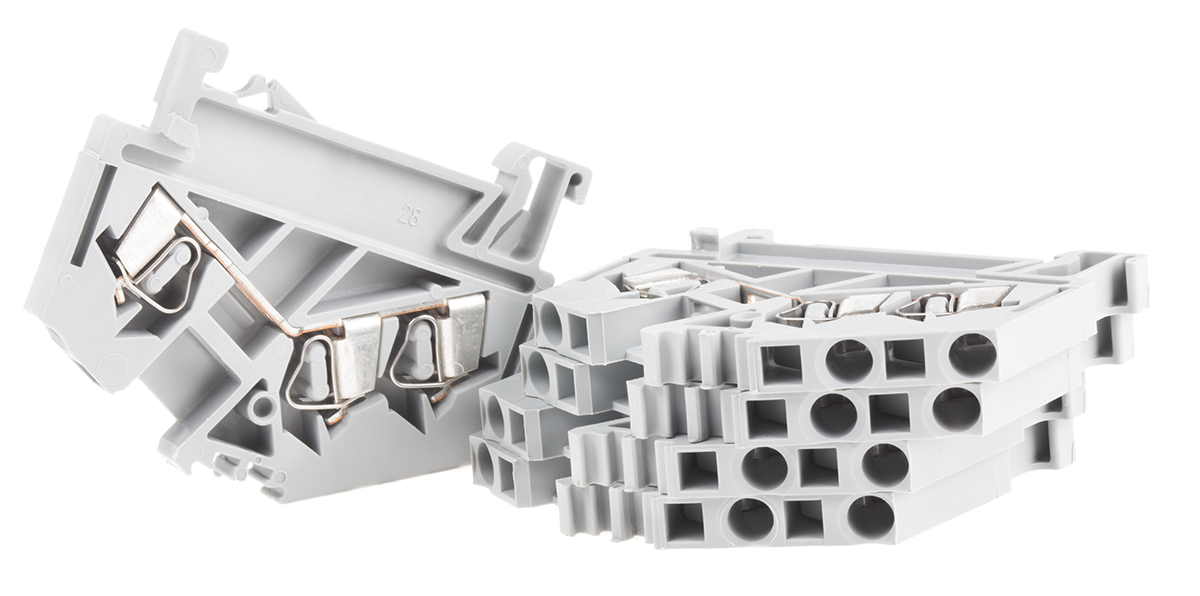

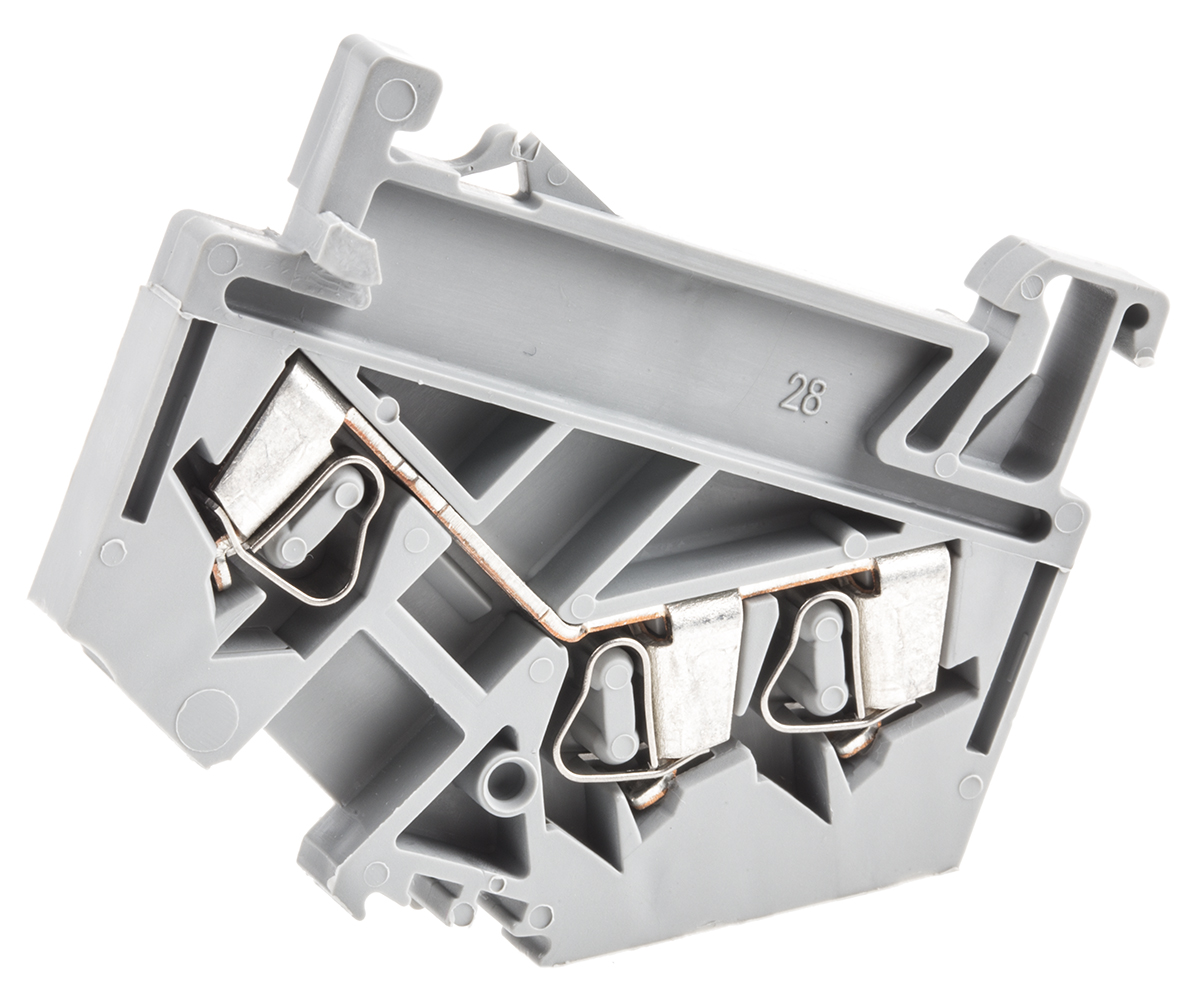

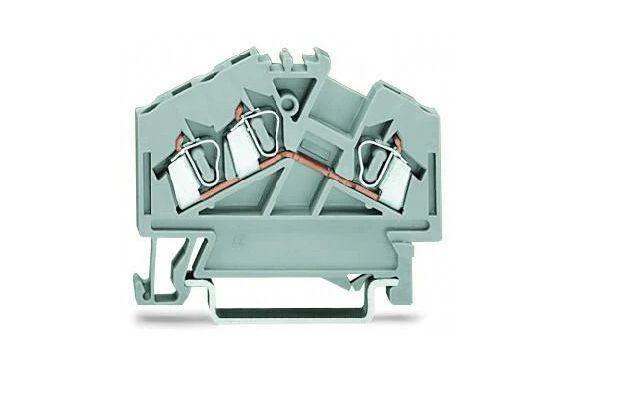

WAGO 280-641 280 Series Grey, 2.5mm², Single-Level, Cage Clamp Termination

280-641 WAGO 280 Series Grey, 2.5mm², Single-Level, Cage Clamp Termination
280-641
280-641
HT25974
brand logo

HT Part No. HT25974

Mfr. Part No. 280-641

Manufacturer: WAGO

Technical Documents: Block Terminal Data Sheet-77658453(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Colour Grey
Number of Levels Single
American Wire Gauge 28 → 12AWG
Series 280
Termination Method Cage Clamp
Cable CSA 2.5mm²
Fused No
Current Rating 24A
Voltage Rating 800 V
Pitch 5mm

More Information

Cage Clamp - 280 Series Feed-through connections for mounting on DIN-type rails. These conductor-through terminals feature cage clamp technology for ultra-quick connection. The terminal blocks are front-wired. Features and Benefits • 28 - 12 AWG
• 800 V measured voltage
• 8 k V measured shock voltage
• 24 A Current intensity
• Front entry wiring type
• 2 connection points
• T S35 DIN Rail mounting
• Intermediate or end plates are also available
