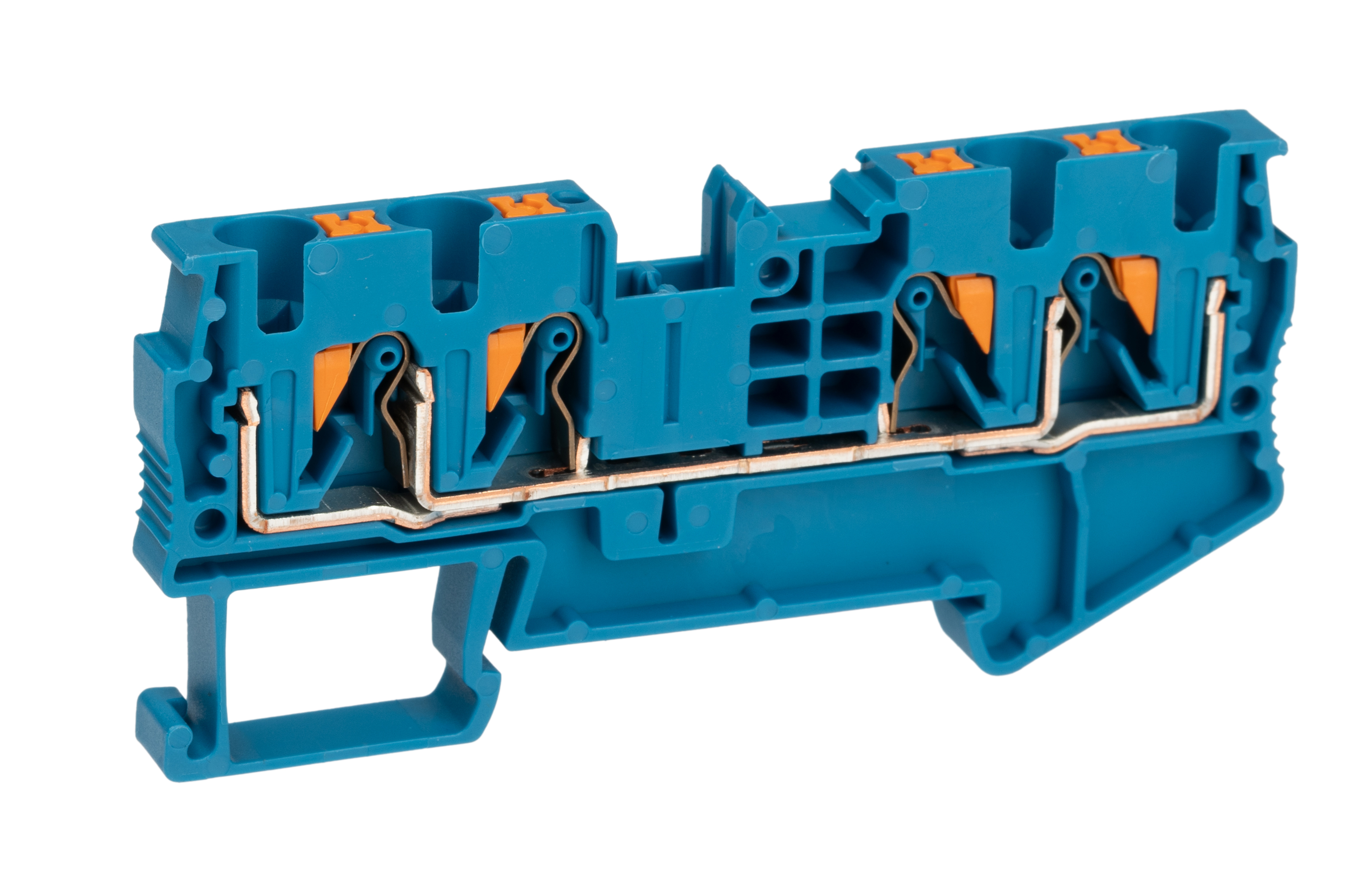

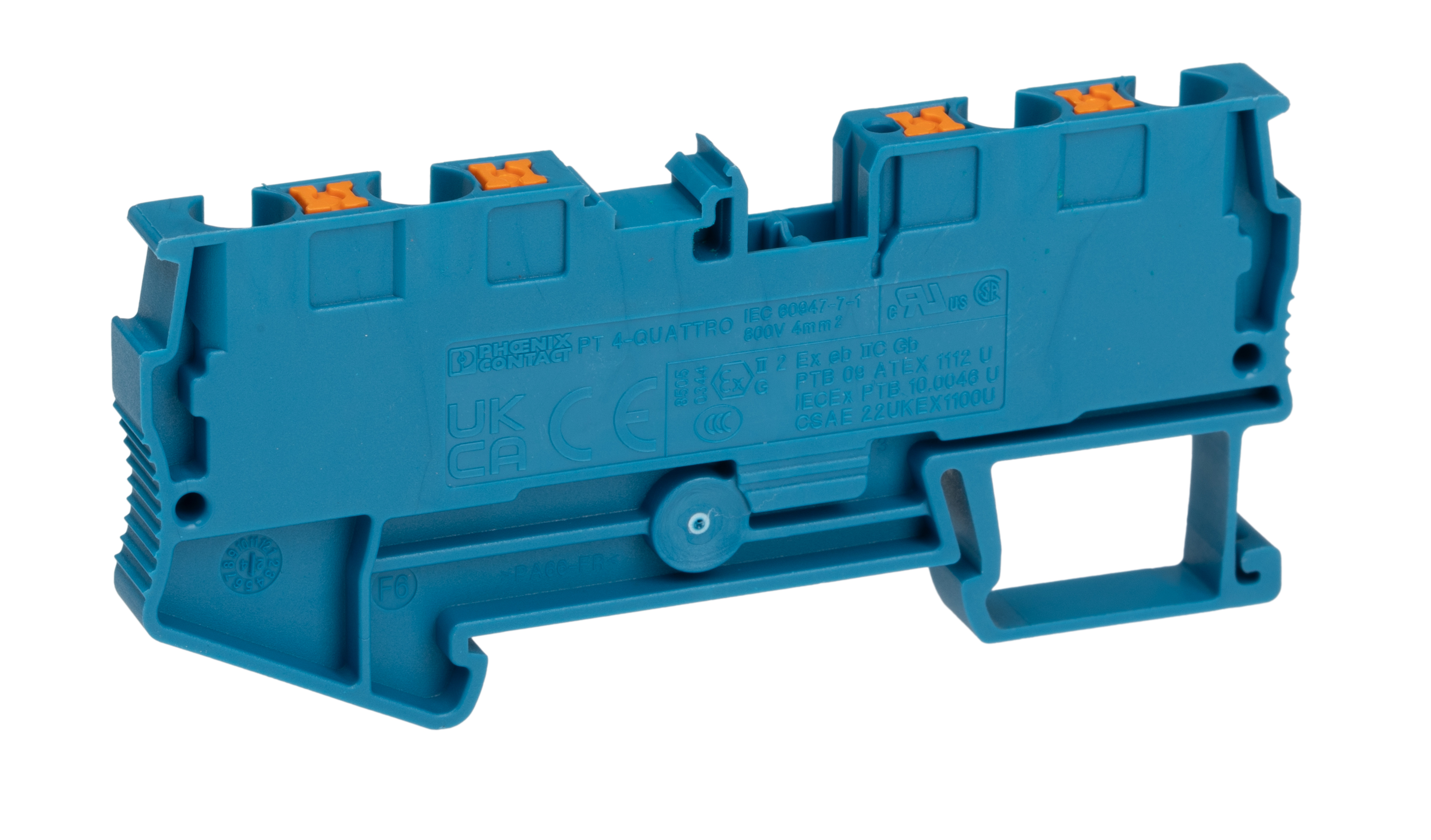

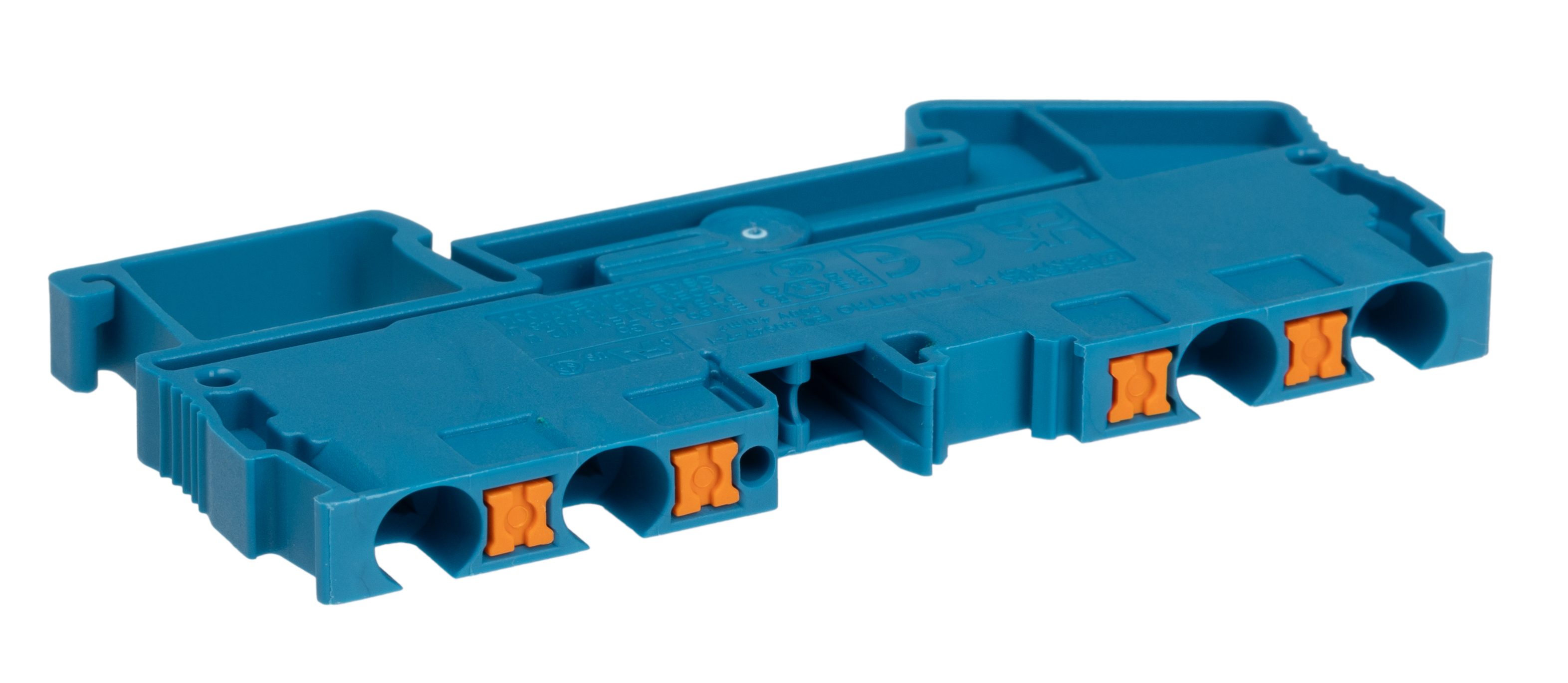

Phoenix Contact 3211802 PT 4-QUATTRO BU Series Blue, 0.2 → 6mm², Single-Level, Push In Termination, ATEX

3211802 Phoenix Contact PT 4-QUATTRO BU Series Blue, 0.2 → 6mm², Single-Level, Push In Termination, ATEX
3211802
3211802
HT26931
HT26931
DIN Rail Terminal Blocks
DIN Rail Terminal Blocks
3211802 Phoenix Contact PT 4-QUATTRO BU Series Blue, 0.2 → 6mm², Single-Level, Push In Termination, ATEXPhoenix Contact
brand logo

HT Part No. HT26931

Mfr. Part No. 3211802

Manufacturer: Phoenix Contact

Technical Documents: PT 4-QUATTRO BU Data Sheet-81a84846(datasheets) Les incontournables Phoenix Contact-3dd4153a(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 1.61
Units Per Unit Price
5 + £ 1.61
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Colour Blue
Number of Levels Single
American Wire Gauge 24 → 10AWG
Series PT 4-QUATTRO BU
Termination Method Push In
Cable CSA 0.2 → 6mm²
Current Rating 32A
Voltage Rating 800 V
Minimum Operating Temperature -60°C
Maximum Operating Temperature +110°C
Hazardous Area Certification ATEX
Standards Met CB, CSA, cULus, EAC
Model Number PT 4-QUATTRO BU
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=40353&DisplayLogo=False

More Information

Phoenix Contact PT 4-QUATTRO BU Series Feed Through Terminal Block, 24 to 10 AWG American Wire Gauge, 800V - 3211802 This feed-through terminal block is designed for electrical connection solutions in various industrial applications. Featuring a single-level design, it supports conductors from 0.2mm² to 6mm² and operates within a temperature range of -60°C to +110°C. The blue terminal block is compact, making it suitable for installations in confined spaces. Features & Benefits • Push-in connection enables tool-free wiring
• Supports up to 32A load for robust performance
• Rated for 800V, suitable for high voltage applications
• Compact design enhances efficiency in limited spaces
• ATEX certified for hazardous areas, ensuring safety
• Multiple connections simplify electrical routing Applications • Commonly used in railways and transport systems
• Ideal for machine building and plant engineering
• Utilised in process industry automation
• Fits NS 35/7.5 and NS 35/15 mounting types
• Suitable for wiring in restricted areas Is it suitable for outdoor use? It is rated for various environmental conditions, but installation should consider specific outdoor factors. Will it pass electrical safety tests? Yes, it has undergone rigorous testing and compliance checks.
