Schneider Electric Filter Fan, 230 V ac, AC Operation, 54m³/h Filtered, 170m³/h Unimpeded, IP33, 120 x 120mm

nsycvf54m230mm2 Schneider Electric Filter Fan, 230 V ac, AC Operation, 54m³/h Filtered, 170m³/h Unimpeded, IP33, 120 x 120mm
NSYCVF54M230MM2
NSYCVF54M230MM2
HT19056
HT19056
Filter Fans
Filter Fans
nsycvf54m230mm2 Schneider Electric Filter Fan, 230 V ac, AC Operation, 54m³/h Filtered, 170m³/h Unimpeded, IP33, 120 x 120mmSchneider Electric
nsycvf54m230mm2 Schneider Electric Filter Fan, 230 V ac, AC Operation, 54m³/h Filtered, 170m³/h Unimpeded, IP33, 120 x 120mmSchneider Electric
nsycvf54m230mm2 Schneider Electric Filter Fan, 230 V ac, AC Operation, 54m³/h Filtered, 170m³/h Unimpeded, IP33, 120 x 120mm
NSYCVF54M230MM2
NSYCVF54M230MM2
HT19056
HT19056
brand logo

HT Part No. HT19056

Mfr. Part No. NSYCVF54M230MM2

Manufacturer: Schneider Electric

Technical Documents: Datasheet-e4858b1c(datasheets) Product Environmental Profile-416837cd(datasheets) Steel wall-mounting enclosures-ec5fb9ce(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 63.55
Units Per Unit Price
1 + £ 63.55
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Unimpeded Air Flow 170m³/h
Filtered Air Flow 54m³/h
AC or DC Operation AC
Face Dimensions 120 x 120mm
Installation Depth 38mm
Supply Voltage 230 V ac
Face Height 120mm
Face Width 120mm
IP Rating IP33
Better World Verification Green Premium
Better World Product Yes

More Information

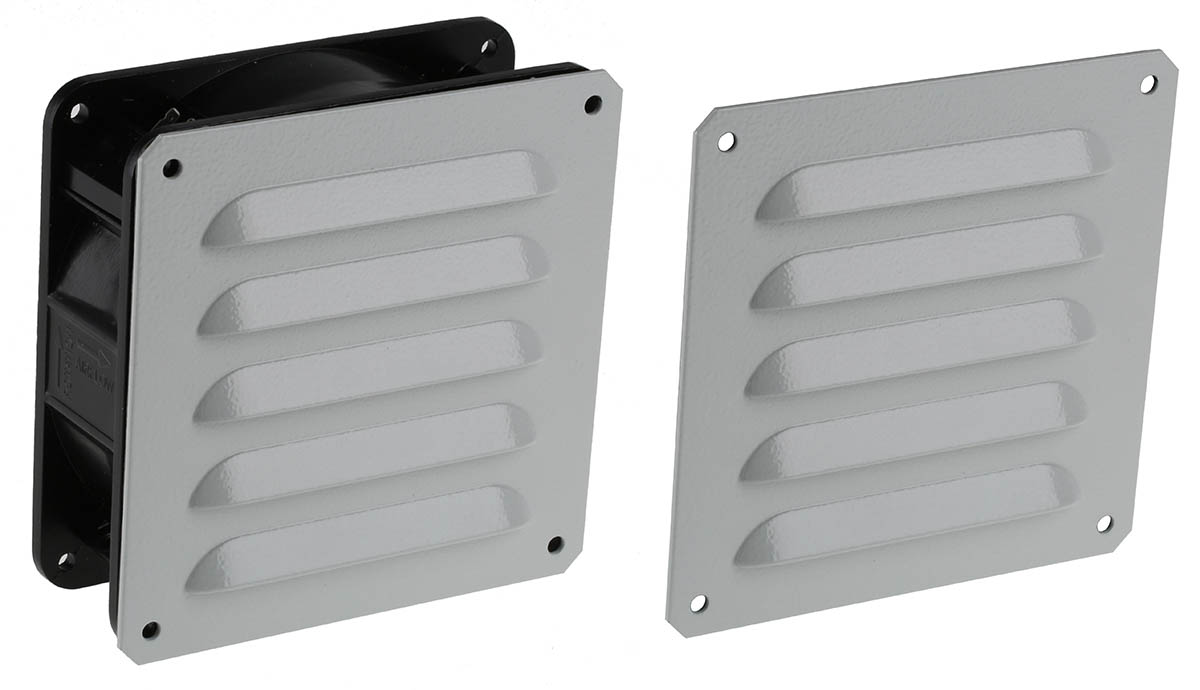

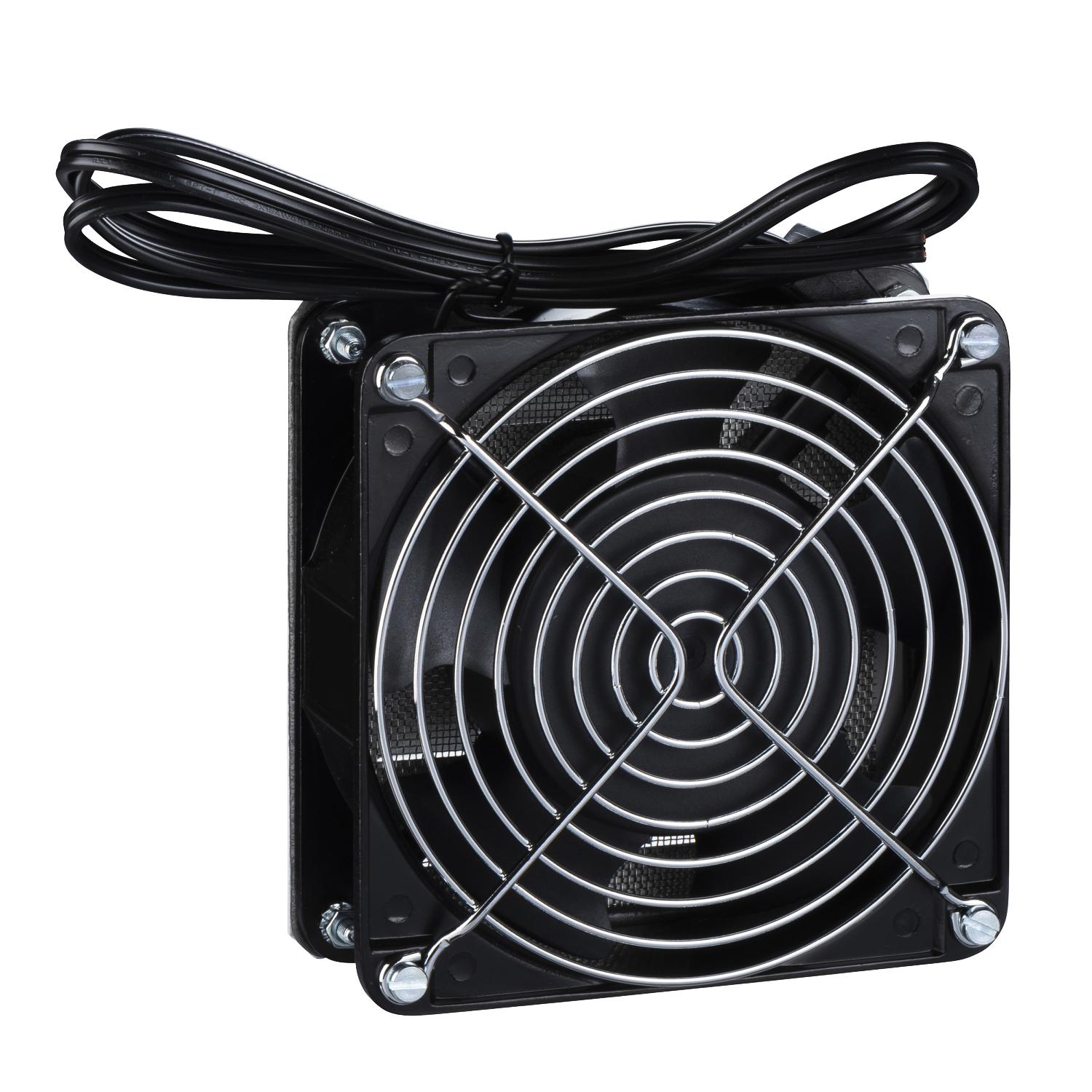

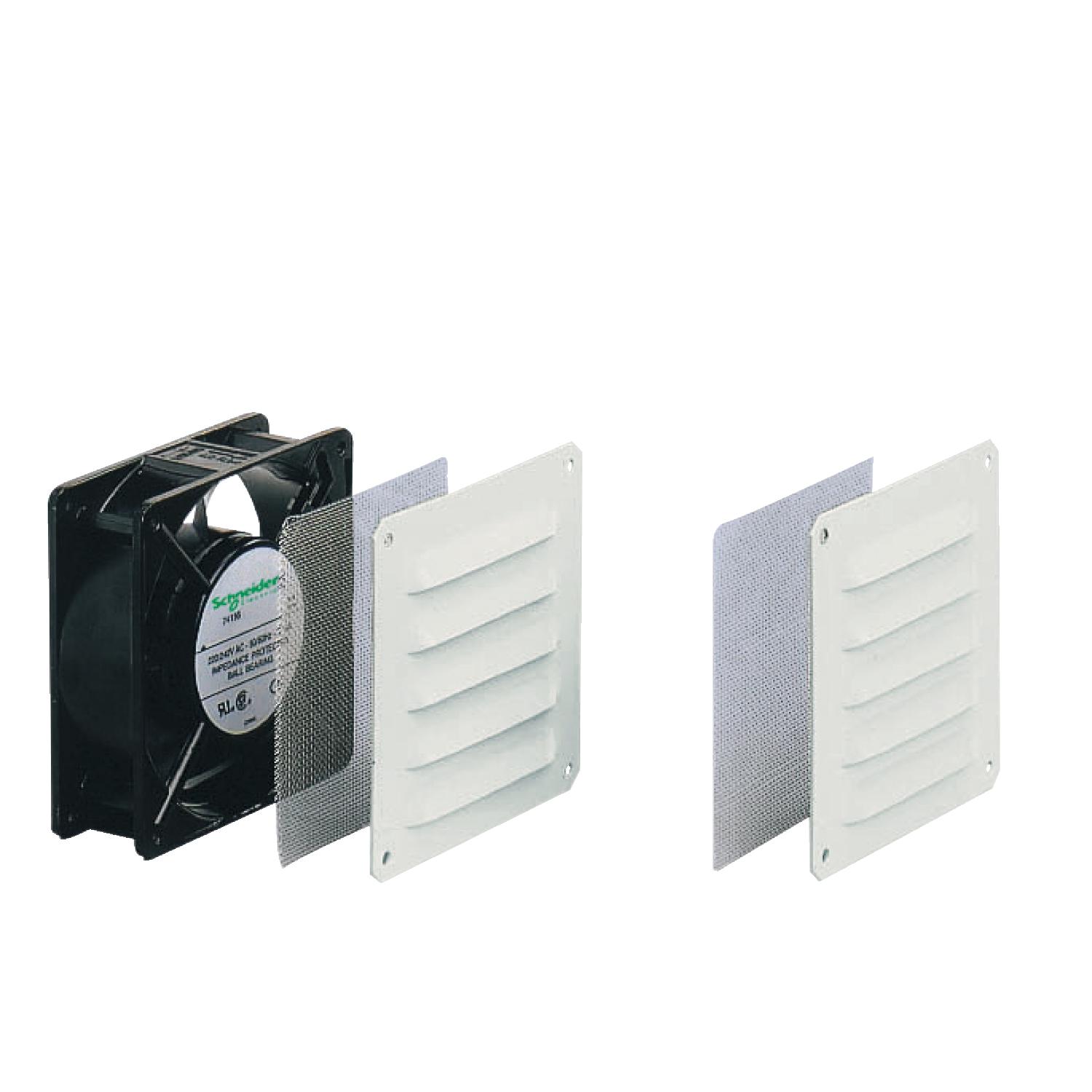

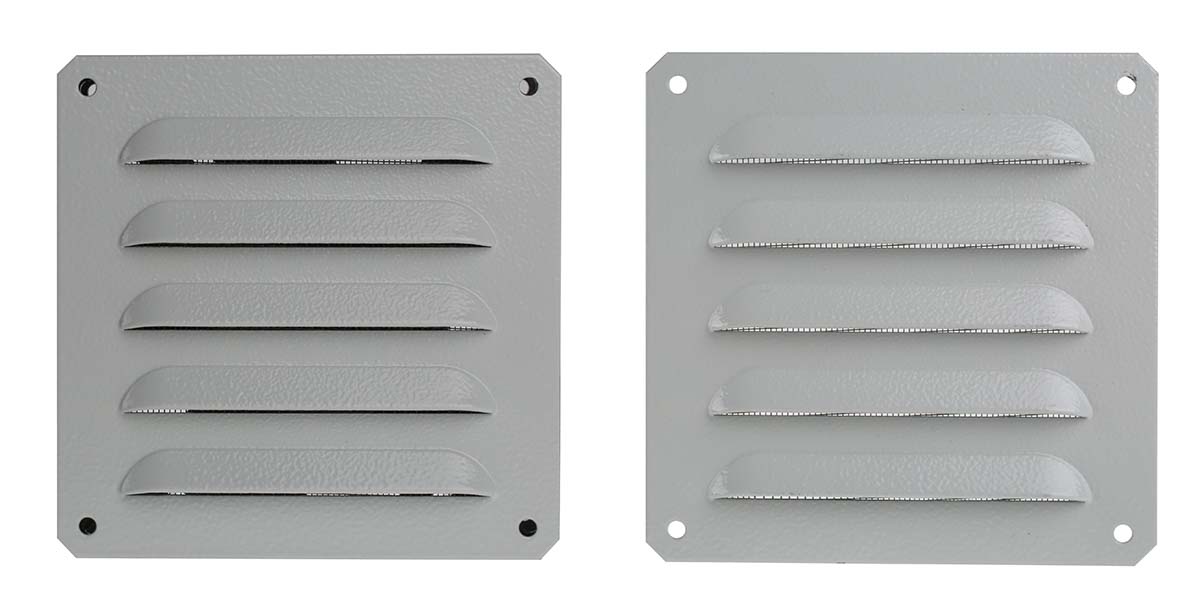

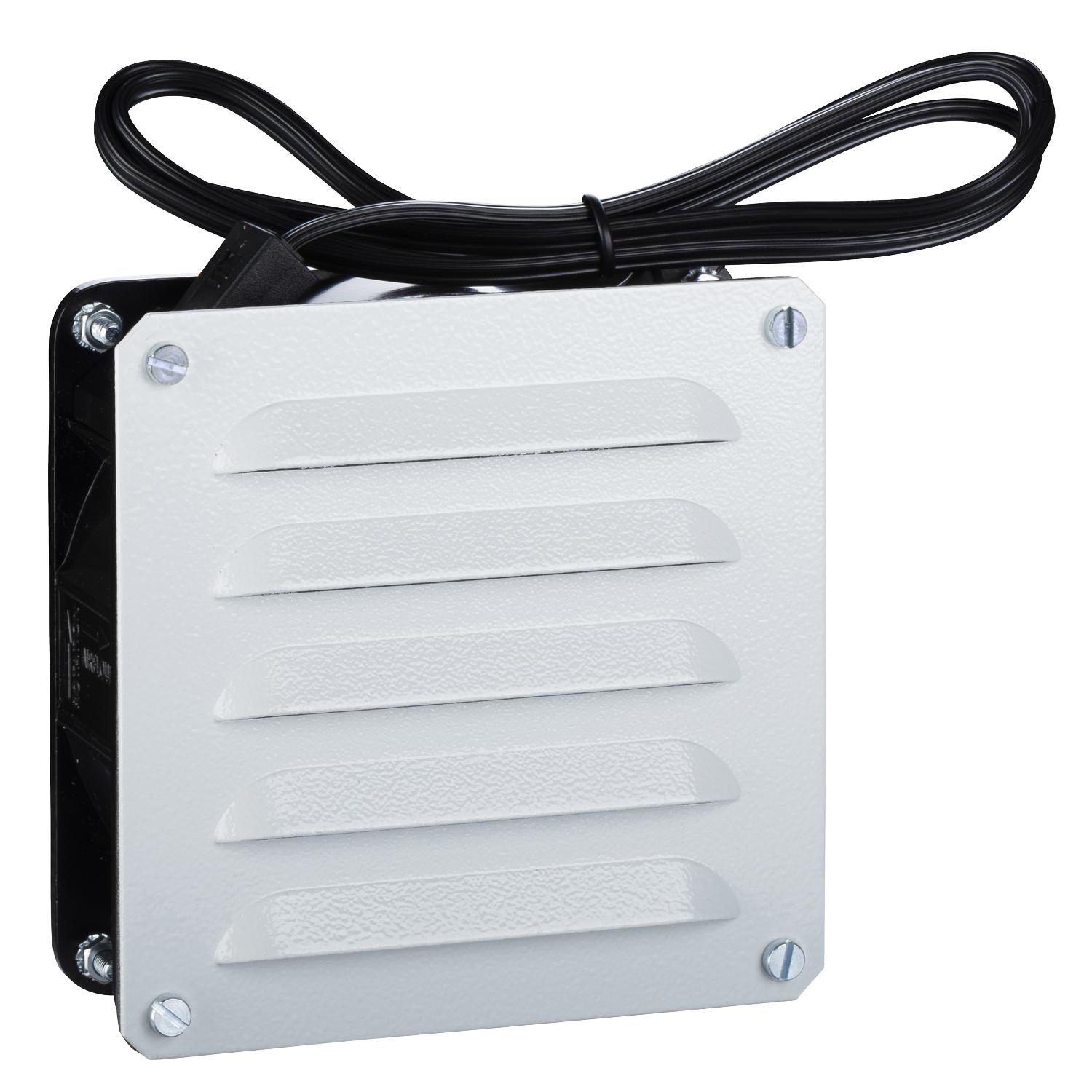

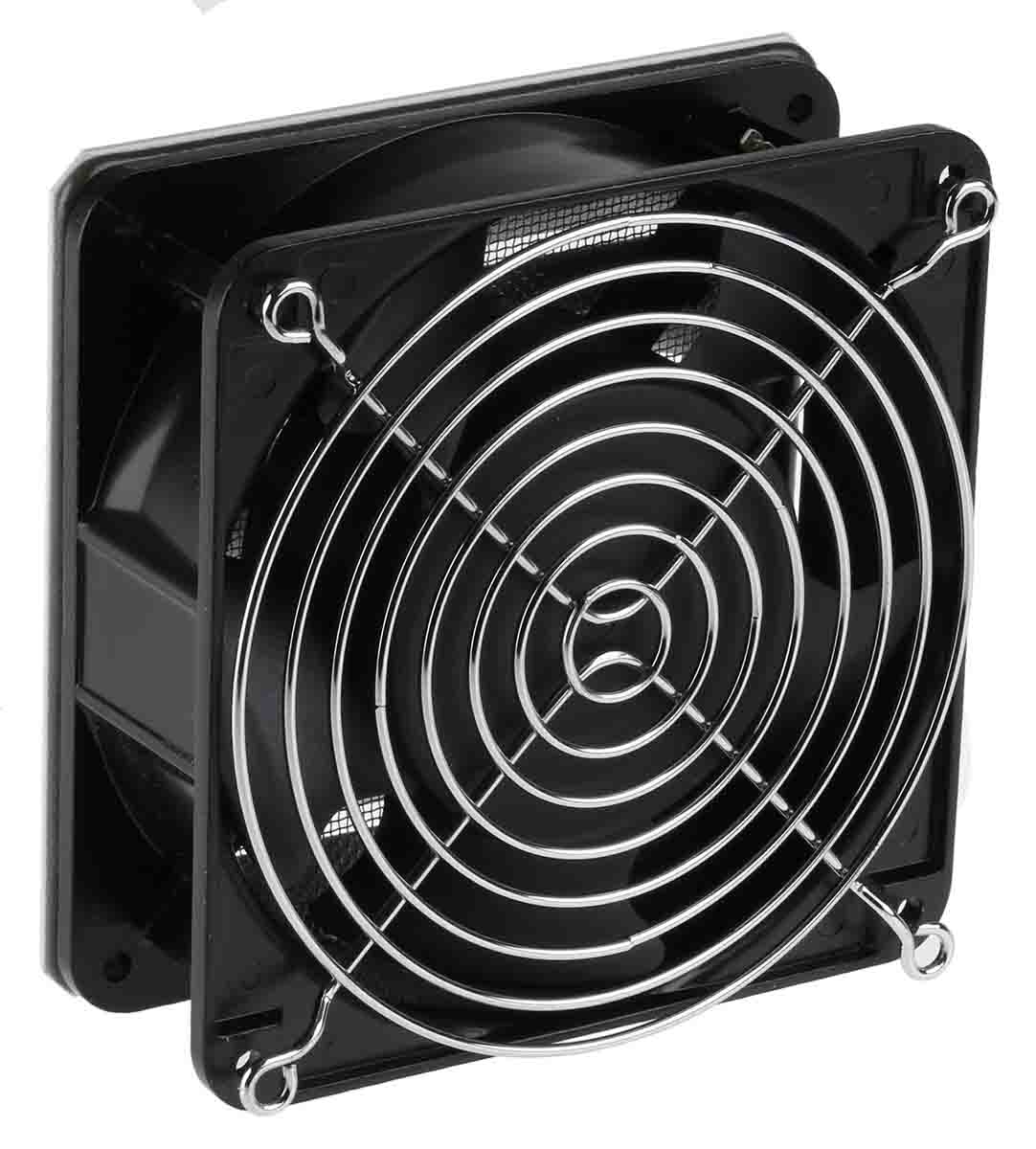

IP33 ventilation kit Ventilation kit comprising: - 1 ventilator 120 x 120 38 mm, 230 V - 50 / 60 Hz, free flow rate of 170 m³/h, IP33 / IK10,- 2 metal eyelets 120 x 120 mm, grey RAL 7032, - 2 anti-insect grills 115 x 98 mm, stainless steel wire, Ø 0.32 mm braided, 1.07 mm mesh, - 1 power cord, - screws. Assembly flow rate: 54 m³/h. Protection index IP33 and IK10.
