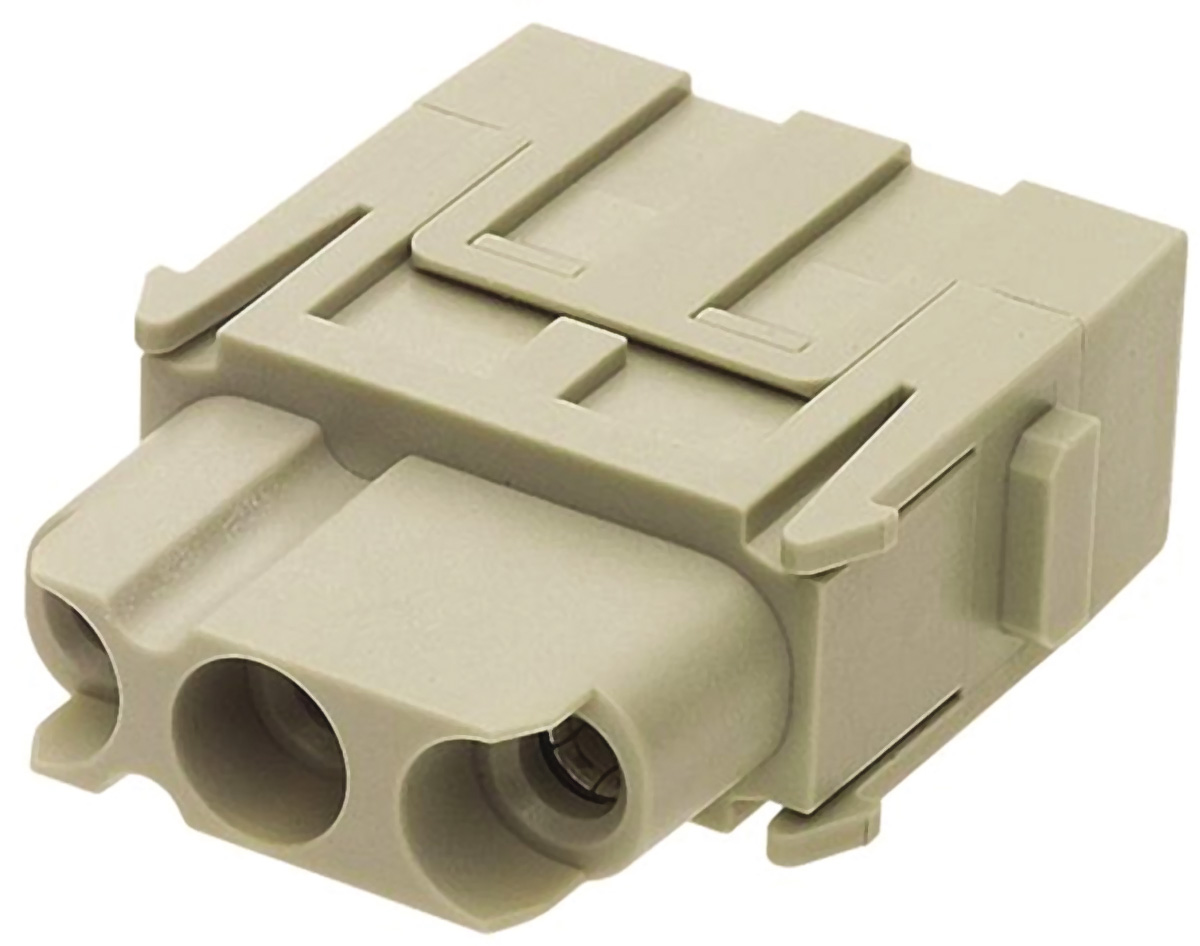

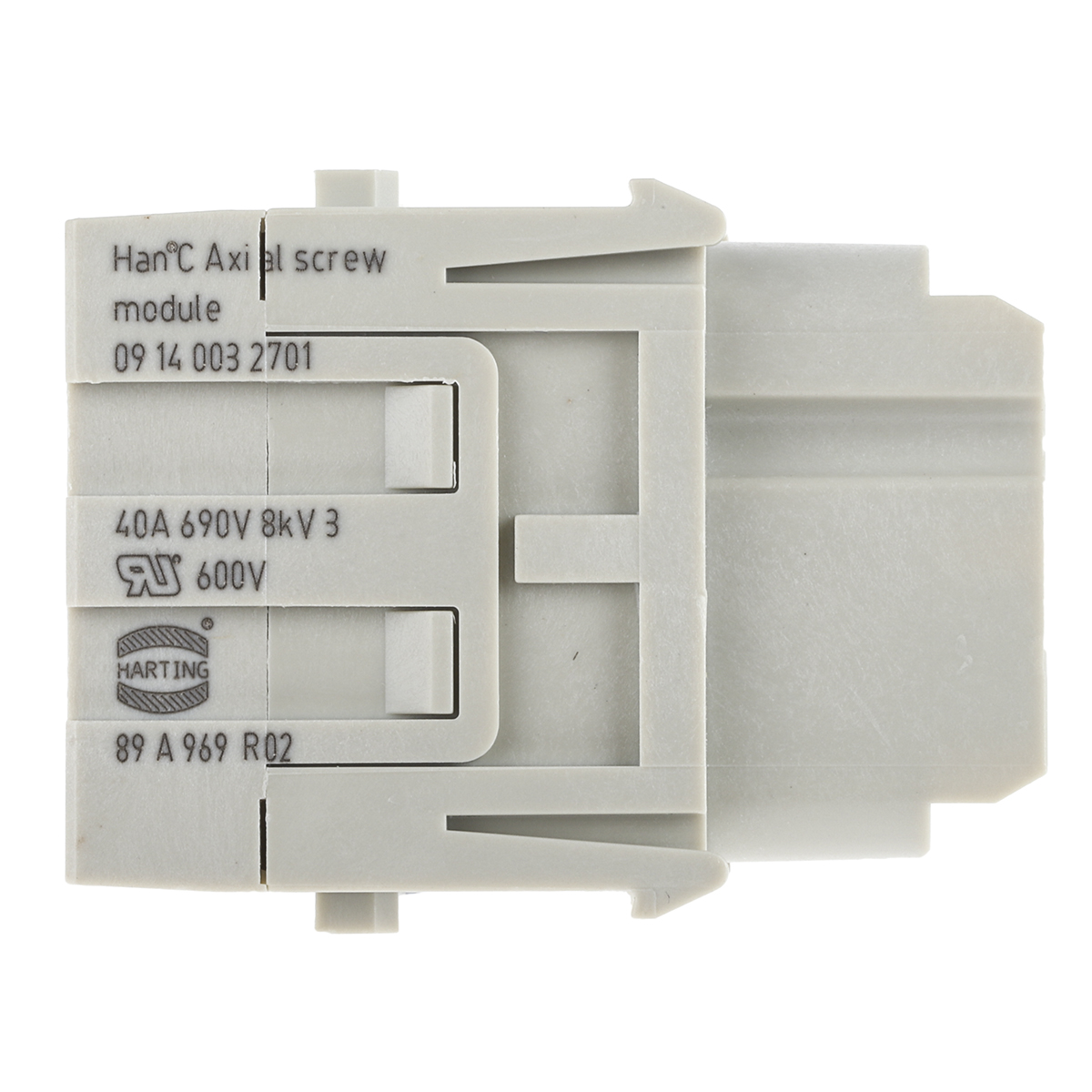

HARTING Heavy Duty Power Connector Module, 40A, Female, Han-Modular Series, 3 Contacts

09140032701 HARTING Heavy Duty Power Connector Module, 40A, Female, Han-Modular Series, 3 Contacts
09140032701
09140032701
HT19637
HT19637
Heavy Duty Power Connector Inserts & Modules
brand logo

HT Part No. HT19637

Mfr. Part No. 09140032701

Manufacturer: HARTING

Technical Documents: Han Modular-7d7ddf47(datasheets) Datasheet-77d93f64(datasheets)

62 - In Stock pcs
Price:
£ 18.02
Units Per Unit Price
1 + £ 18.02
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Current Rating 40A
Gender Female
Series Han-Modular
Type Axial Module
Termination Method Screw
Number of Rows 1
Voltage Rating 690 V
Number of Contacts 3
Series Number 0914
Body Orientation Straight
Contact Material Copper Alloy
Contact Plating Silver

More Information

Han C Axial Screw Modules Han C axial screw modules, part of the Han Modular range of connectors, offered in male and female variants, compatible with Han C modules with crimp termination. These Han connectors feature 3 contacts and are rated at 40A, 690V and feature a robust polycarbonate body. No special tooling is required for assembly of these connectors. "Rated at 40A 690V
Over 500 mating cycles
Operating temperature range -40 to +125° C"
