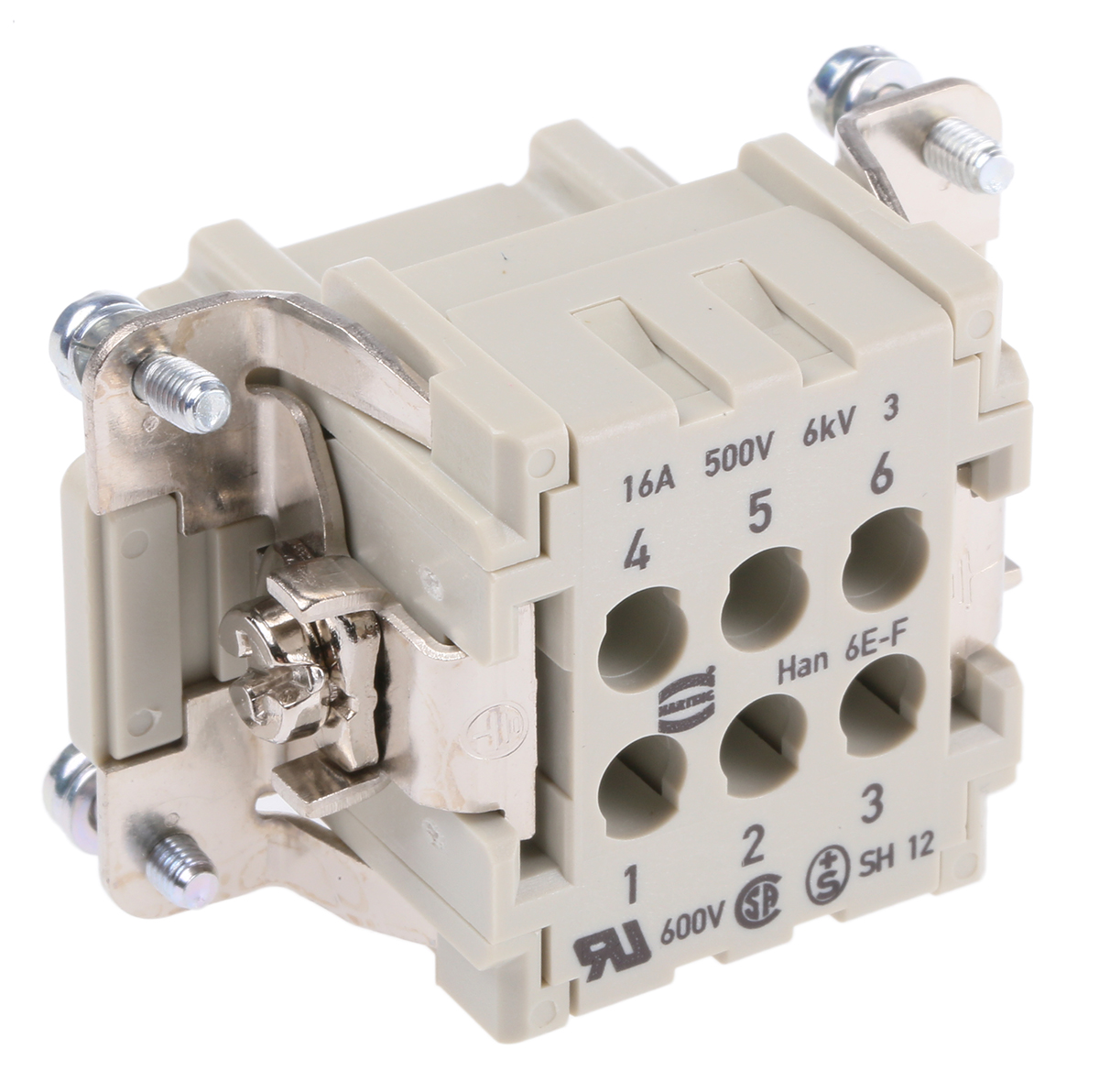

Han E Series size 16 A Connector Insert, Female, 6 Way, 16A, 500 V

09330062702 Han E Series size 16 A Connector Insert, Female, 6 Way, 16A, 500 V
09330062702
09330062702
HT23701
brand logo

HT Part No. HT23701

Mfr. Part No. 09330062702

Manufacturer: HARTING

Technical Documents: Han 6E / Han 6ES / Han 6ESS Technical Characteristics-4465f12a(datasheets) Dimensional Drawing 09 33 006 2702 Female insert, Han 6 E -02b7518a(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 10.35
Units Per Unit Price
1 - 9 £ 10.35
10 - 24 £ 9.94
25 + £ 9.52
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Number of Contacts 6
Type Connector Insert
Current Rating 16A
Series Han E
Manufacturer Size Code 16 A
Voltage Rating 500 V
Gender Female
Number of Rows 2
Body Orientation Straight
Pole Format 6P+E
CAD Drawing 3D CAD Model
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=13668&DisplayLogo=False

More Information

Han E® 16A Crimp Series Harting contact inserts have a wide range of uses. Inserts are selected according to the desired number of poles and voltage and current ratings. Current rating 16A
Working voltage 500V
6 to 24 poles
Crimp contacts must be ordered separately – option of 1.5mm² and 2.5mm²
