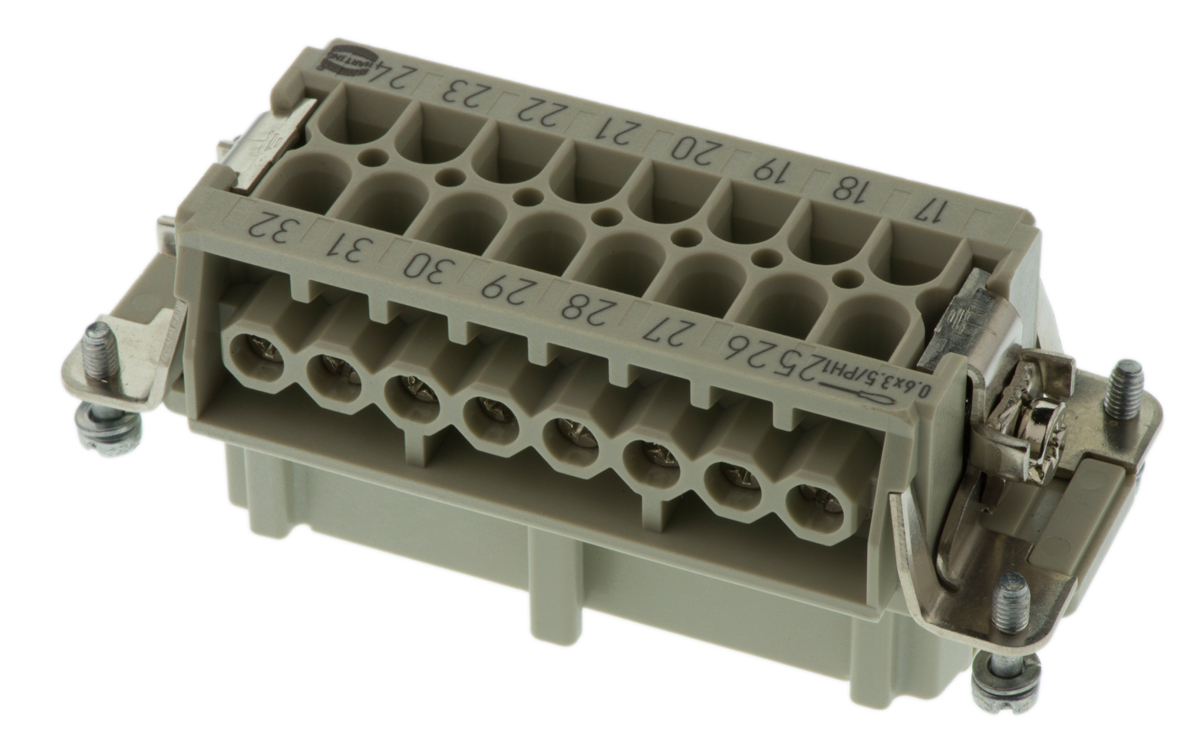

HARTING Heavy Duty Power Connector Insert, 16A, Female, Han E Series, 32 Contacts

09330162711 HARTING Heavy Duty Power Connector Insert, 16A, Female, Han E Series, 32 Contacts
09330162711
09330162711
HT23814
brand logo

HT Part No. HT23814

Mfr. Part No. 09330162711

Manufacturer: HARTING

Technical Documents: Han 32E / Han 32ES / Han 32ESS Technical Characteristics-de6fe43c(datasheets) Dimensional Drawing 09 33 016 2711 Female insert, Han 32 E -404d46fe(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 16.96
Units Per Unit Price
1 - 9 £ 16.96
10 - 24 £ 16.31
25 + £ 15.58
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Current Rating 16A
Gender Female
Series Han E
Type Connector Insert
Number of Rows 2
Voltage Rating 500 V
Number of Contacts 32
Body Orientation Straight
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=13681&DisplayLogo=False

More Information

Han E® Inserts • Poles: 6-48 (screw connection – wire csa 2.5mm² • The 32 and 48 pole versions require two contact inserts per connector half; a standard insert numbered ’1 to 16’ or ’1 to 24’ pole insert (m) or (f) together with one numbered ’17 to 32’ or numbered ’25 to 48’ insert (m) or (f). • These are identified in the price table - e.g. 32P + E (17 – 32)
