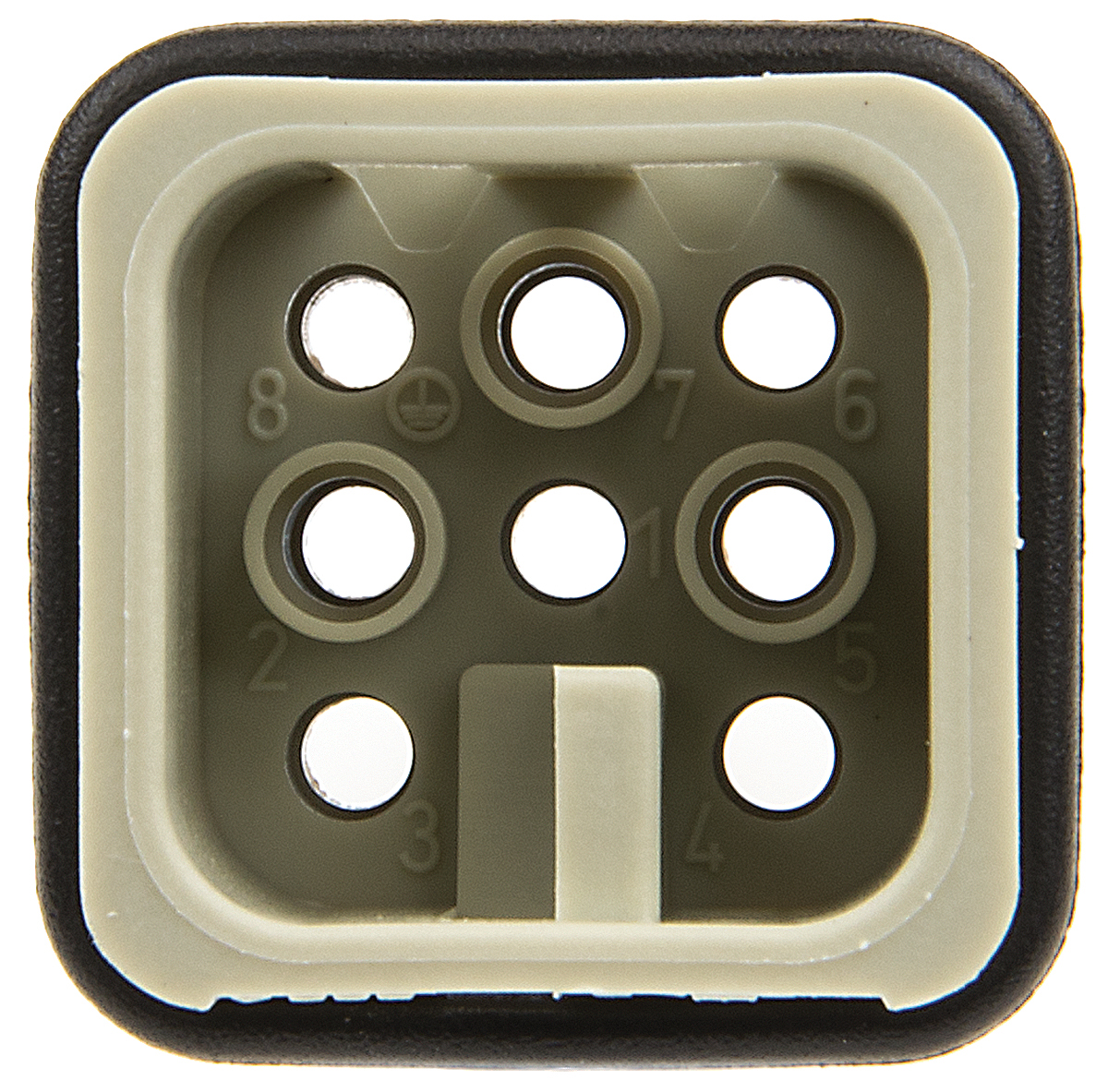

Han D® Inserts
• High density
• Poles: 7-64
• Crimp contacts must be ordered separately except stock nos. 700-8070 and 700-8089 as contacts are internal and fitted
• Contacts have option of sizes and plating
HT Part No. HT23823
Mfr. Part No. 09210073031
Manufacturer: HARTING
Technical Documents: Han 7D Features and Technical Characteristics-88371259(datasheets) Dimensional Drawing 09 21 007 3031 Male insert, Han 7 D -6e831a15(datasheets)
| Product Attributes | |
|---|---|
| Number of Contacts | 8 |
| Type | Connector Insert |
| Current Rating | 10A |
| Series | Han D |
| Voltage Rating | 250 V |
| Gender | Male |
| Number of Rows | 3 |
| Body Orientation | Straight |
| CAD Drawing | 3D CAD Model |
| 3D Model | https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=13581&DisplayLogo=False |
