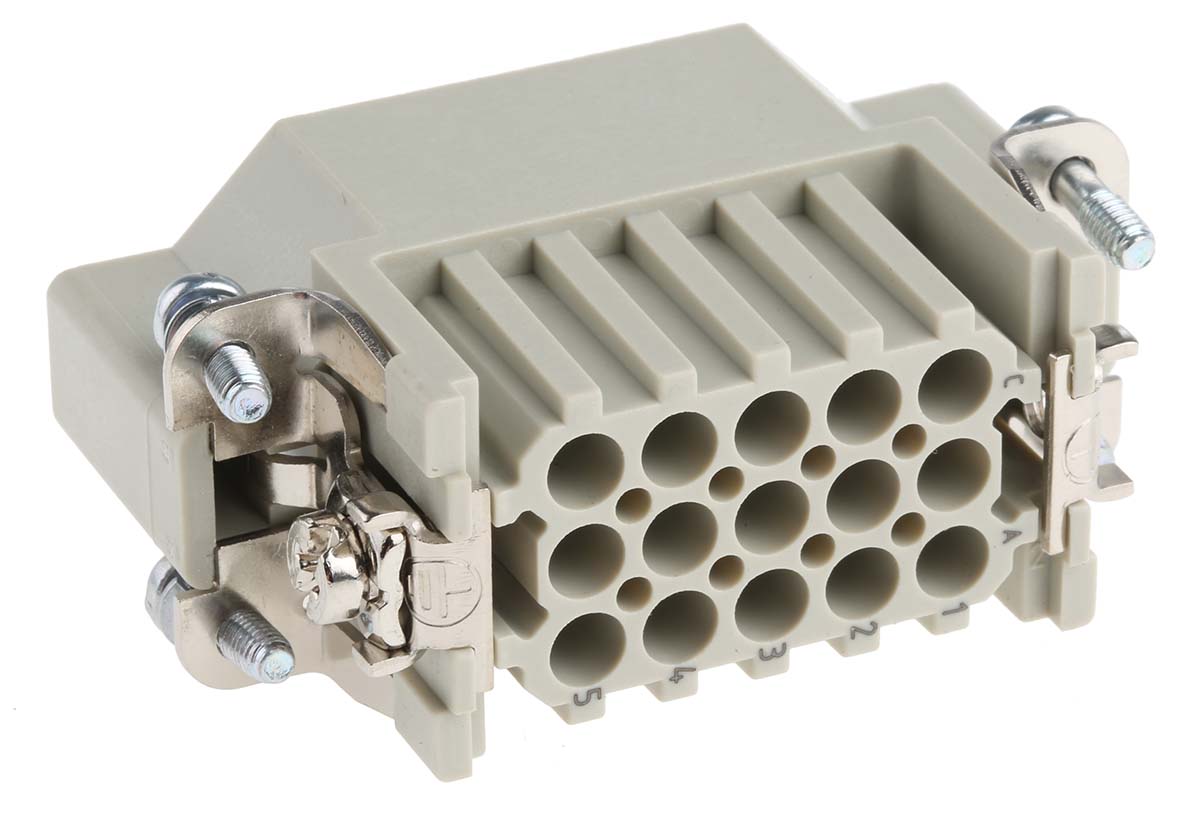

Han D® Inserts
• High density
• Poles: 7-64
• Crimp contacts must be ordered separately except stock nos. 700-8070 and 700-8089 as contacts are internal and fitted
• Contacts have option of sizes and plating
HT Part No. HT23824
Mfr. Part No. 09210153001
Manufacturer: HARTING
Technical Documents: Dimensional Drawing 09 21 015 3001 Male insert, Han 15 D -6aac6768(datasheets)
| Product Attributes | |
|---|---|
| Current Rating | 10A |
| Gender | Male |
| Series | Han D |
| Type | Connector Insert |
| Pole Format | 15P+E |
| Number of Rows | 3 |
| Voltage Rating | 250 V |
| Number of Contacts | 15 |
| Thread Size | M3 x 10 |
