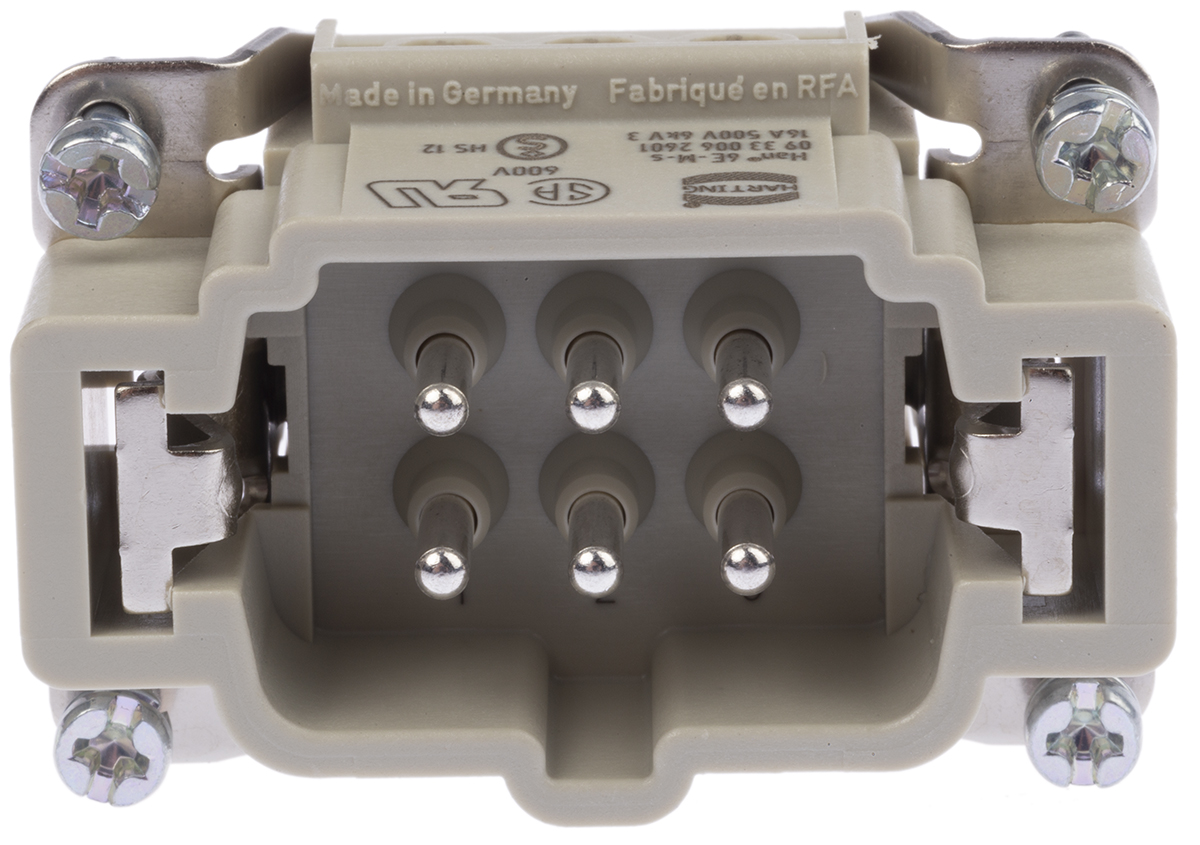

HARTING Heavy Duty Power Connector Insert, 16A, Male, Han E Series, 6 Contacts

09330062601 HARTING Heavy Duty Power Connector Insert, 16A, Male, Han E Series, 6 Contacts
09330062601
09330062601
HT23856
HT23856
Heavy Duty Power Connector Inserts & Modules
Heavy Duty Power Connector Inserts & Modules
09330062601 HARTING Heavy Duty Power Connector Insert, 16A, Male, Han E Series, 6 ContactsHARTING
brand logo

HT Part No. HT23856

Mfr. Part No. 09330062601

Manufacturer: HARTING

Technical Documents: Han 6E / Han 6ES / Han 6ESS Technical Characteristics-4465f12a(datasheets) Han 6E-M-s 09330062601 Datasheet-91d8c022(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Current Rating 16A
Gender Male
Series Han E
Type Connector Insert
Number of Rows 2
Voltage Rating 500 V
Number of Contacts 6
Body Orientation Straight
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=13665&DisplayLogo=False

More Information

Han E® Inserts • Poles: 6-48 (screw connection – wire csa 2.5mm² • The 32 and 48 pole versions require two contact inserts per connector half; a standard insert numbered ’1 to 16’ or ’1 to 24’ pole insert (m) or (f) together with one numbered ’17 to 32’ or numbered ’25 to 48’ insert (m) or (f). • These are identified in the price table - e.g. 32P + E (17 – 32)
