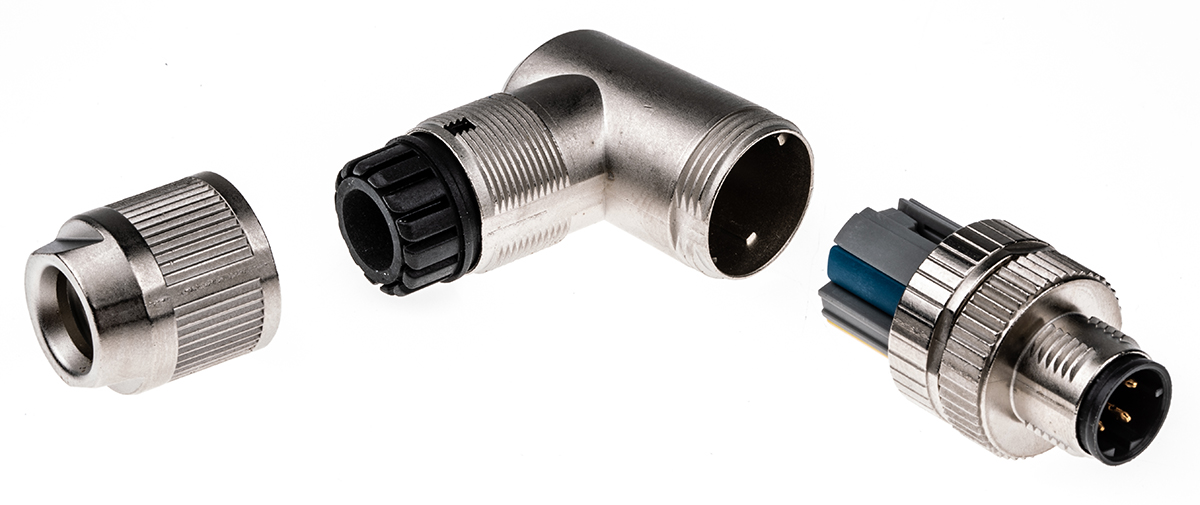

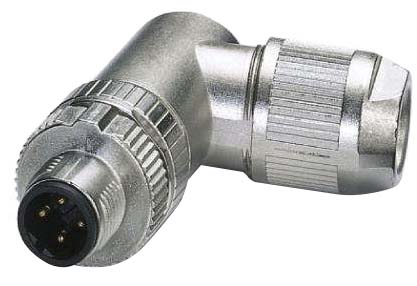

Phoenix Contact Cable Mount Circular Connector, 4 Contacts, M12 Connector - SACC-M12MRD-4PL SH PN - 1424684
Need to make safe and secure cable connections in more challenging environments? This PROFINET CAT5 connector from Phoenix Contact is designed for industrial applications and can withstand the toughest conditions. It resists interference, vibration and stress thanks to a solid die-cast zinc construction and effective shielding.
Installation is quick and easy with Phoenix Contact's SPEEDCON quick-locking method. Using the 'plug-and-turn' principle, it reduces the time it takes to link these M12 connectors by up to 90%. The patented spring-cage creates a high contact force for a vibration-resistant link and makes adding wires straightforward.
The copper contacts deliver excellent conductivity and the nickel-over-gold plating gives the connector effective resistance to corrosion and wear. The right-angled body orientation means it's easy to install in places where space is tight.
• Male contact gender
• Four contacts
• Current rating of 4 A
• Voltage rating of 48.0 V, 60.0 V
• D-Coded mating type
• Cable mounting type
• Push-in/screw termination method
• Operating temperature range of -40°C to +85°C
• Pole format of 4 P
• Shell size of 13
• IP65 and IP67 ingress protection rating – dust-tight, protected against water projected from a nozzle and against immersion for 30 minutes
Connector, PROFINET CAT5 (100 Mbps), 4-position, shielded, Plug angled M12 Screw locking, D-coded, Push-in connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm ... 8 mm
Safe use in the field, thanks to a high degree of protection
Flexible: connectors for on-site assembly
Save time, thanks to installation with SPEEDCON fast locking system
Spring-cage connection
Quick and easy installation, thanks to Push-in connection technology
Easy tool free wiring with the push-in connection
