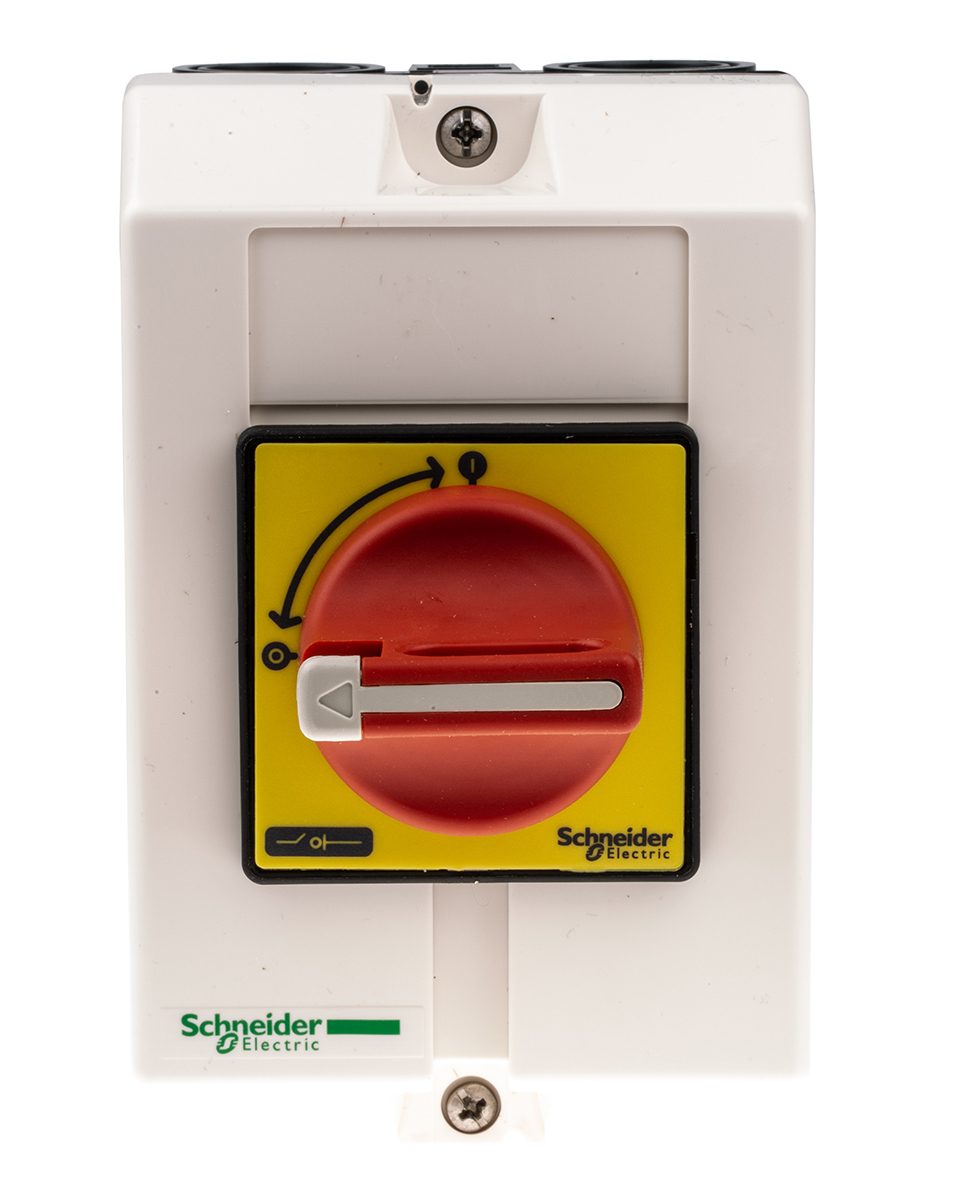

Schneider Electric VARIO Series Switch Disconnector, 25A Maximum Current, 690V AC Voltage Rating - VCF1GE
This enclosed switch disconnector is designed for reliable isolation in industrial power distribution applications. Featuring a compact design with a 3-pole configuration, it efficiently handles currents up to 25A. With an IP65 rating, it ensures protection against dust and water ingress, making it suitable for various environments. The dimensions of the device are 90mm in length, 146mm in width, and 131mm in depth.
Features & Benefits
• Surface mount configuration simplifies installation in tight spaces
• Accepts 1 to 3 padlocks for enhanced safety
• Resistance to harsh conditions with IP65 protection rating
• High voltage capability with a rated impulse withstand voltage of 8 kV
• Designed for high performance with a conventional thermal current of 25A
• Mechanical endurance of 100,000 cycles for long-lasting operation
Applications
• Used for emergency stopping in automated systems
• Ideal for electrical isolation in machinery control
• Utilised in environments requiring high protection against dust and moisture
• Perfect for safeguarding electrical components in industrial settings
What is the operational voltage rating for this device?
The operational voltage rating for such devices is 690 V AC, making it suitable for high voltage applications.
How many padlocks can be applied to this disconnector, and what is their size range?
It accommodates between 1 to 3 padlocks, specifically ranging from 4 to 8 mm in size.
What is the maximum breaking capacity for this switch disconnector?
It boasts a breaking capacity of 250A at 400 V, ensuring effective disconnection under load.
What are the environmental operating limits for this equipment?
This unit operates effectively within ambient temperatures ranging from -20 °C to +50 °C.
