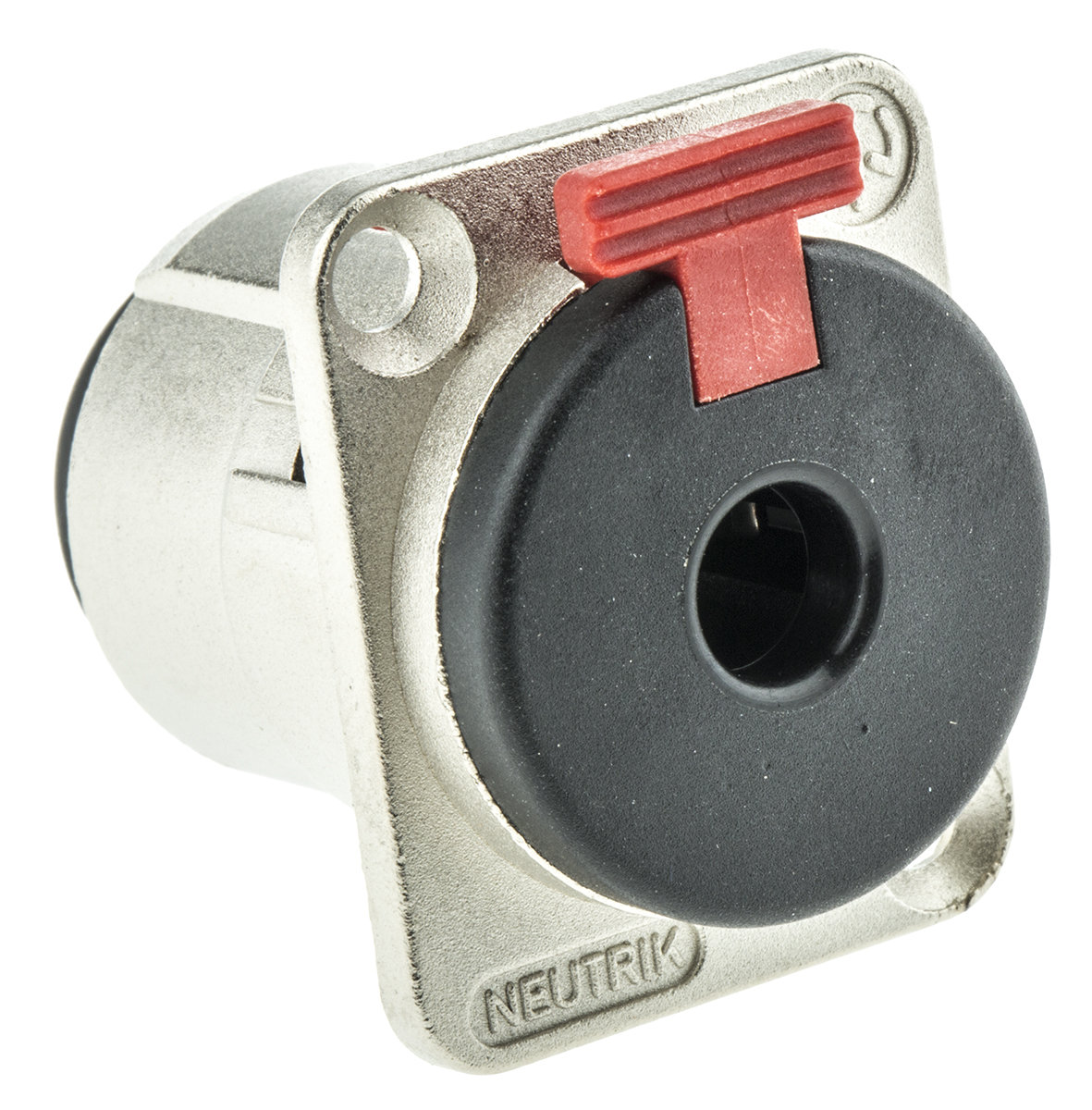

Neutrik Jack Connector 6.35 mm Panel Mount Stereo Socket, 3Pole 10A

nj3fp6c Neutrik Jack Connector 6.35 mm Panel Mount Stereo Socket, 3Pole 10A
NJ3FP6C
NJ3FP6C
HT19480
brand logo

HT Part No. HT19480

Mfr. Part No. NJ3FP6C

Manufacturer: Neutrik

Technical Documents: Jacks And Plugs Product Data-8ddcc163(datasheets) CONNECTEUR JACKS-463ca480(datasheets) Neutrik Plugs & Jacks-b6993da9(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 5.38
Units Per Unit Price
1 - 14 £ 5.38
15 - 49 £ 5.08
50 + £ 4.90
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Gender Female
Size 6.35 mm
Mounting Type Panel Mount
Type Stereo
Body Orientation Straight
Termination Method Solder
Contact Plating Silver
Current Rating 10A
Housing Material Zinc
Contact Material Bronze
No of Poles/ Way 3

More Information

Neutrik Stereo Locking Jack The Neutrik 6.35mm 3-pole stereo locking jack with solder terminations has a current rating of 10A. It is designed to mount in the same hole cut-out as our 'D' and NL4MP series of panel mount receptacles.
Note:
The ring and sleeve must be connected to configure the sockets for use with two-pole plugs. ’B’ gauge (BPO type 316, stock nos. 448-187 and 448-193) are also suitable for use with these sockets but will not latch
6.35mm Neutrik
0.25in professional jack connectors for use where applications demand a rugged connector, built to exacting standards Features and Benefits Nickel shell with silver contacts
Mates with all the mono or stereo plugs
Securely push release mechanism locking chassis jack
Operating temperature ranging between -20°C and 65°C Certifications IEC 68- 2-20
IEC 60603-11
EIA RS 453
