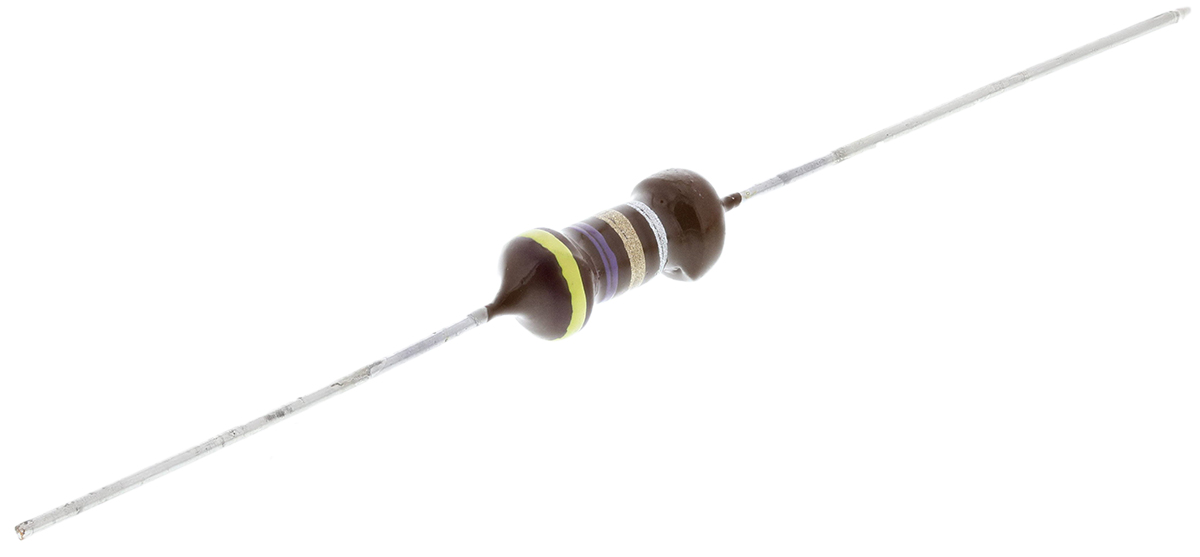

EPCOS 4.7 μH ±10% Ferrite Leaded Inductor, Max SRF:100MHz, Q:40, 1.6A Idc, 160mΩ Rdc, LBC

b82144a2472k000 EPCOS 4.7 μH ±10% Ferrite Leaded Inductor, Max SRF:100MHz, Q:40, 1.6A Idc, 160mΩ Rdc, LBC
B82144A2472K000
brand logo

HT Part No. HT17003

Mfr. Part No. B82144A2472K000

Manufacturer: EPCOS

Technical Documents: B82144A Series Datasheet-247cdab9(datasheets)

3000 - In Stock pcs
Price:
£ 0.17
Units Per Unit Price
1500 - 2999 £ 0.17
3000 - 4499 £ 0.14
4500 + £ 0.14
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Inductance 4.7 μH
Maximum DC Current 1.6A
Mounting Type Axial
Maximum DC Resistance 160mΩ
Tolerance ±10%
Diameter 5.2mm
Length 14.8mm
Dimensions 5.2 (Dia.) x 14.8mm
Core Material Ferrite
Maximum Self Resonant Frequency 100MHz
Series LBC
Minimum Quality Factor 40

More Information

Epcos B82144A LBC Series Axial Inductors Epcos B82144A LBC series RF chokes are suitable for use in telecommunications (12- or16-kHZ blocking filter), automotive electronics, energy saving lamps and entertainment electronics. They can also be used for RF blocking and filtering and decoupling and interference suppression. These inductors consist of a large ferrite drum core with enamel copper wire winding and a flame retardant lacquer coating. High rated current
Suitable for wave soldering
Very wide inductance range
Terminals are electroplated with nickel and pure tin
Inductance indicated by colour bands in accordance with IEC 62 (μH)
