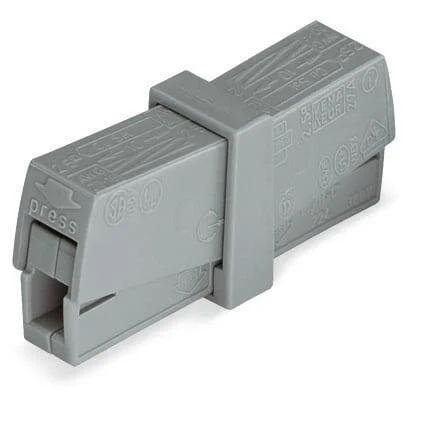

Wago Lighting Connector, Spring Termination Method, 400V Voltage Rating - 224 Series - 224-201
Searching for a safer way to link your lighting systems to a mains power source? This lighting connector from Wago makes short work of wall-mounted and ceiling installations. A cable diameter range between 9 and 11mm means there's plenty of room to house small and medium-sized wires. You can use this component with high current-consuming setups, as it has a current rating of 24A. Wires slot directly into the unit in a flash using the push-in cage-clamp terminals – no tools needed.
Features & Benefits
• Light weight of 4.6g won't put undue strain on your system
• Rated surge current of 4kV and a 400V nominal voltage, so safe to use with mains circuits
• Side entry makes it easy to connect and disconnect wiring without removing the whole unit
• Flexible design accepts wire sizes between 0.5 and 2.5mm²
Applications
• Domestic electrical repairs
• Consumer electronics
• Commercial lighting installations
How big is this lighting connector?
The component has dimensions of 8 (W) x 15.5 (H) x 42mm (D), making it the ideal fit for compact installations.
