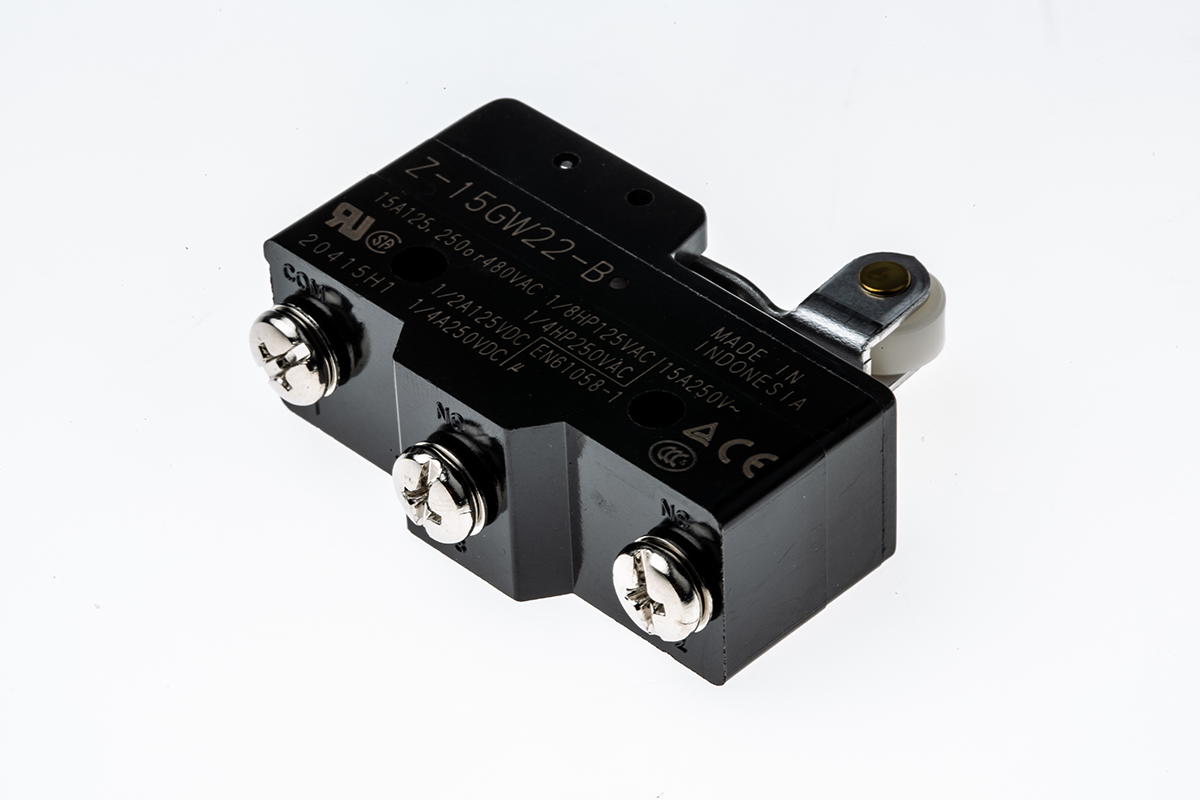

Omron Z Series Roller Lever Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 15A Max

z-15gw22-b Omron Z Series Roller Lever Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 15A Max
Z-15GW22-B
Z-15GW22-B
HT18602
HT18602
Limit Switches
brand logo

HT Part No. HT18602

Mfr. Part No. Z-15GW22-B

Manufacturer: Omron

Technical Documents: Z-Series Basic Switches Datasheet-a9deb089(datasheets)

2601 - In Stock pcs
Price:
£ 8.35
Units Per Unit Price
1 + £ 8.35
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Actuator Type Roller Lever
Pole and Throw Configuration SPDT
Normal State Configuration NO/NC
IP Rating IP00
Maximum Current 15A
Maximum AC Voltage 500V
Maximum DC Voltage 250V
Series Z
Action Type Snap Action
Length 39.4mm
Standards Met CCC, CE, CSA, UL
Maximum Operating Temperature +80°C
Width 49.2mm
Minimum Operating Temperature -25°C
Depth 17.45mm
Mechanical Life 10000000Cycles

More Information

Z15 Series – Basic Switch The Z series of basic switches from Omron are in plastic housing however still provide the same electrical and mechanical switching capability and lifetime as standard limit switches. These basic switches are ideal for use in uncritical environments or when separately encased in subassemblies. High precision basic switch in a wide range of variations
Large switching capacity of 15A with high repeat accuracy
Contact configuration: SPDT
Contact rating: 250Vac 15A, 14Vdc 15A
Contact Gap either 0.5mm (Standard) or 1.8mm (High Capacity)
