HT Part No. HT27845

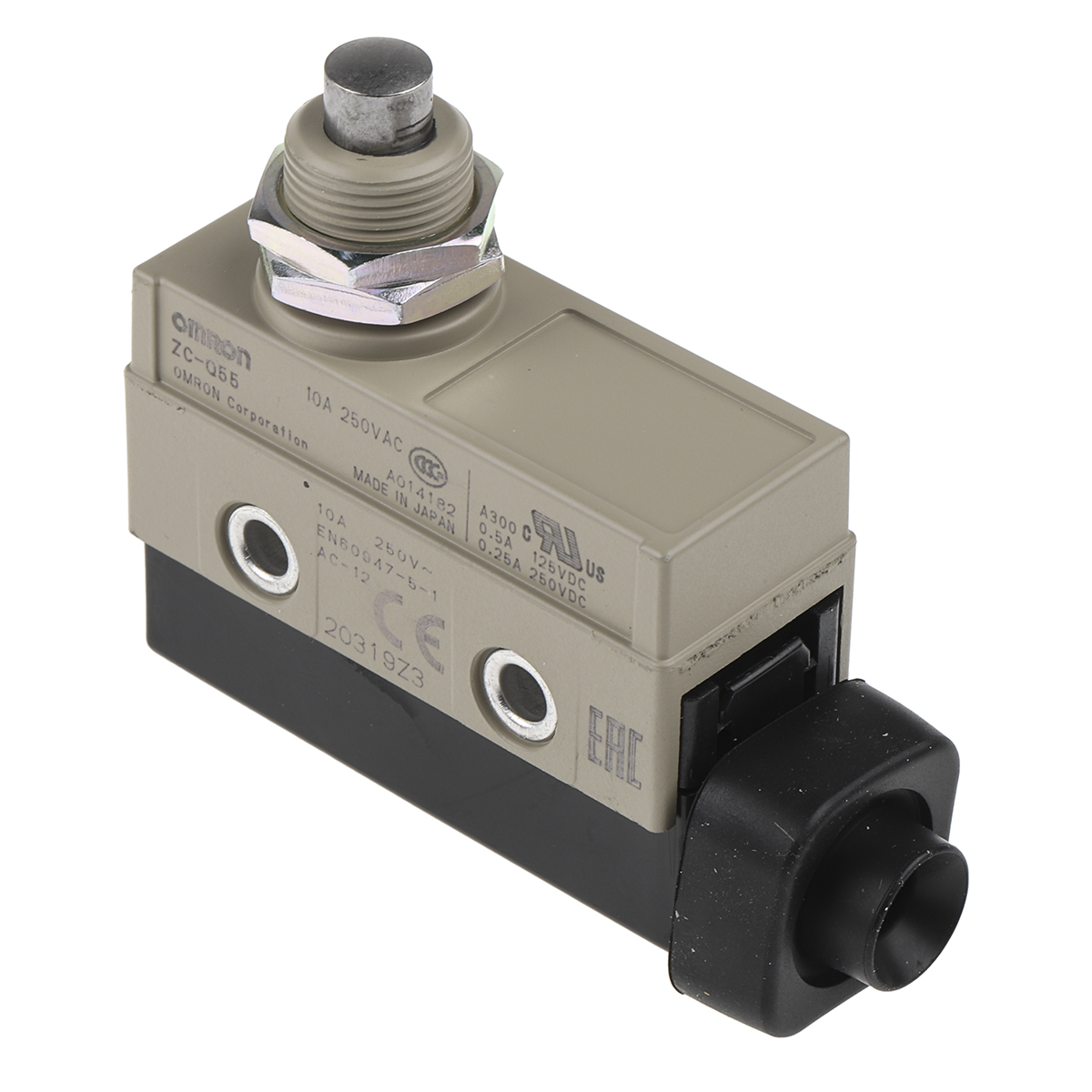

Mfr. Part No. ZC-Q55
Manufacturer: Omron
Technical Documents: Motion Control - Range Highlights-e733e223(datasheets) Brochure - ZC-Q55-abd4e2ba(datasheets)
| Product Attributes | |
|---|---|
| Actuator Type | Plunger |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | 10A |
| Maximum AC Voltage | 250V |
| Maximum DC Voltage | 250V |
| Connection Type | Terminal Block |
| Series | ZC |
| Action Type | Snap Action |
| Length | 60.2mm |
| Maximum Operating Temperature | +80°C |
| Width | 70mm |
| Minimum Operating Temperature | -10°C |
| Depth | 21.7mm |
| Standards Met | CE |
| Mechanical Life | 10000000Cycles |
| Mounting Orientation | Panel |
| Operating Force | 11.8 N |
| 3D Model | https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=4350321&DisplayLogo=False |
