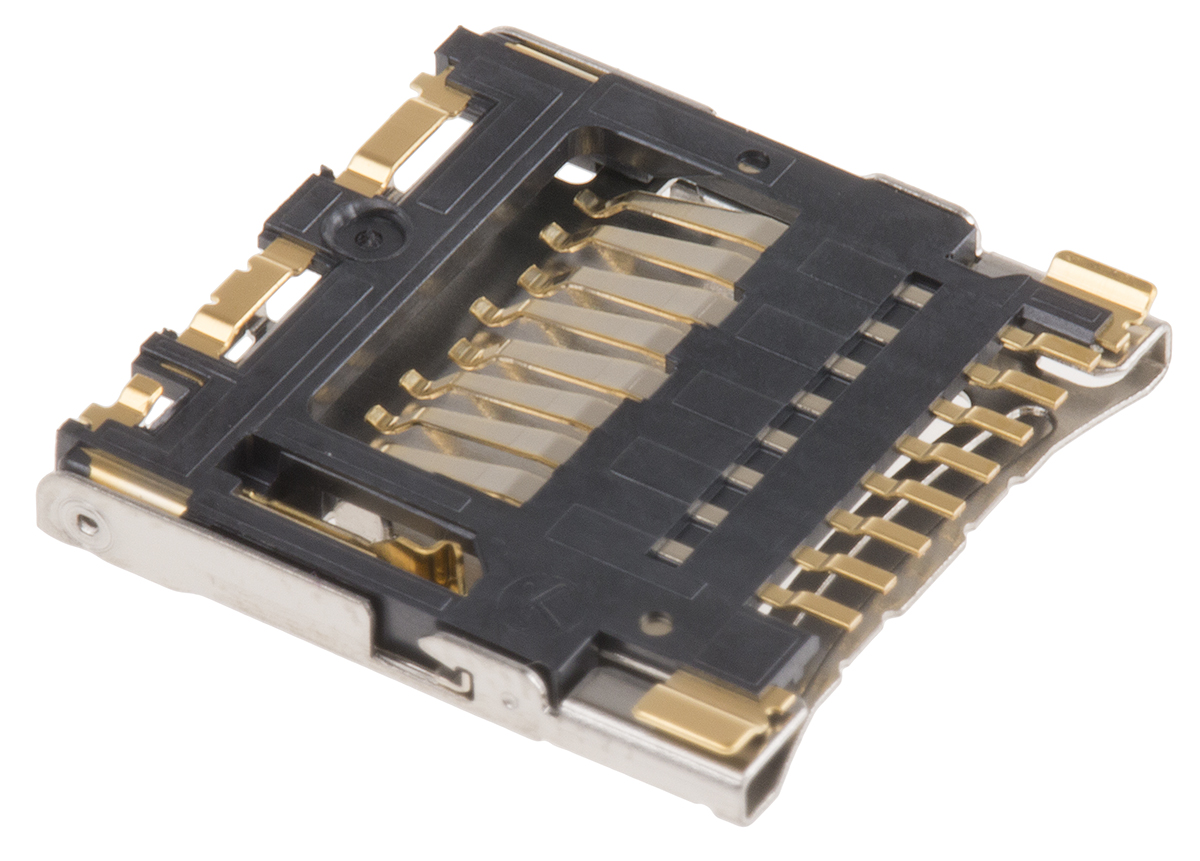

Hirose 8 Way Right Angle Micro SD Memory Card Connector With Solder Termination

dm3cs-sf Hirose 8 Way Right Angle Micro SD Memory Card Connector With Solder Termination
DM3CS-SF
DM3CS-SF
HT27071
brand logo

HT Part No. HT27071

Mfr. Part No. DM3CS-SF

Manufacturer: Hirose

Technical Documents: Datasheet-630862e1(datasheets) 8 way angled SD card drawing-1584887b(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Card Type MicroSD
Gender Female
Number of Contacts 8
Number of Rows 1
Pitch 1.1mm
Body Orientation Right Angle
Mounting Type Surface Mount
Contact Material Copper Alloy
Contact Plating Gold
Termination Method Solder
Housing Material Liquid Crystal Polymer
Length 14.1mm
Width 13.8mm
Depth 1.83mm
Maximum Operating Temperature +85°C
Minimum Operating Temperature -25°C
Dimensions 13.8 x 1.83 x 14.1mm
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=31785&DisplayLogo=False

More Information

Hirose DM3 Series microSD Card Connectors DM3 series SMT mounting microSD card connectors with small external dimensions and a strong rigid structure. These DM3 series microSD card connectors have reverse card insertion protection and a N/O card detection switch. The termination leads of these DM3 series microSD card connectors are accessible so they can be inspected and re-worked. • Small external dimensions
• Strong, rigid construction
• Reverse card insertion protection
• 4 connection points of the metal cover to the PCB secure connection of the ground circuit providing EMI protection
• Normally Open card detection switch
• Black LCP insulator, UL94V-0
