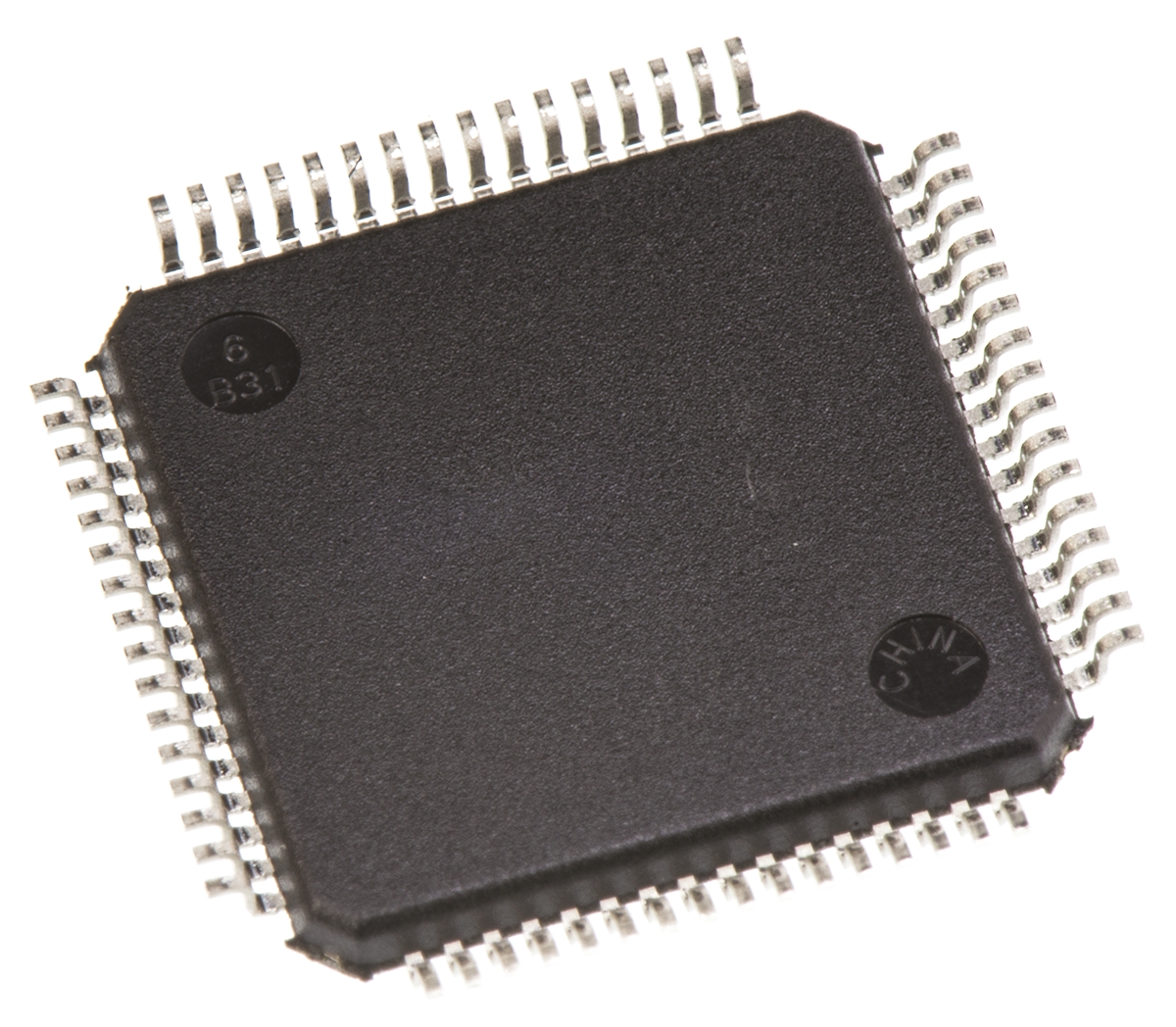

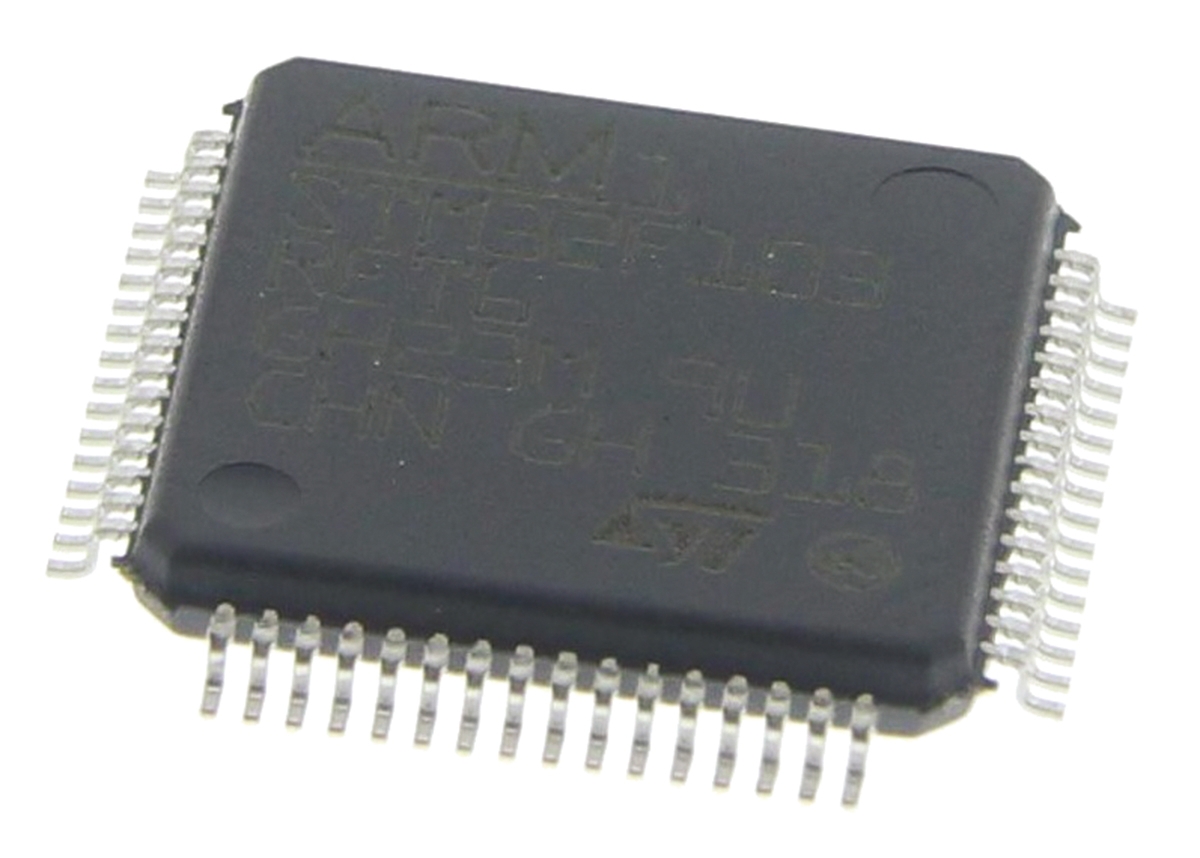

STMicroelectronics STM32F103RET6, 32bit ARM Cortex M3 Microcontroller, STM32F1, 72MHz, 512 kB Flash, 64-Pin LQFP

stm32f103ret6 STMicroelectronics STM32F103RET6, 32bit ARM Cortex M3 Microcontroller, STM32F1, 72MHz, 512 kB Flash, 64-Pin LQFP
STM32F103RET6
STM32F103RET6
HT18373
brand logo

HT Part No. HT18373

Mfr. Part No. STM32F103RET6

Manufacturer: STMicroelectronics

Technical Documents: Datasheet-19439641(datasheets) ESD Control Selection Guide V1-18b8755d(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 4.93
Units Per Unit Price
160 - 319 £ 4.93
320 - 479 £ 4.70
480 + £ 4.53
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Family Name STM32F1
Package Type LQFP
Mounting Type Surface Mount
Pin Count 64
Device Core ARM Cortex M3
Data Bus Width 32bit
Program Memory Size 512 kB
Maximum Frequency 72MHz
RAM Size 64 kB
USB Channels 1 x Device
Number of PWM Units 2 x 16 bit
Number of SPI Channels 3
Number of UART Channels 0
Number of CAN Channels 1
Typical Operating Supply Voltage 2 → 3.6 V
Number of I2C Channels 2
Number of USART Channels 5
Number of ADC Units 3
Instruction Set Architecture RISC
Minimum Operating Temperature -40 °C
Maximum Number of Ethernet Channels 0
Pulse Width Modulation 2 (16 bit) (Motor Control)
ADCs 16 x 12 bit
Program Memory Type Flash
Number of PCI Channels 0
Number of Ethernet Channels 0
Dimensions 10.2 x 10.2 x 1.45mm
Length 10.2mm
Maximum Operating Temperature +85 °C
Width 10.2mm
Height 1.45mm
Number of LIN Channels 0

More Information

STM32F103 Series Microcontrollers, STMicroelectronics STMicroelectronics devices STM32F103 Cortex-M3 core with 72 MHz CPU speed and up to 1 MB of Flash. Comprising of motor control peripherals plus CAN and USB full speed interfaces. The STM32 series ARM Cortex-M3 32 bit Flash microcontroller operates low power, low voltage and combines great performance with real time capabilities. In a range of package types available for your embedded application. The MCU architecture has an easy to use STM32 platform and will work in applications including motor drives; PC and gaming; HVAC and Industrial applications.
32-bit RISC
Pin to pin software compatible
SRAM up to 96 Kb
Flash up to 1MB
Power Supply: 2 V to 3.6 V
Temperature ranges: -40 to +85 °C or -40 to +105 °C
