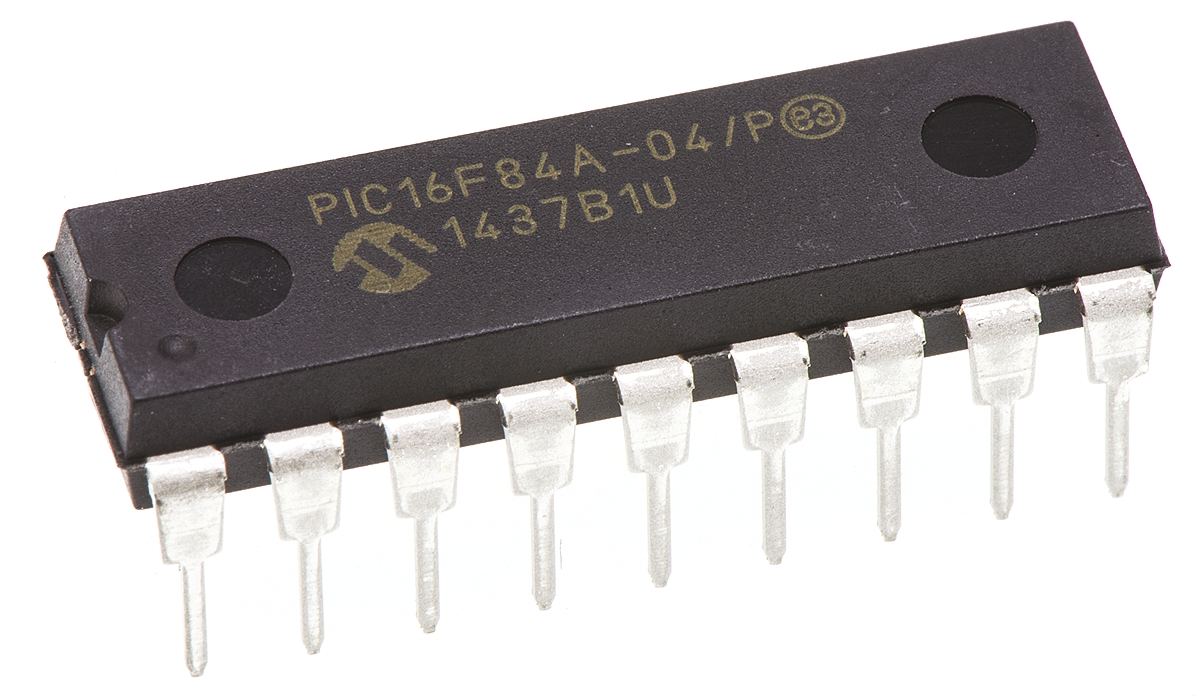

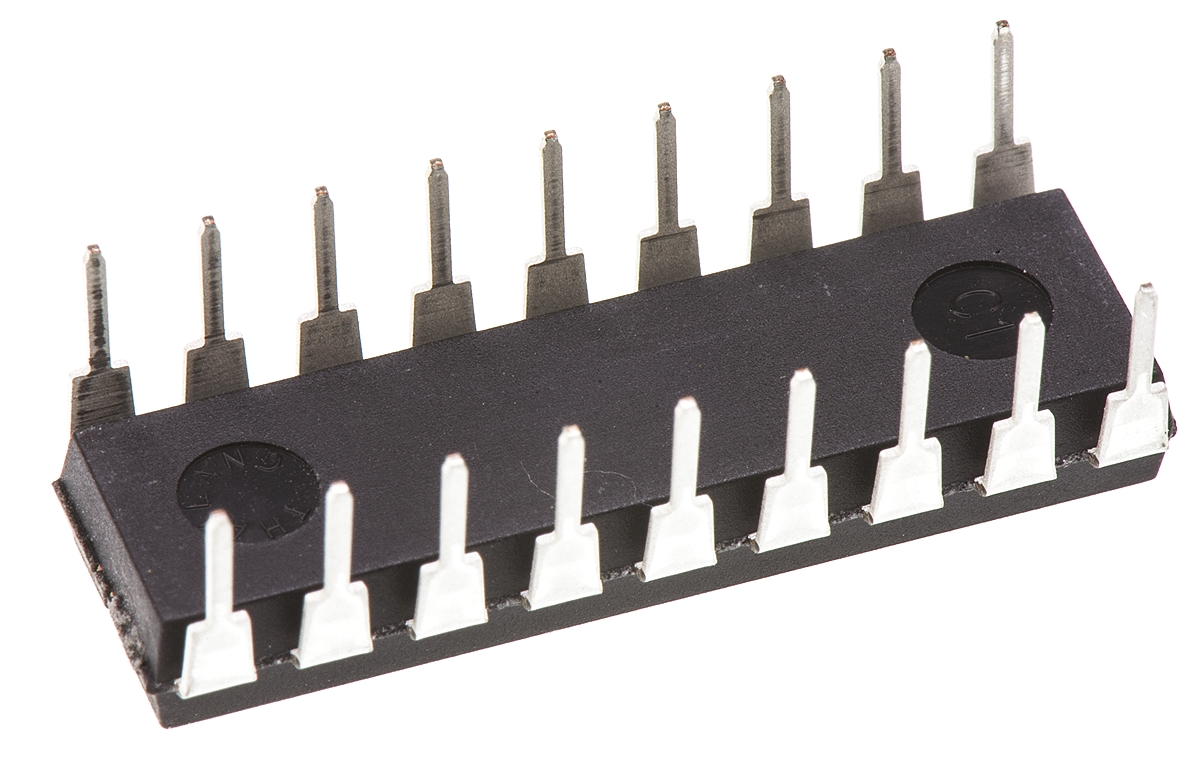

Microchip, 8bit PIC, PIC16F Microcontroller, 4MHz, 1024 x 14 words, 64 x 14 words Flash, 18-Pin PDIP

pic16f84a-04p Microchip, 8bit PIC, PIC16F Microcontroller, 4MHz, 1024 x 14 words, 64 x 14 words Flash, 18-Pin PDIP
PIC16F84A-04/P
PIC16F84A-04/P
HT22759
brand logo

HT Part No. HT22759

Mfr. Part No. PIC16F84A-04/P

Manufacturer: Microchip

Technical Documents: Datasheet-fad7e8c6(datasheets) ESD Control Selection Guide V1-eea78b7c(datasheets)

275 - In Stock pcs
Price:
£ 3.10
Units Per Unit Price
25 - 99 £ 3.10
100 + £ 3.02
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Family Name PIC16F
Package Type PDIP
Mounting Type Through Hole
Pin Count 18
Device Core PIC
Data Bus Width 8bit
Program Memory Size 1024 x 14 words, 64 x 14 words
Maximum Frequency 4MHz
RAM Size 68 B
USB Channels 0
Number of PWM Units 0
Number of SPI Channels 0
Number of USART Channels 0
Number of UART Channels 0
Typical Operating Supply Voltage 4 → 5.5 V
Number of I2C Channels 0
Number of CAN Channels 0
ADCs 0
Number of Ethernet Channels 0
Maximum Number of Ethernet Channels 0
Number of PCI Channels 0
Instruction Set Architecture RISC
Program Memory Type Flash
Minimum Operating Temperature 0 °C
Maximum Operating Temperature +70 °C
Number of LIN Channels 0
Number of ADC Units 0
Pulse Width Modulation 0
Length 22.99mm
Width 6.6mm
Dimensions 22.99 x 6.6 x 3.68mm
Height 3.68mm

More Information

PIC16F84A 8-Bit Flash Microcontrollers The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.

The PIC16F84A family of microcontrollers is based upon Microchip’s Mid-range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 1.75 Kbytes program memory, 68 bytes RAM and 64 bytes EEPROM. Microcontroller Features 20 MHz Max. CPU Speed
35 Instructions
8 Level Hardware Stack
13 I/O Pins
Power-On Reset (POR)
Power-Up Timer (PWRT)
Oscillator Start-Up Timer (OST)
Brown-Out Reset (BOR)
Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP) Peripherals One 8-bit Timer
