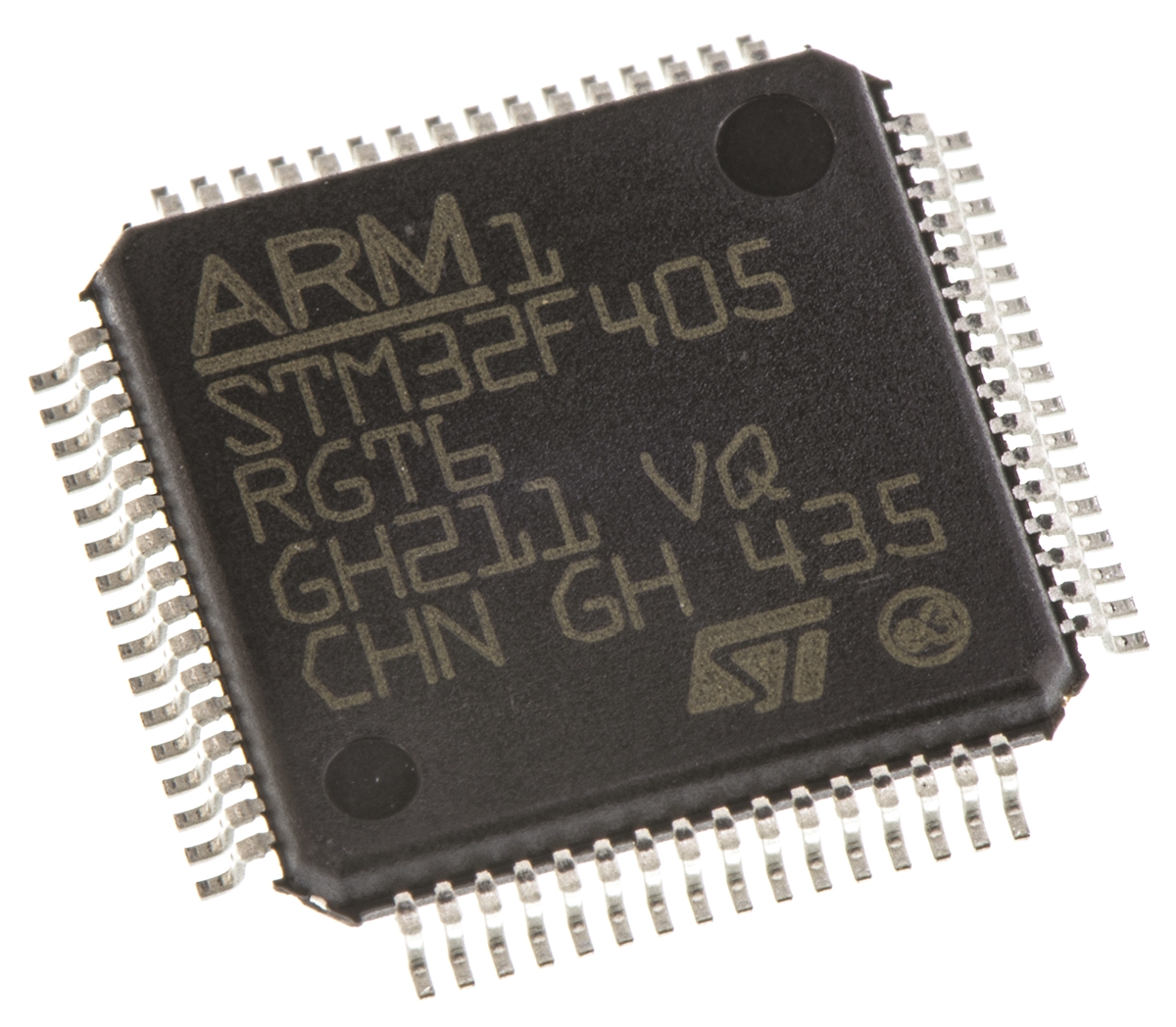

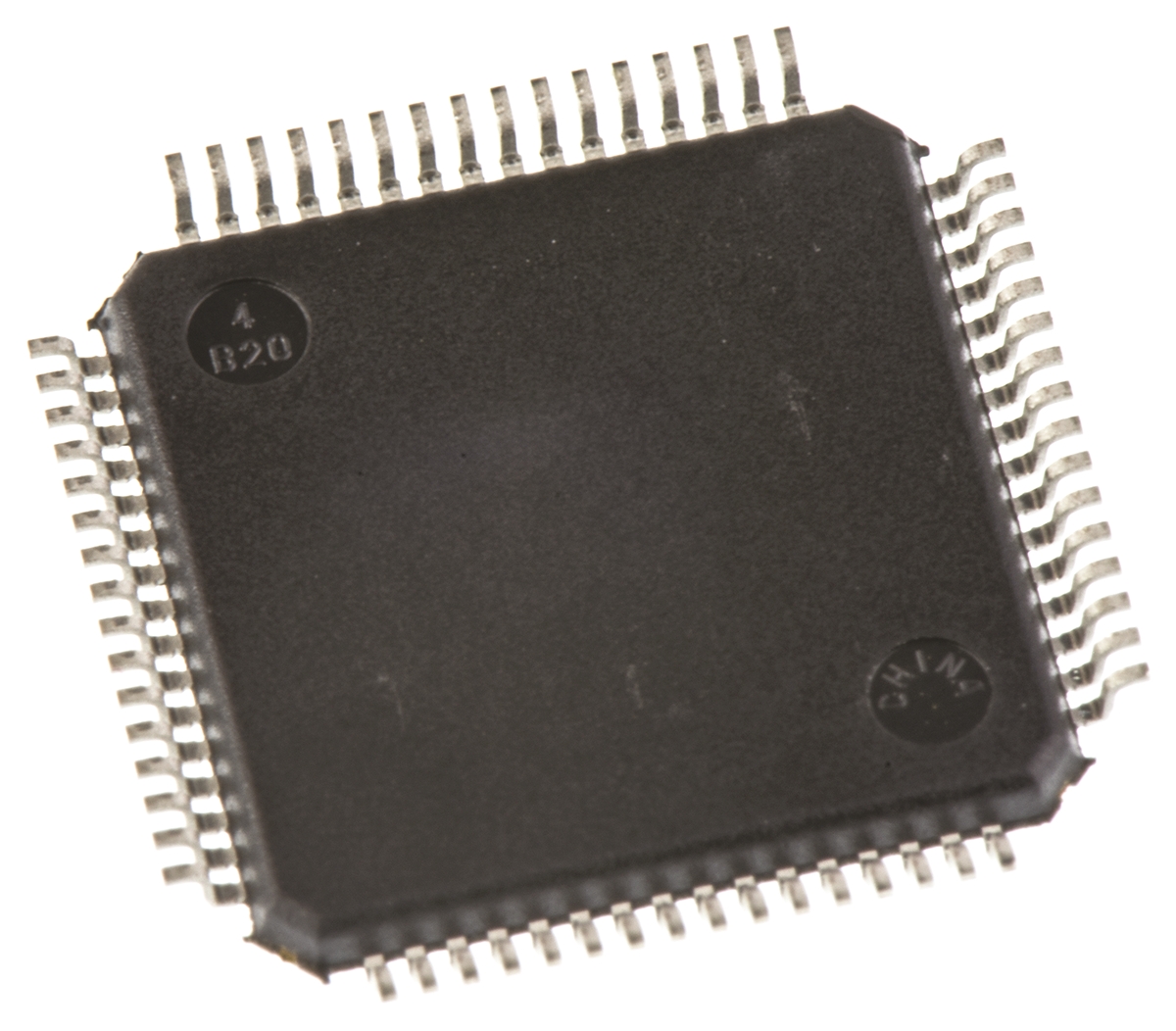

STMicroelectronics, 32bit ARM Cortex M4, STM32F4 Microcontroller, 168MHz, 1.024 MB Flash, 64-Pin LQFP

stm32f405rgt6 STMicroelectronics, 32bit ARM Cortex M4, STM32F4 Microcontroller, 168MHz, 1.024 MB Flash, 64-Pin LQFP
STM32F405RGT6
STM32F405RGT6
HT23591
brand logo

HT Part No. HT23591

Mfr. Part No. STM32F405RGT6

Manufacturer: STMicroelectronics

Technical Documents: STM32F405xx, STM32F407xx, ARM Cortex-M4 32-Bit MCU+FPU, 210DMIPS, up to 1MB Flash/192+4KB RAM, USB OTG HS/FS, Ethernet, 17 TIMs, 3 ADCs, 15 Comm. Interfaces & Camera-2b989da1(datasheets) ESD Control Selection Guide V1-c7345090(datasheets) STM32F405RGT6 Datasheet-ee8ba93e(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 8.96
Units Per Unit Price
1 - 1 £ 8.96
2 + £ 8.51
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Family Name STM32F4
Package Type LQFP
Mounting Type Surface Mount
Pin Count 64
Device Core ARM Cortex M4
Data Bus Width 32bit
Program Memory Size 1.024 MB
Maximum Frequency 168MHz
RAM Size 4 kB, 192 kB
USB Channels 1 x Device, 1 x Host, 1 x OTG
Number of PWM Units 1 x 16 bit
Number of SPI Channels 3
Number of CAN Channels 2
Number of USART Channels 4
Number of UART Channels 2
Typical Operating Supply Voltage 1.8 → 3.6 V
Number of I2C Channels 3
Number of PCI Channels 0
Number of Ethernet Channels 0
Minimum Operating Temperature -40 °C
Number of LIN Channels 1
Height 1.45mm
Width 10mm
Pulse Width Modulation 2 x 16 bit
Maximum Number of Ethernet Channels 0
Length 10mm
ADCs 16 x 12 bit
Instruction Set Architecture RISC
Maximum Operating Temperature +85 °C
Number of ADC Units 3
Program Memory Type Flash
Dimensions 10 x 10 x 1.45mm
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=7468217&DisplayLogo=False

More Information

STM32F405/415 Microcontrollers, STMicroelectronics The STMicroelectronics ARM Cortex STM32 F405/415 ranges of microcontrollers are for embedded applications. The high performance STM32 F4 series 32-bit Flash MCU offers floating point unit (FPU) and digital signal processing (DSP) with industry standard core architecture.
ST’s 32-bit ARM® Cortex™ M4 core operates on the 168 MHz range with integrated peripherals including ADCs, DACs, timers and a crypto/hash processor (STM32F415 only) which provides hardware acceleration for AES 128, 192, 256, Triple DES, and hash (MD5, SHA-1). ST’s ART accelerator and the dynamic power scaling enable low current consumption in run mode.
USB OTG (High Speed support)
Audio: audio PLL and 2 full duplex I²S
Communication interfaces: USARTs, SPI, I²C, CAN, SDIO
Analogue: 12-bit DACs, 12-bit ADCs
Timers: 16-bit and 32-bit (168MHz)
Flash memory: 1MB; SRAM: 92KB
STM32F415 only: integrates a crypto/hash processor
Analogue true random number generator
Operation voltage: 1.7 to 3.6V
Temperature ranges: -40 to +85°C or -40 to +105°C
