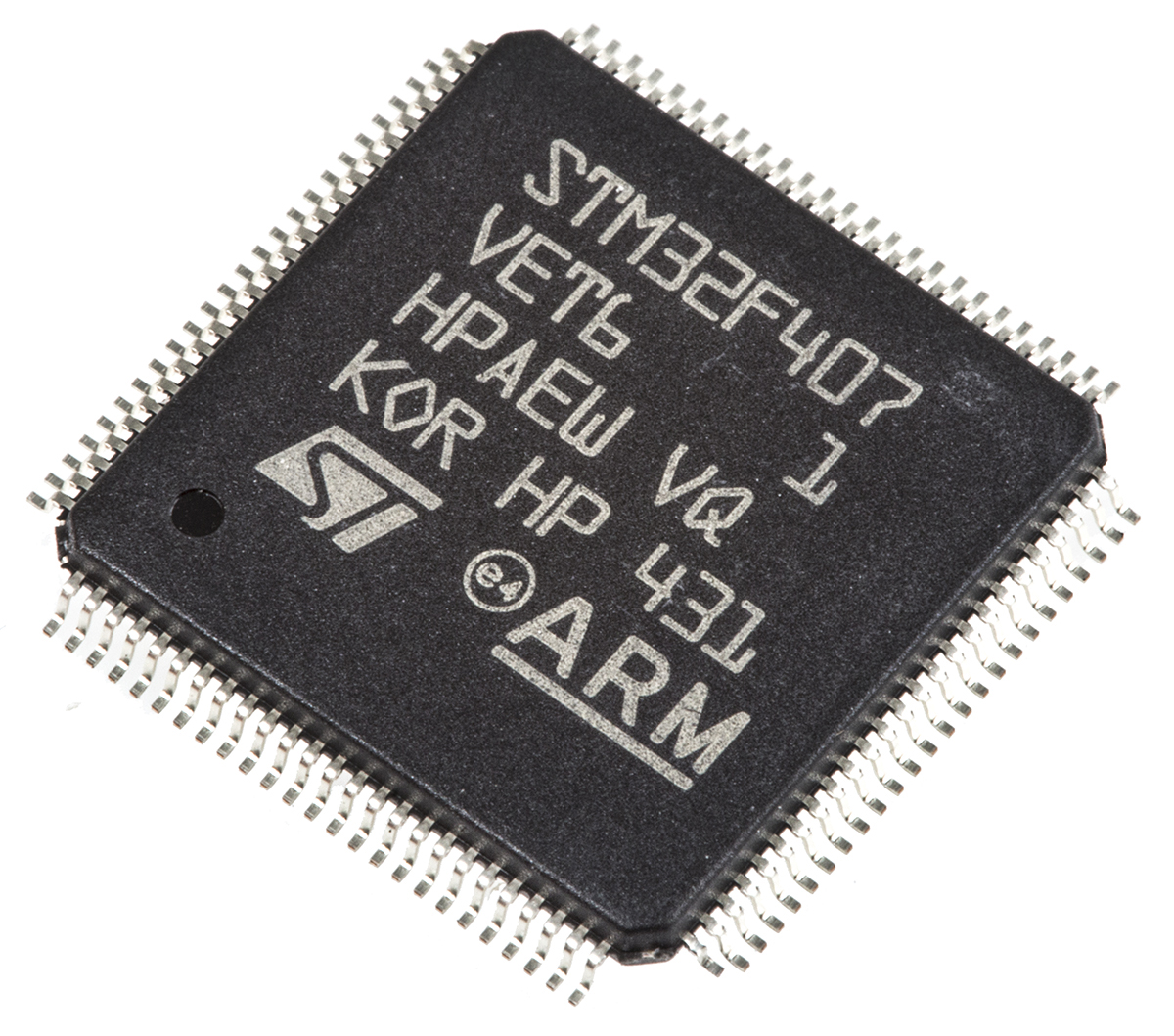

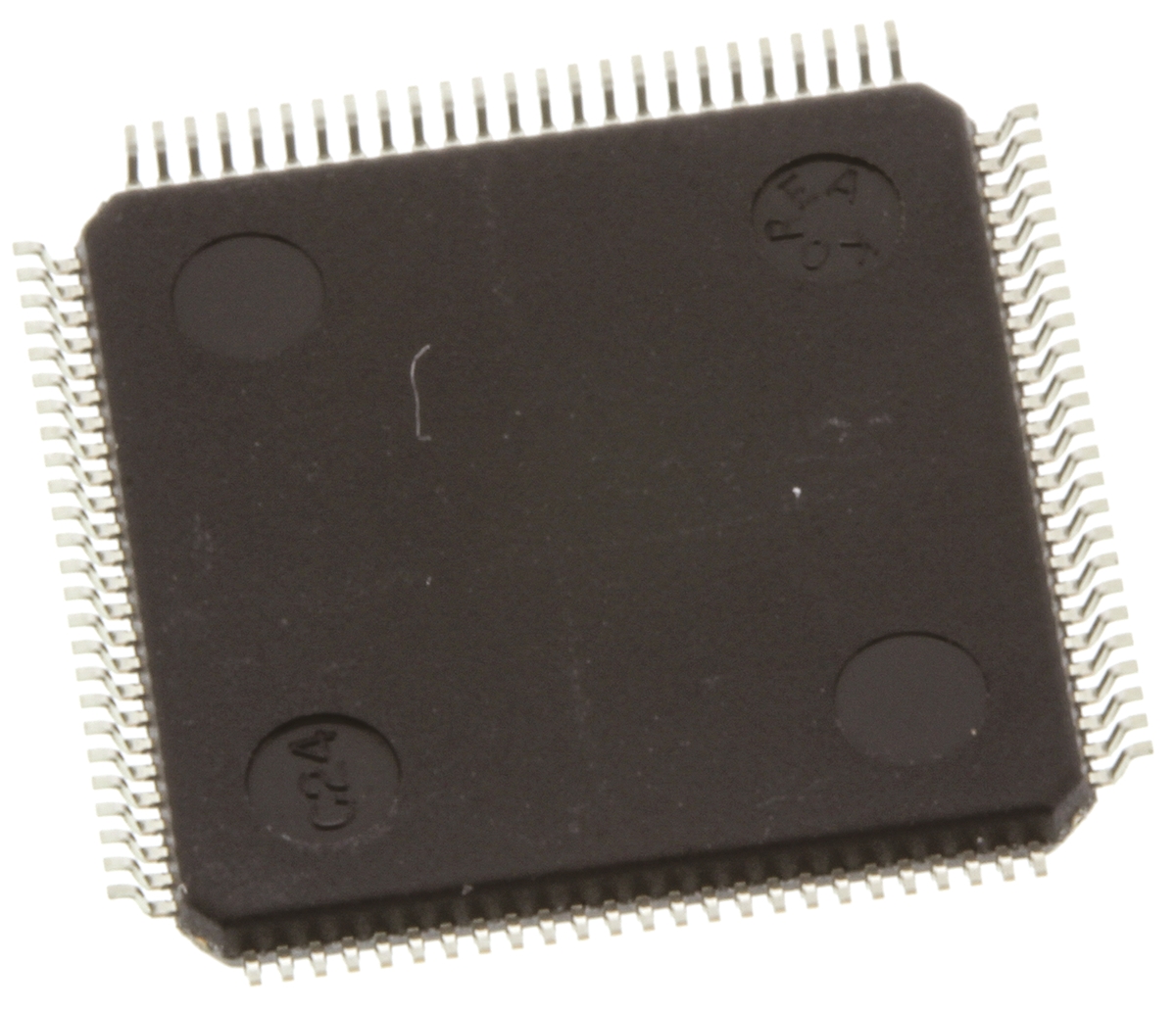

STMicroelectronics, 32bit ARM Cortex M4, STM32F4 Microcontroller, 168MHz, 512 kB Flash, 100-Pin LQFP

stm32f407vet6 STMicroelectronics, 32bit ARM Cortex M4, STM32F4 Microcontroller, 168MHz, 512 kB Flash, 100-Pin LQFP
STM32F407VET6
STM32F407VET6
HT23593
brand logo

HT Part No. HT23593

Mfr. Part No. STM32F407VET6

Manufacturer: STMicroelectronics

Technical Documents: STM32F405xx, STM32F407xx, ARM Cortex-M4 32-Bit MCU+FPU, 210DMIPS, up to 1MB Flash/192+4KB RAM, USB OTG HS/FS, Ethernet, 17 TIMs, 3 ADCs, 15 Comm. Interfaces & Camera-2b989da1(datasheets) ESD Control Selection Guide V1-c7345090(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 5.86
Units Per Unit Price
1 + £ 5.86
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Family Name STM32F4
Package Type LQFP
Mounting Type Surface Mount
Pin Count 100
Device Core ARM Cortex M4
Data Bus Width 32bit
Program Memory Size 512 kB
Maximum Frequency 168MHz
RAM Size 4 kB, 192 kB
USB Channels 1 x Device, 1 x Host, 1 x OTG
Number of PWM Units 1 x 16 bit
Number of SPI Channels 3
Typical Operating Supply Voltage 1.8 → 3.6 V
Number of USART Channels 4
Number of CAN Channels 2
Number of UART Channels 2
Number of I2C Channels 3
Number of ADC Units 3
Maximum Operating Temperature +85 °C
Minimum Operating Temperature -40 °C
Maximum Number of Ethernet Channels 1
Pulse Width Modulation 2 x 16 bit
Width 14.2mm
Height 1.45mm
Number of LIN Channels 1
Number of Ethernet Channels 1
Number of PCI Channels 0
Program Memory Type Flash
Dimensions 14.2 x 14.2 x 1.45mm
Instruction Set Architecture RISC
ADCs 16 x 12 bit
Length 14.2mm
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=7468223&DisplayLogo=False

More Information

STM32F407/417 Microcontrollers, STMicroelectronics The STM32 F407/417 high performance ARM® Cortex™ M4 based microcontrollers integrate innovative peripherals with 168 MHz operating frequency, in addition to this it has an Ethernet MAC and camera interface for CMOS sensors. The STM32 F407/417 32-bit Flash MCUs feature a Floating point unit (FPU) with digital signal processing (DSP) instructions and a memory protection unit (MPU) which improves application security. ST’s STM32F417 microcontroller incorporates a crypto/hash processor providing hardware acceleration for AES 128, 192, 256, Triple DES, and hash (MD5, SHA-1)

STMicroelectronics STM32 F407/417 high performance and industry standard core architecture is supplied with enhanced peripherals and I/Os that are connected. They include ADCs, DACs, a RTC, 16-bit timers including two PWM timers for motor control, 32-bit timers. As well as a true number random generator (RNG). In addition a set of power saving modes allowing low-power application designs. They will cover a wide range of applications which include motor drive and application control, Industrial applications: Inverters, PLC, scanners, HVAC, video intercom, Home audio appliances and Medical equipment.
168MHz CPU/210DMIPS
ART Accelerator (dynamic power scaling)
12-bit DACs, 12-bit ADCs
Timers: 16-bit and 32-bit
Temperature range: –40 to +85 °C and –40 to +105 °C
Power supply 1.8 to 3.6 V
Standard and advanced communication;
I2Cs, SPIs, I2Ss full duplex (dedicated internal audio PLL)
USARTs; UARTs
USB OTG FS; USB OTG HS, CANs
SDIO/MMC interface
True random number generator
Flash Memory: up to 1 MB, SRAM: up to 192 KB, Back up RAM: up to 4 KB
Crypto/hash processor (STM32F417 only)
