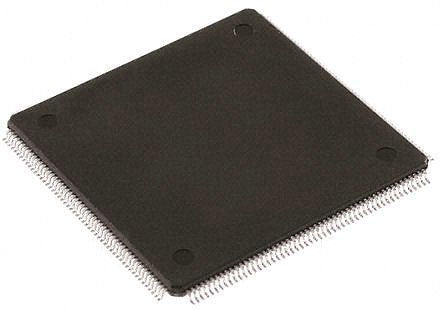

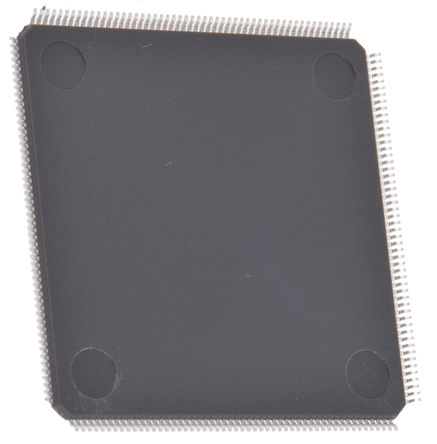

HT Part No. HT24700
Mfr. Part No. STM32F769BIT6
Manufacturer: STMicroelectronics
Technical Documents: STM32F767xx, STM32F768Ax, STM32F769xx, ARM-based Cortex-M7 32-Bit MCU+FPU, 462DMIPS, up to 2MB Flash/512+16+4KB RAM, USB OTG HS/FS, ethernet, 18 TIMs, 3 ADCs, 28 com, Cam, LCD, DSI-67e8aada(datasheets) ESD Control Selection Guide V1-18b8755d(datasheets)
| Product Attributes | |
|---|---|
| Family Name | STM32F7 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 208 |
| Device Core | ARM Cortex M7 |
| Data Bus Width | 32bit |
| Program Memory Size | 2.048 MB |
| Maximum Frequency | 216MHz |
| RAM Size | 512 kB |
| USB Channels | 2 |
| Typical Operating Supply Voltage | 1.7 → 3.6 V |
| Instruction Set Architecture | Harvard, RISC |
| ADCs | 24 x 12 bit |
| Height | 1.45mm |
| Maximum Number of Ethernet Channels | 1 |
| Data Rate | 480Mbps |
| Dimensions | 28.2 x 28.2 x 1.45mm |
| Width | 28.2mm |
| Maximum Operating Temperature | +85 °C |
| Program Memory Type | Flash |
| Number of ADC Units | 3 |
| Length | 28.2mm |
| Minimum Operating Temperature | -40 °C |
