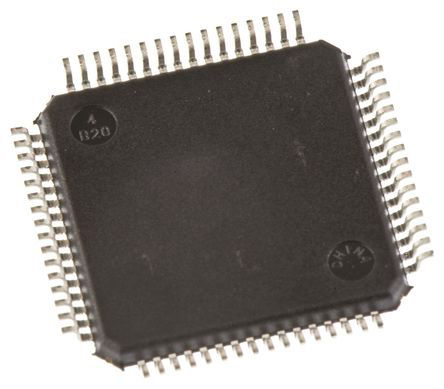

STMicroelectronics, 32bit ARM Cortex M4, STM32F4 Microcontroller, 84MHz, 512 kB Flash, 64-Pin LQFP

stm32f401ret6 STMicroelectronics, 32bit ARM Cortex M4, STM32F4 Microcontroller, 84MHz, 512 kB Flash, 64-Pin LQFP
STM32F401RET6
STM32F401RET6
HT27955
brand logo

HT Part No. HT27955

Mfr. Part No. STM32F401RET6

Manufacturer: STMicroelectronics

Technical Documents: STM32F401xD STM32F401xE, ARM Cortex-M4 32-Bit MCU+FPU, 105 DMIPS, 512 kB Flash/96 kB RAM, 11 Timers, 1 ADC, 11 Comm. interfaces-15b2faa2(datasheets) ESD Control Selection Guide V1-eea78b7c(datasheets)

2477 - In Stock pcs
Price:
£ 4.41
Units Per Unit Price
1 + £ 4.41
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Family Name STM32F4
Package Type LQFP
Mounting Type Surface Mount
Pin Count 64
Device Core ARM Cortex M4
Data Bus Width 32bit
Program Memory Size 512 kB
Maximum Frequency 84MHz
RAM Size 96 kB
USB Channels 1
Typical Operating Supply Voltage 1.7 → 3.6 V
Height 1.45mm
Width 10mm
ADCs 16 x 12 bit
Length 10mm
Number of ADC Units 1
Maximum Operating Temperature +85 °C
Dimensions 10 x 10 x 1.45mm
Minimum Operating Temperature -40 °C
Program Memory Type Flash
Data Rate 42Mbps
Instruction Set Architecture RISC

More Information

STM32F401 Microcontrollers, STMicroelectronics The STM32 F401 series ARM® Cortex™-M4 based MCU with Digital signal processing and floating point unit (FPU) featuring peripherals such as ADCs, 16-bit timers as well as communication interfaces; USART, SPI, I2C, I2S and audio PLL. STM32F401 Dynamic Efficiency™ microcontroller can be used in medical, consumer and Industrial applications.
USB 2.0 OTG FS/HS, USARTs, SPI, I²C, SDIO, I²S
Flash memory: up to 256 KB
SRAM: up to 64 KB
12-bit ADC, 16-bit/32-bit Timers
Operation voltage: 1.7 to 3.6 V
Performance: 84 MHz, 105 DMIPS/285 Core Mark performances
Power efficiency: ART accelerator and dynamic power scaling
Small package: 3 x 3 mm
