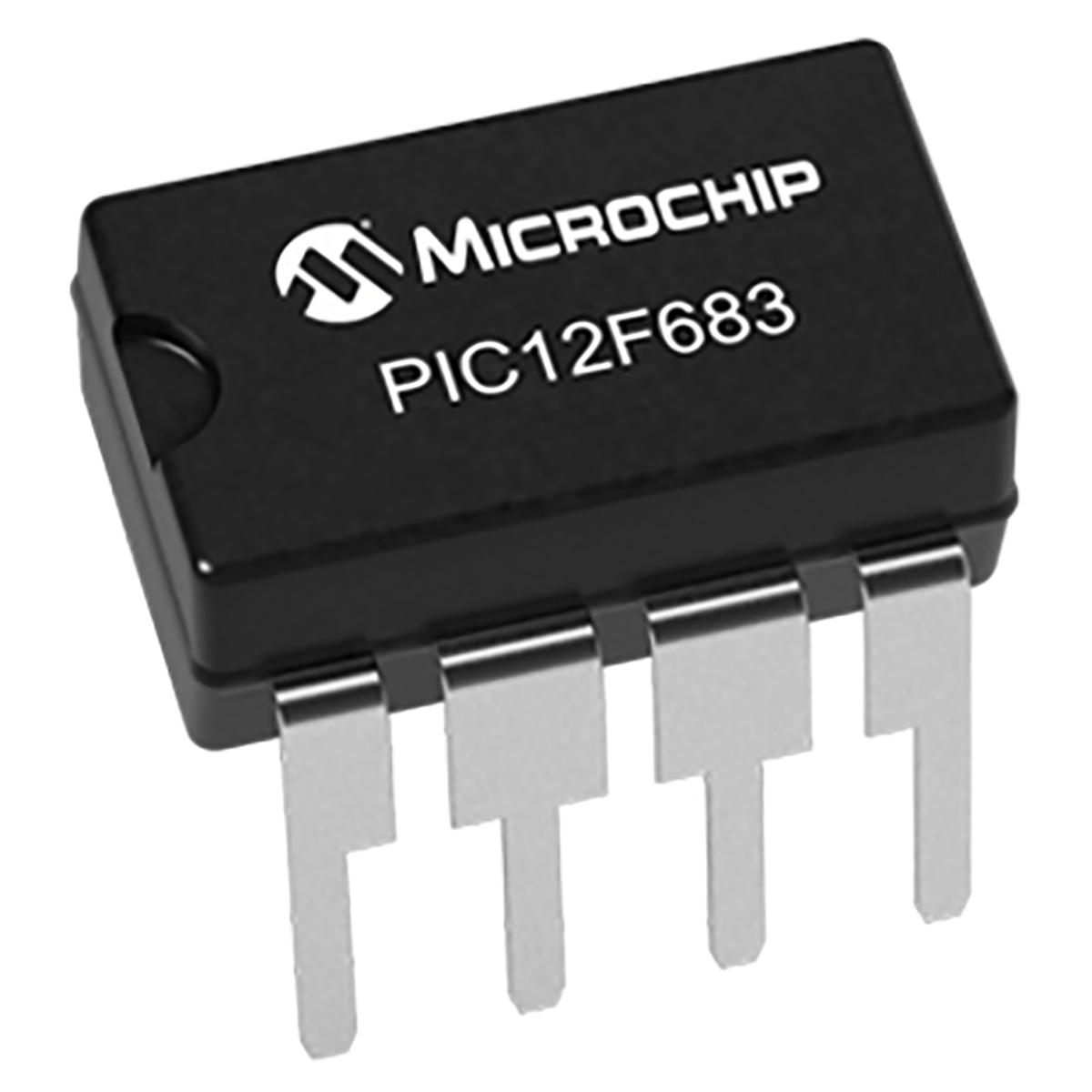

Microchip, 8bit PIC, PIC12F Microcontroller, 20MHz, 3.5 kB Flash, 8-Pin PDIP

pic12f683-ip Microchip, 8bit PIC, PIC12F Microcontroller, 20MHz, 3.5 kB Flash, 8-Pin PDIP
PIC12F683-I/P
brand logo

HT Part No. HT29557

Mfr. Part No. PIC12F683-I/P

Manufacturer: Microchip

Technical Documents: Datasheet-40177580(datasheets) ESD Control Selection Guide V1-eea78b7c(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Family Name PIC12F
Package Type PDIP
Mounting Type Through Hole
Pin Count 8
Device Core PIC
Data Bus Width 8bit
Program Memory Size 3.5 kB
Maximum Frequency 20MHz
RAM Size 128 B
USB Channels 0
Number of PWM Units 0
Number of SPI Channels 0
Number of I2C Channels 0
Number of CAN Channels 0
Number of USART Channels 0
Number of UART Channels 0
Typical Operating Supply Voltage 2 → 5.5 V
Number of PCI Channels 0
Number of Ethernet Channels 0
Width 0.28in
Dimensions 0.4 x 0.28 x 0.19in
Pulse Width Modulation 1 (10 bit) (CCP)
Maximum Operating Temperature +85 °C
Number of ADC Units 1
Length 10.16mm
ADCs 4 x 10 bit
Maximum Number of Ethernet Channels 0
Instruction Set Architecture RISC
Minimum Operating Temperature -40 °C
Height 4.83mm
Number of LIN Channels 0
Program Memory Type Flash

More Information

PIC12F683 8-Bit Microcontrollers Microchip’s PIC12 Microcontrollers (MCUs) were the world’s first 8-Pin microcontrollers. Originally launched as One Time Programmable (OTP) parts, this range of devices continues to expand as extra features and further enhancements are added.

The PIC12F683 family of microcontrollers is based upon Microchip’s mid-range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, 3.5 Kbytes program memory with data memory consisting of 128 bytes RAM and 256 bytes EEPROM. On board is a configurable RC oscillator with ±1% accuracy. Features 35 Instructions
8 Level Hardware Stack
8 MHz Internal Oscillator – Selectable 8 MHz to 125 kHZ
6 I/O Pins
1 Comparator
4 Channel 10-bit Analogue to Digital Converter (ADC)
Capture, Compare, PWM Module (CCP)
Two 8-bit Timers
One 16-bit Timer
In Circuit Serial Programming (ICSP)
