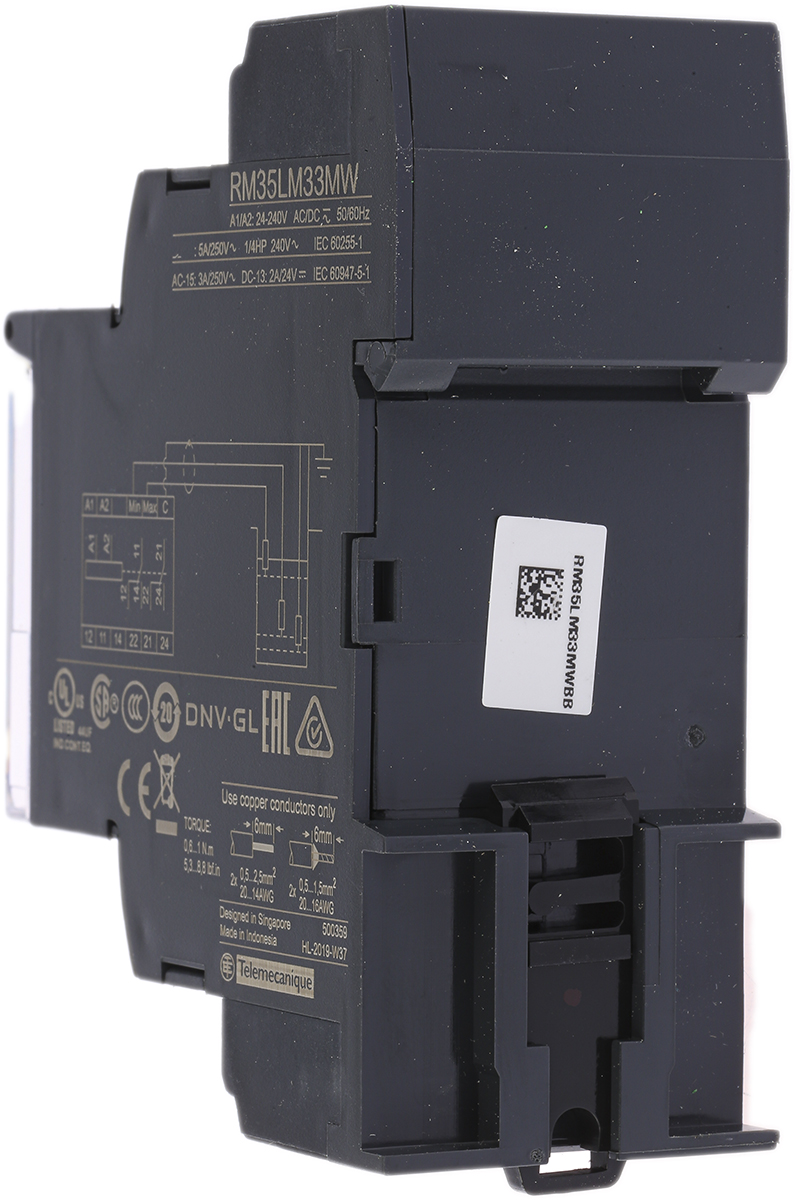

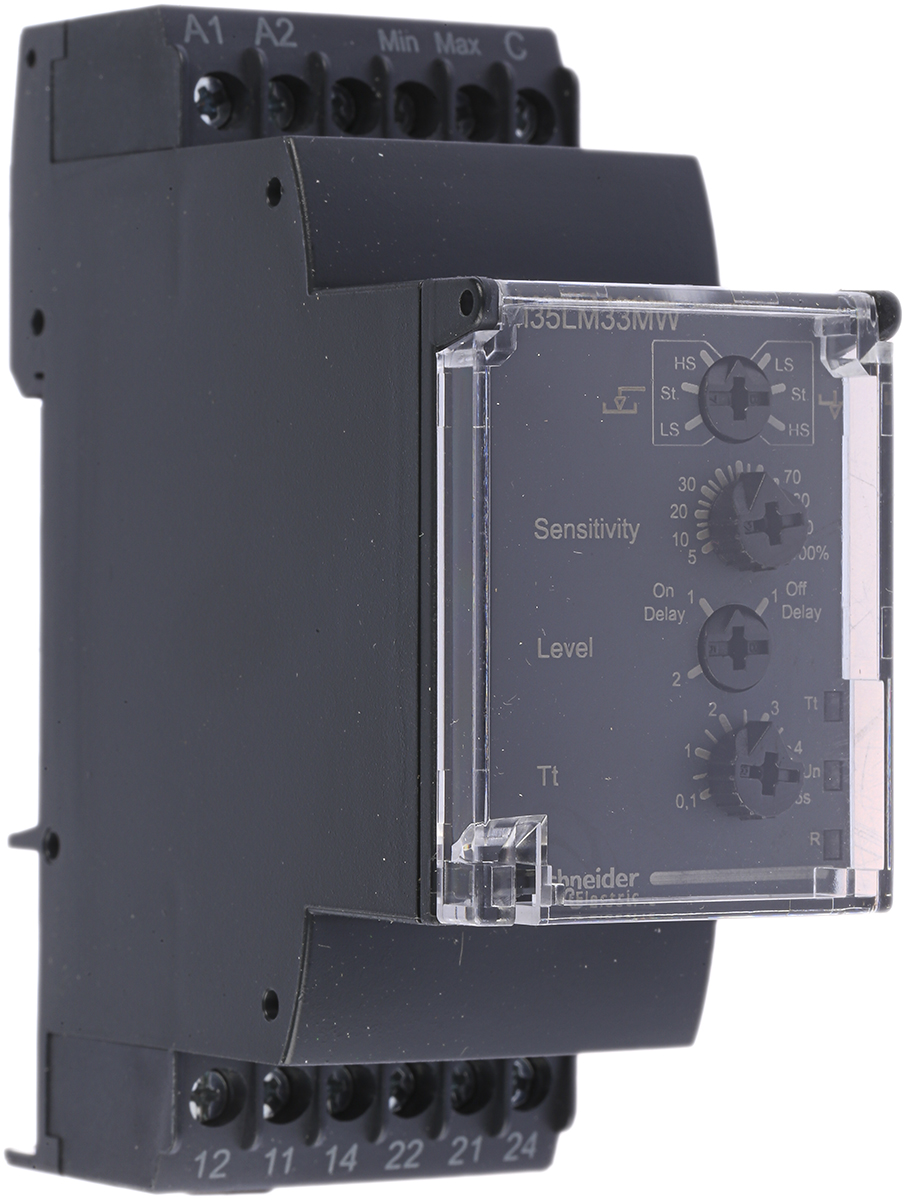

Schneider Eclectic Modular Liquid Level Control Relay - RM35LM33MW
Created and designed to measure the level of conductive liquid or non-conductive material, this monitoring and control relay is also used to control the actuation of pumps or valves to regulate levels and help protect submersible pumps against dry running, or help protects tanks from "overflow".
Predominantly used to control dosing of liquids in mixing processes and help to protect the heating elements in case there is non-immersion. Along with other control relays in its range, this really has a transparent and hinged cover on the print panel which contributes to avoiding accidental alterations of the settings.
Features & Benefits
• Directly coverable seal
• Suitable for spring water, town water, industrial and seawater
• Suitable for metallic sale, acid and base solutions as well as liquid fertilizers and non-concentrated alcohol
• Suitable for liquids that are commonly found in the food processing industry such as beer and coffee
• Relay RM35LV measures the levels by means of discrete sensors
• Forms part of the Zelio control range of products
• The relay monitored parameters are directed by resistive probes
• Features a time delay that is adjustable 0.1...5 s, +/- 10 %
• The switching capacity is 1250 VA
• Minimum switching current is 10 mA at 5 V DC and the maximum switching current is 5 A AC/DC
• Features and ingress protection of IP20 for the terminals and protection of IP30 for the casing
• Power consumption is 5 VA AC
• Maximum switching voltage is 250 V AC/DC
