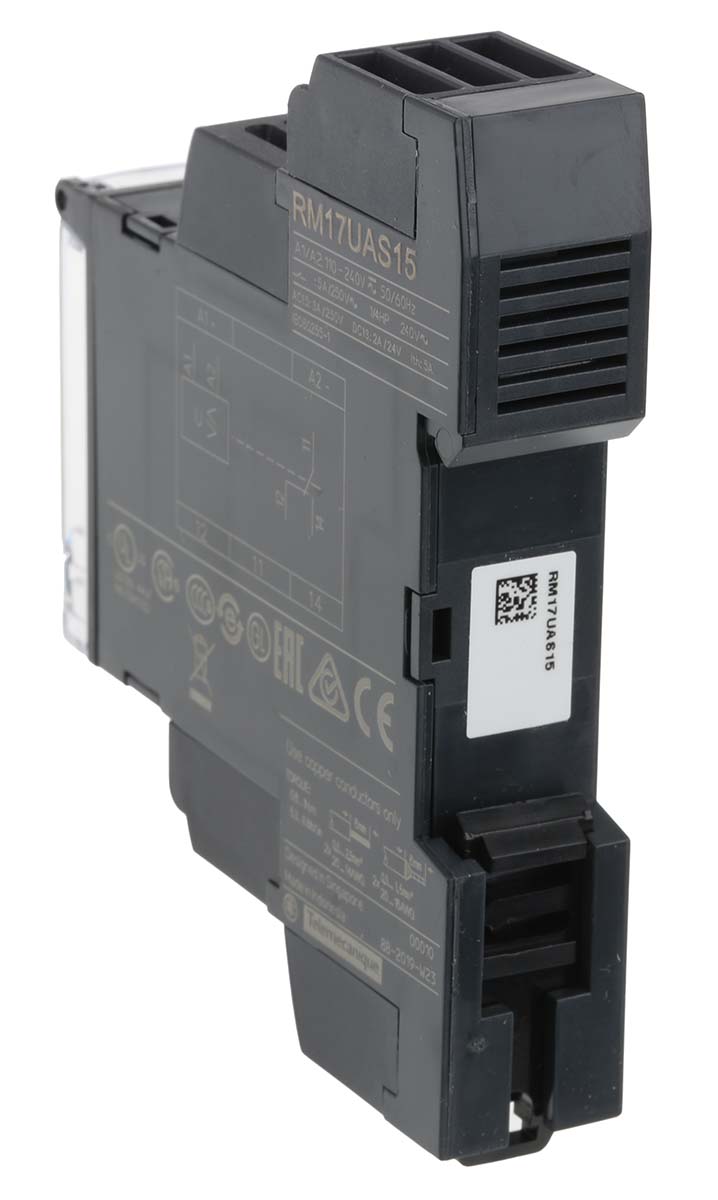

Schneider Electric Voltage Monitoring Relay, 1 Phase, SPDT, 65 → 260V ac/dc, DIN Rail

rm17uas15 Schneider Electric Voltage Monitoring Relay, 1 Phase, SPDT, 65 → 260V ac/dc, DIN Rail
RM17UAS15
RM17UAS15
HT19622
brand logo

HT Part No. HT19622

Mfr. Part No. RM17UAS15

Manufacturer: Schneider Electric

Technical Documents: Datasheet-daddb092(datasheets) Product Environmental Profile-644dea9f(datasheets)

13 - In Stock pcs
Price:
£ 93.07
Units Per Unit Price
1 - 9 £ 93.07
10 - 19 £ 90.49
20 + £ 88.04
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Monitoring Application Voltage
Electrical Phase 1
Voltage Sensing Range 65 → 260V ac/dc
Contact Configuration SPDT
Voltage Sensitivity Overvoltage, Self Powered, Undervoltage
Mounting Type DIN Rail
Time Delay 0.1 → 10s
Series Harmony Control
Better World Verification Green Premium
Better World Product Yes
Terminal Type Screw
Minimum Operating Temperature -20°C
Width 17.5mm
Maximum Operating Temperature +50°C
Dimensions 72 x 17.5 x 90mm
Maximum Voltage Sensed 260V ac/dc
Height 90mm
Length 72mm
Minimum Voltage Sensed 65V ac/dc
Operating Temperature Range +50°C

More Information

RM17 U Series Voltage Control Relay Schneider Electric RM17 U single-phase and direct current voltage control relays that monitor over-voltage and under-voltage, with or without memory, or that operate in window mode. The overvoltage and undervoltage threshold values are adjusted via two graduated potentiometers that directly read the Un being monitored. Checks its own power supply
Clear hinged front cover
LED display of output status
DIN Rail mounting
