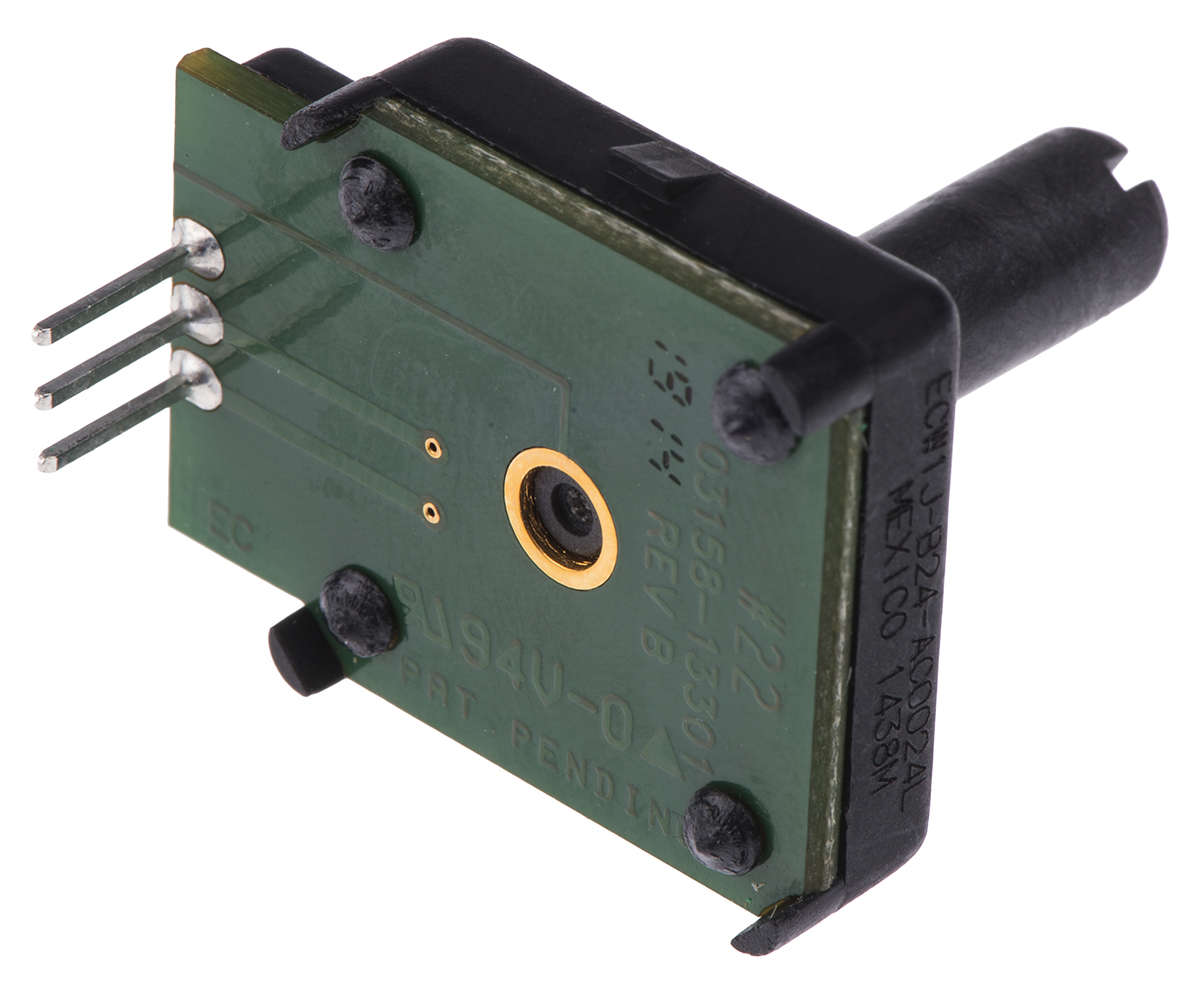

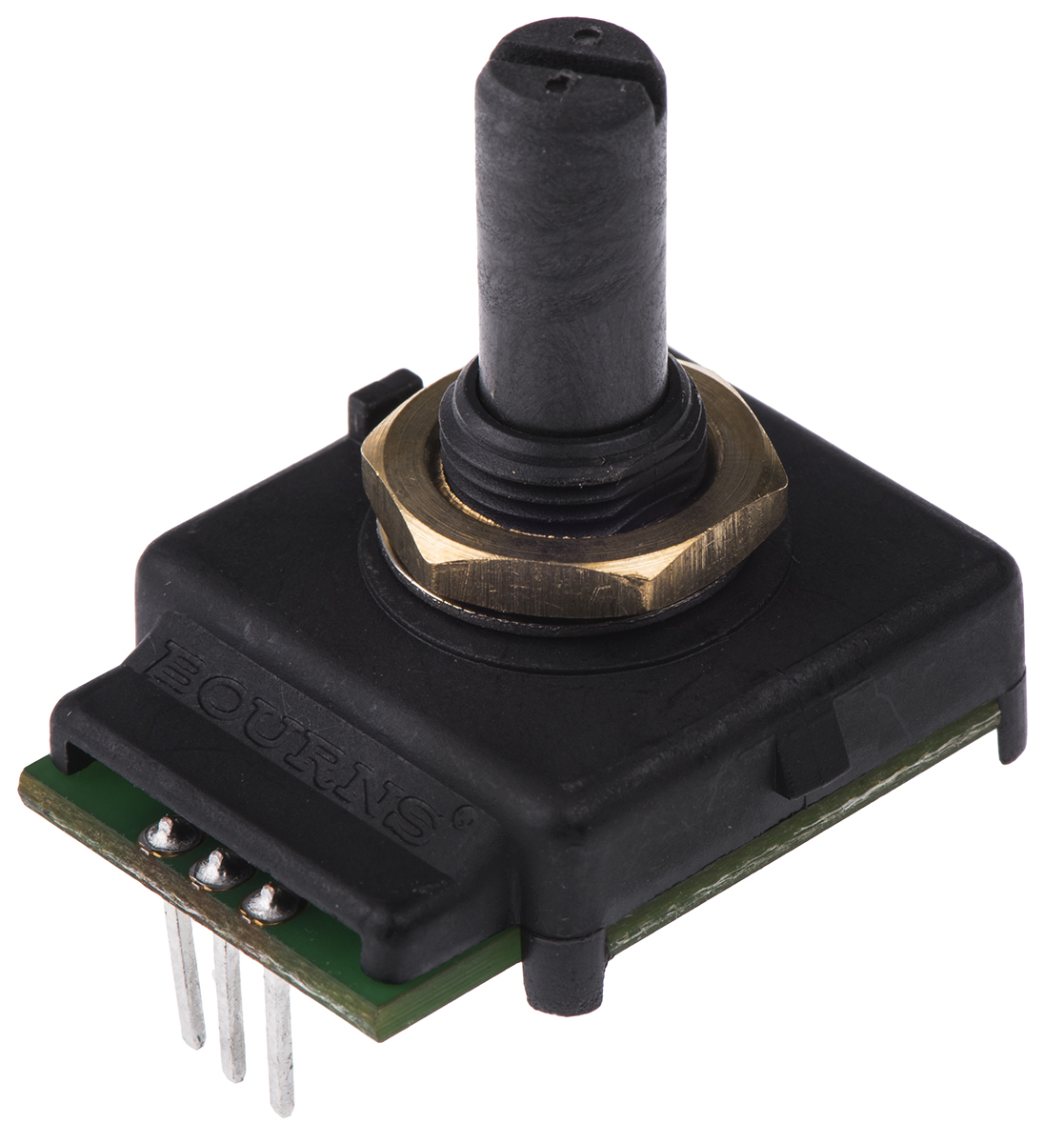

Bourns Incremental Incremental Encoder, 24 ppr, Quadrature Signal, Solid Type, 6.35mm Shaft

ecw1j-b24-ac0024l Bourns Incremental Incremental Encoder, 24 ppr, Quadrature Signal, Solid Type, 6.35mm Shaft
ECW1J-B24-AC0024L
ECW1J-B24-AC0024L
HT29674
brand logo

HT Part No. HT29674

Mfr. Part No. ECW1J-B24-AC0024L

Manufacturer: Bourns

Technical Documents: Datasheet-551323a8(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Encoder Technology Incremental
Pulses Per Revolution 24
Maximum Revolutions 120rpm
Output Signal Type Quadrature
Shaft Type Solid
Shaft Diameter 6.35mm
Resolution 2 Bit
IP Rating IP40
Overall Height 27.51mm
Overall Width 28.49mm
Overall Depth 22.2mm
Minimum Operating Temperature -40°C
Mounting Type Panel Mount
Maximum Operating Temperature +85°C
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=68873&DisplayLogo=False

More Information

ECW - Digital Contacting Encoder ECW series incremental digital contacting encoder with quadrature output, a long operating life, robust construction and bushing mount. These ECW incremental digital contacting encoders have various shaft styles, please refer to datasheet for details and are available with a PCB mounting bracket (see stock numbers 692-8614, 692-8617 and 827-4975) Incremental encoder / quadrature output
Exceptionally long operating life
Bushing Mount
