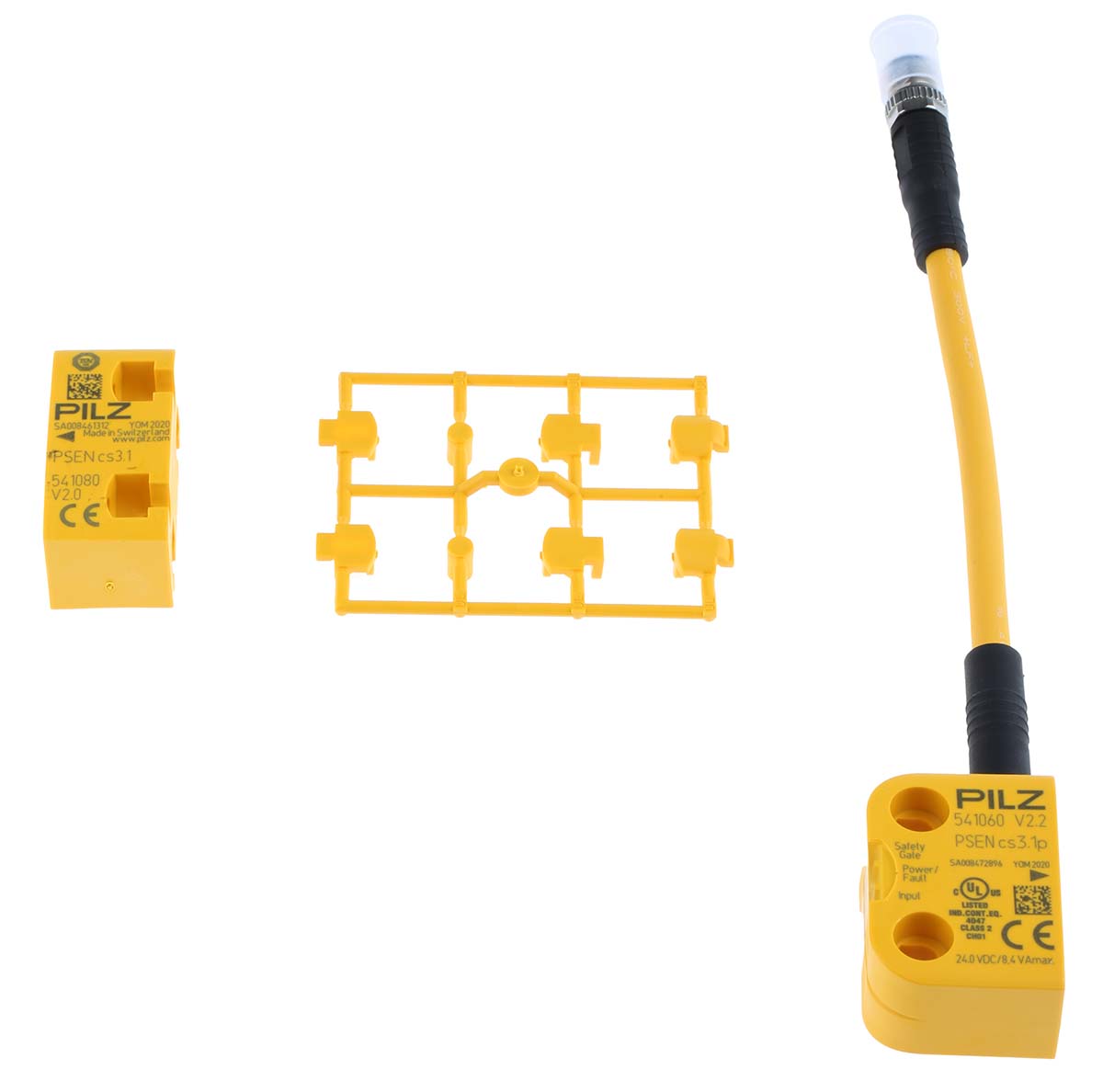

Pilz Non-contact Switch
The Pilz PSENcode series non-contact safety switch has an assured switching distance of 8mm. It has 2OSSD RFIDsafety outputs. It is coded and the only switch with an actuator from the PSEN cs3.1 series.
Supplied with actuator
Caution:
The safety level PLe (Cat. 4)/SIL CL 3 is only achieved if the safety outputs use 2-channel processing.
Features and Benefits
Input The supply voltage is 24VDC
Transponder technology for presence detection (safety function)
Dual-channel operation
Two safety inputs for series connection of multiple safety switches
Two safety outputs
Only one signal output
LED display for state of the actuator, state of the inputs and The supply voltage/fault
Only one direction of actuation
Connection type is M8, 8-pin male
Housing material is plastic
Operating temperature ranges between -25°C and 70°C
Applications
Industrial environment
Certifications
IP6K rated
EN 60947-5-3
EN 62061 SIL CL 3
EN ISO 13849-1
PLe Cat. 4
EN ISO14119
CE certified
cULus approved
TÜV certified
FCC certified
EAC (Eurasian) certified
BG certified
CCC certified
