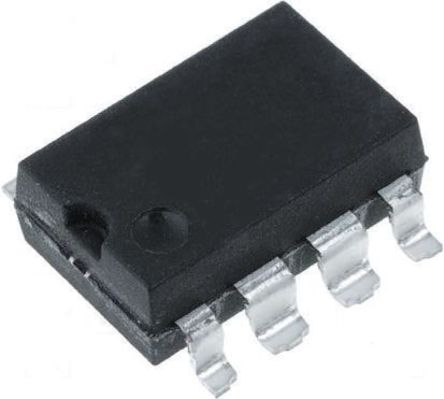

HT Part No. HT24707
Mfr. Part No. 6N137SDM
Manufacturer: onsemi
Technical Documents: Single-Channel 6N137M, HCPL2601M, HCPL2611M Dual-Channel HCPL2630M, HCPL2631M, High Speed 10MBit/s Logic Gate Optocouplers Data Sheet-e5931516(datasheets)
| Product Attributes | |
|---|---|
| Mounting Type | Surface Mount |
| Output Device | Logic Gate |
| Maximum Forward Voltage | 1.8V |
| Number of Channels | 1 |
| Number of Pins | 8 |
| Package Type | DIP |
| Input Current Type | DC |
| Typical Rise Time | 30ns |
| Maximum Input Current | 30 mA |
| Isolation Voltage | 5 kVrms |
| Logic Output | Yes |
| Typical Fall Time | 10ns |
| Series | 6N137 |
