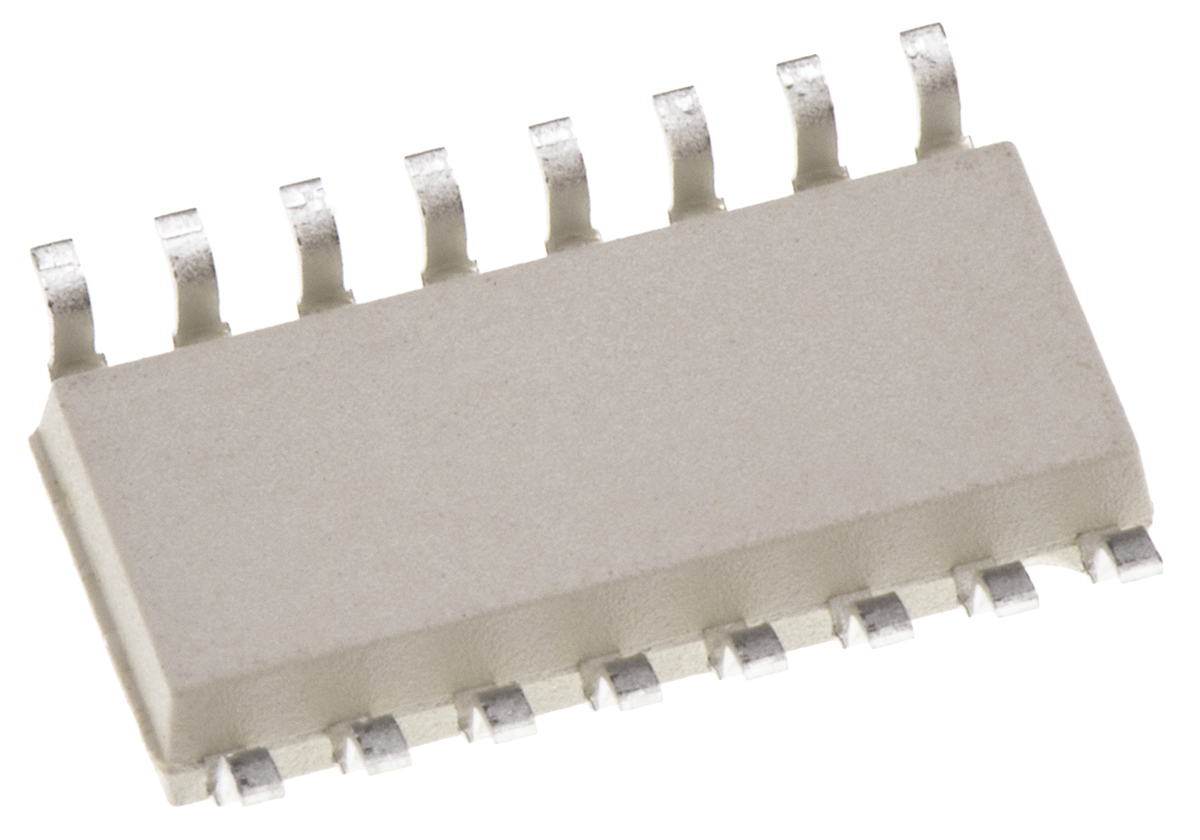

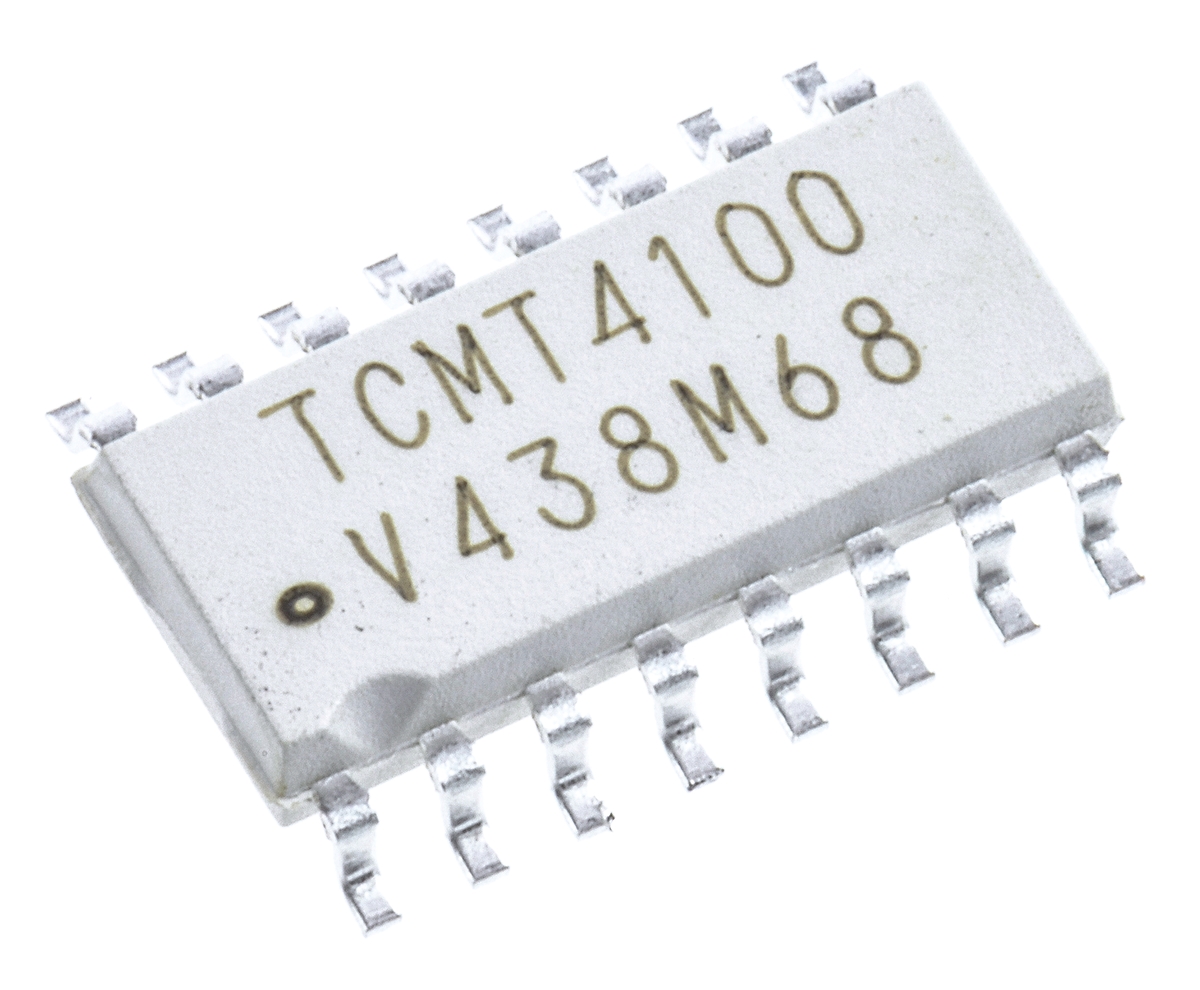

Vishay, TCMT4100 DC Input Transistor Output Quad Optocoupler, Surface Mount, 16-Pin Mini-Flat

tcmt4100 Vishay, TCMT4100 DC Input Transistor Output Quad Optocoupler, Surface Mount, 16-Pin Mini-Flat
TCMT4100
brand logo

HT Part No. HT30142

Mfr. Part No. TCMT4100

Manufacturer: Vishay

Technical Documents: Datasheet-7cb96d0b(datasheets) NOTICE This product is not for general use by consumers-7e2ee795(datasheets)

6000 - In Stock pcs
Price:
£ 0.52
Units Per Unit Price
2000 + £ 0.52
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Mounting Type Surface Mount
Output Device Transistor
Maximum Forward Voltage 1.6V
Number of Channels 4
Number of Pins 16
Package Type Mini-Flat
Input Current Type DC
Typical Rise Time 3µs
Maximum Input Current 60 mA
Isolation Voltage 3.75 kVrms
Maximum Current Transfer Ratio 600%
Minimum Current Transfer Ratio 50%
Typical Fall Time 4.7µs
Series TCMT

More Information

Optocoupler, Transistor Output, TCMT Series, Vishay Semiconductor The TCMT410. series consist of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode in a 16 pin (quad channel) package. Features: • Low profile package (half pitch)
• AC isolation test voltage 3750 VRMS
• Low coupling capacitance of typical 0.3 pF
• Current transfer ratio (CTR) selected into groups
• Low temperature coefficient of CTR
• Wide ambient temperature range Applications: • Programmable logic controllers
• Modems
• Answering machines
• General applications
