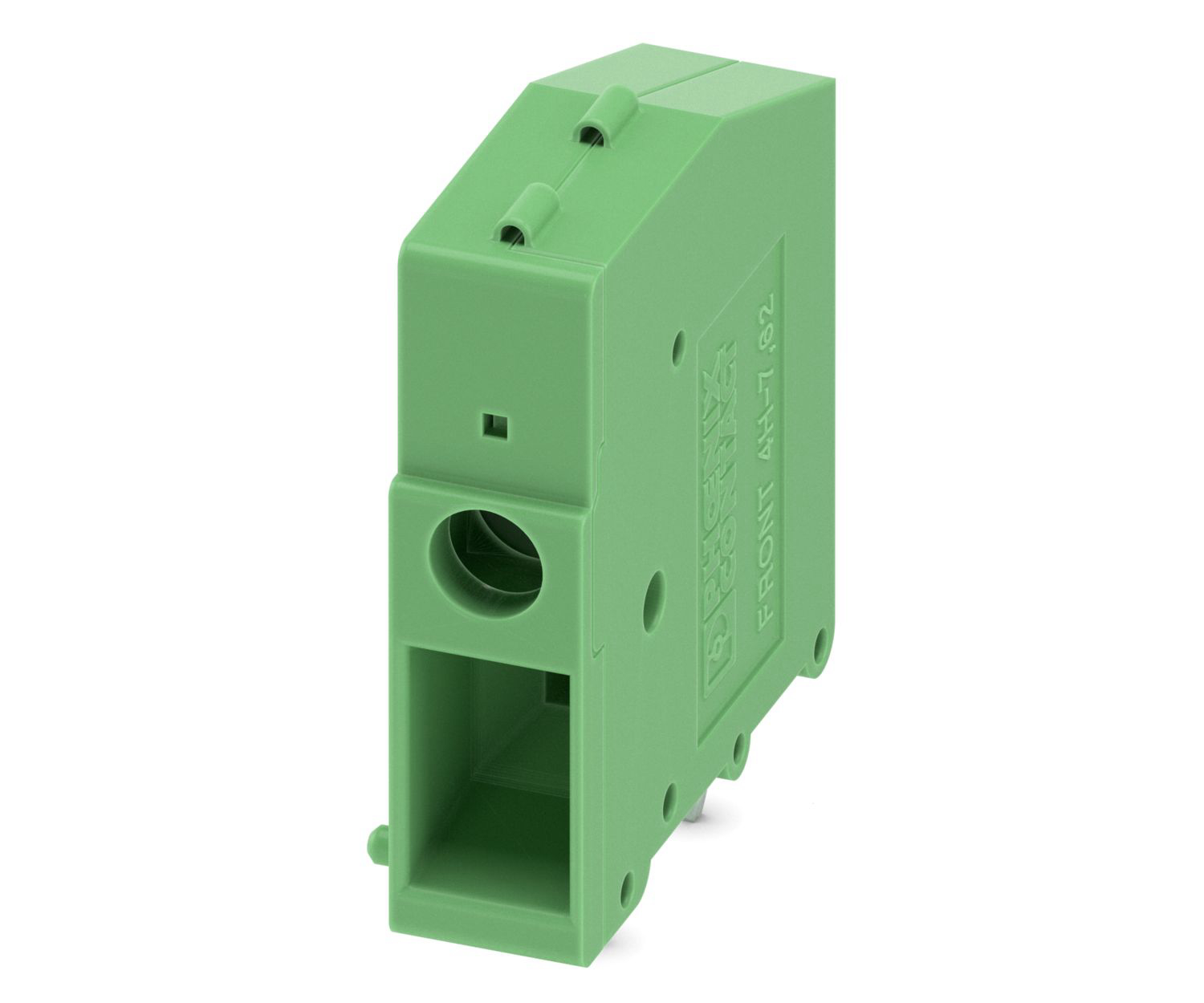

Phoenix Contact FRONT 4-H-7.62 Series PCB Terminal Block, 1-Contact, 7.62mm Pitch, Through Hole Mount, 1-Row, Screw

1703034 Phoenix Contact FRONT 4-H-7.62 Series PCB Terminal Block, 1-Contact, 7.62mm Pitch, Through Hole Mount, 1-Row, Screw
1703034
brand logo

HT Part No. HT18255

Mfr. Part No. 1703034

Manufacturer: Phoenix Contact

Technical Documents: Datasheet-2edd09ca(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 1.53
Units Per Unit Price
50 - 249 £ 1.53
250 + £ 1.41
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Number of Contacts 1
Pitch 7.62mm
Number of Rows 1
Mounting Type Through Hole
Gender Male
Termination Method Screw
Type PCB Terminal Block
Current Rating 32A
Body Orientation Straight
Colour Green
Voltage Rating 630 V
Series FRONT 4-H-7.62
Length 26mm
Depth 33.4mm
Material Polyamide
Width 7.62mm

More Information

PCB terminal block, nominal current: 32 A, nom. voltage: 630 V, pitch: 7.62 mm, number of positions: 1, connection method: Front screw connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, colour: green. The article can be aligned to create different nos. of positions!
