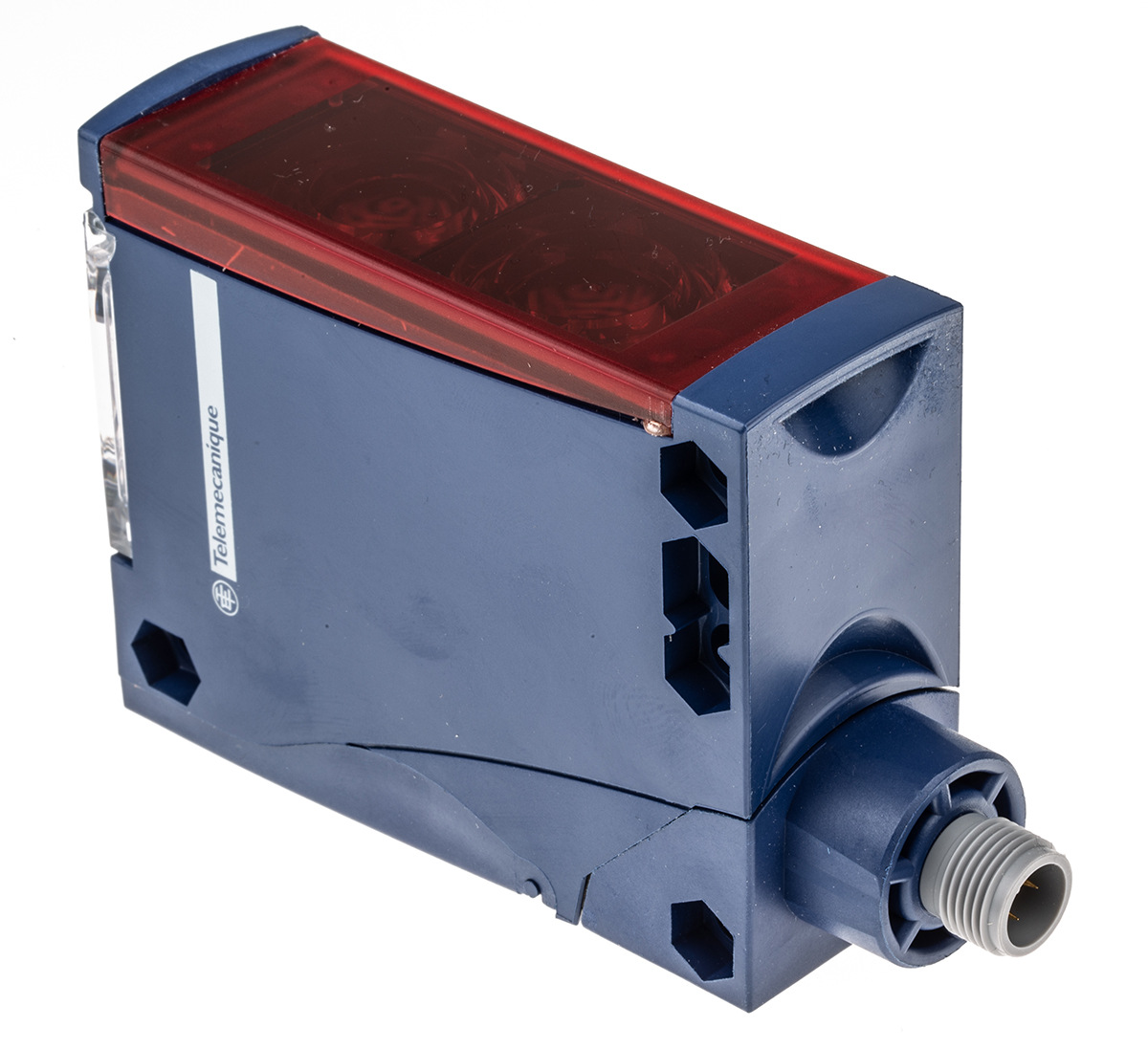

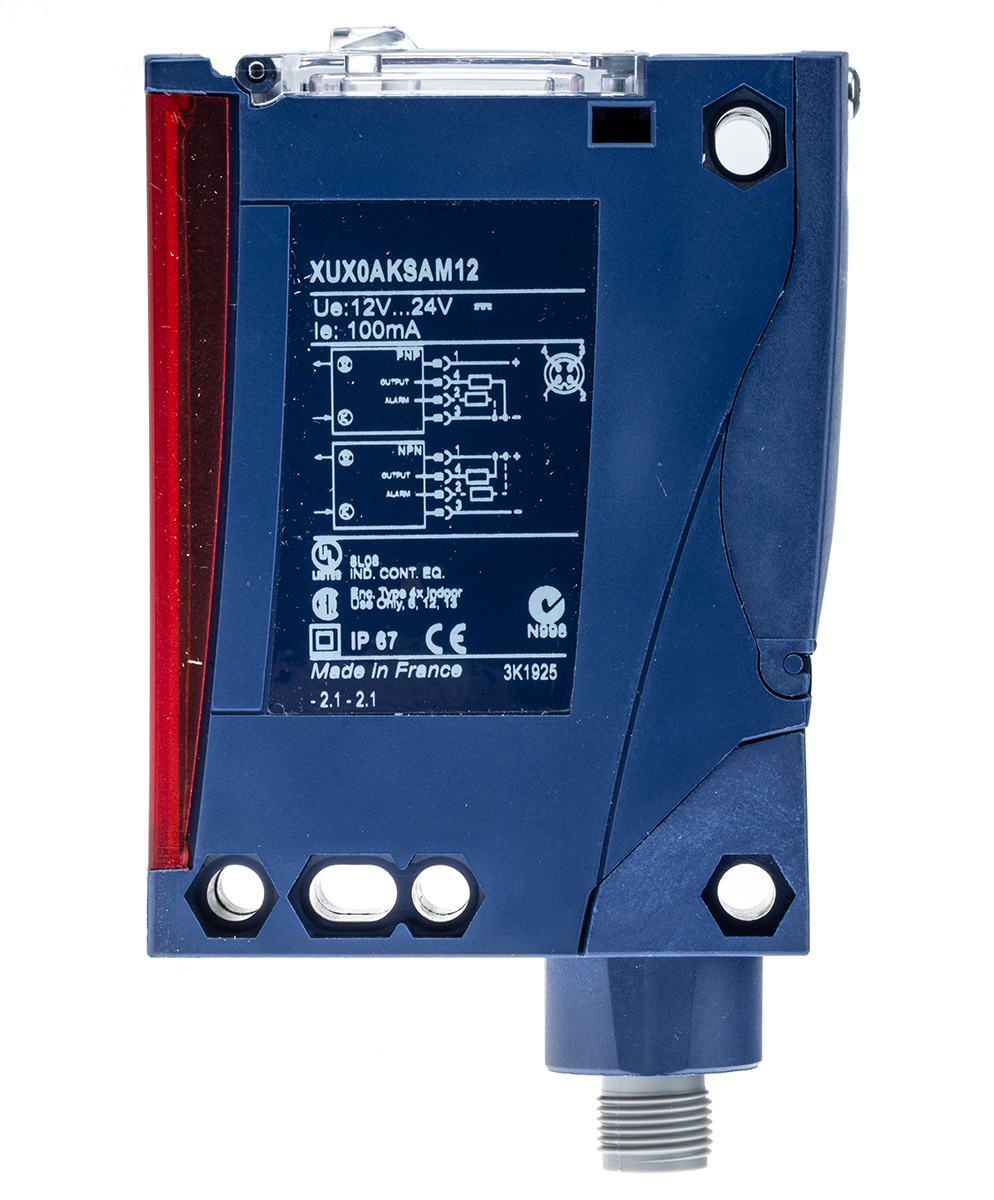

Telemecanique Sensors Multimode Photoelectric Sensor, Block Sensor, 1.3 m, 2 m, 11 m, 40 m Detection Range

xux0aksam12 Telemecanique Sensors Multimode Photoelectric Sensor, Block Sensor, 1.3 m, 2 m, 11 m, 40 m Detection Range
XUX0AKSAM12
XUX0AKSAM12
HT15833
HT15833
Photoelectric Sensors
brand logo

HT Part No. HT15833

Mfr. Part No. XUX0AKSAM12

Manufacturer: Telemecanique Sensors

Technical Documents: Connect & install the sensor Osiris XUX-421295bf(datasheets) Datasheet XUX0AKSAM12-d08775c9(datasheets) OsiSense XU Catalogue-6a77bfad(datasheets) OsiSense Sensing Guide-1f393554(datasheets) Product Environmental Profile-863f5bb8(datasheets) CAD Drawing_XUX0AKSAM12-188c728d(datasheets) Instruction_Sheet-1-2491c032(datasheets) User_Guide-1-563b61be(datasheets) User_Guide-2-a817fbe7(datasheets) Automation_and_Control_Guide-1-86651c98(datasheets)

4 - In Stock pcs
Price:
£ 154.57
Units Per Unit Price
1 + £ 154.57
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Sensor Style Block
Detection Type Multimode
Detection Range 1.3 m, 2 m, 11 m, 40 m
Output Type NPN/PNP
Electrical Connection M12 4 Pin Connector
Maximum DC Voltage 24V
Light Source Infrared
IP Rating IP65, IP67
Maximum Current 100 mA
Response Time <2 ms
Maximum Operating Temperature +55°C
Minimum Operating Temperature -25°C
Housing Material PBT

More Information

Telemecanique Photoelectric OsiSense XU A range of OsiSense XU photo-electric sensors from Telemechanique. Features and Benefits Four modes of detection in one unit Easy set-up at the touch of a button Self teach precise set-up 'multi-mode detection' Sensing distance dependent on mode of operation Through Beam Functionality using additional light source (thru-beam accessory) Programmable NO/NC switching Connection: Screw clamp terminals or plug-in connector (M12 4 pin male) IP67 Protection rating Operating temperature range -15 to +55 °C Stock number 444-3619 has a timing function See 3D adjustment accessories for mounting brackets Product Application Information The OsiSense XU series from Telemechanique is ideal for use in small and medium industrial machines. They are also often used in various applications within packaging, handling, assembly, food and beverage, and conveying.
