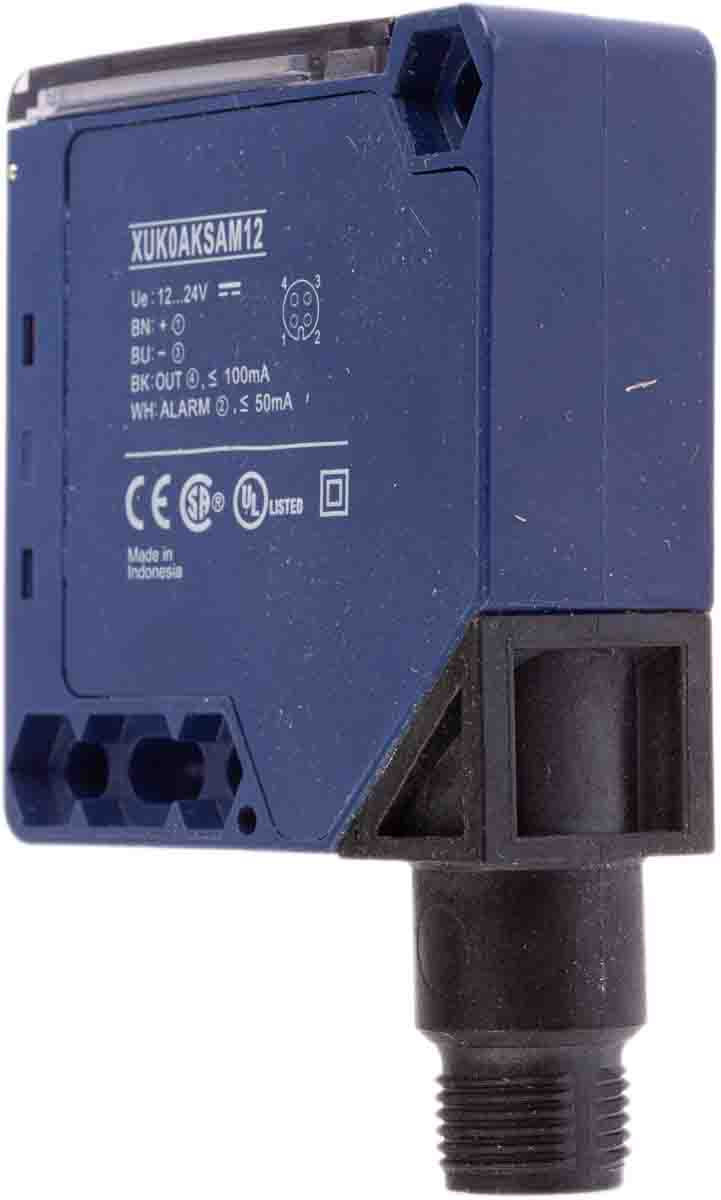

HT Part No. HT15854

Mfr. Part No. XUK0AKSAM12

Manufacturer: Telemecanique Sensors

Technical Documents: Osiconcept photo-electric sensors XUK-1b913a67(datasheets) Photo-electric sensor XUK0AKSAM12 Data Sheet-ce6a5b46(datasheets) OsiSense XU Catalogue-6a77bfad(datasheets) OsiSense Sensing Guide-897eed83(datasheets) Instruction Sheet - XUM0APSAL2-c6fdb918(datasheets) Catalogue - Photo-Electric Sensors-94387994(datasheets) CAD Drawing_XUK0AKSAM12-fd7ce9c8(datasheets) Instruction_Sheet-1-3b3c41f7(datasheets) Instruction_Sheet-2-731940a9(datasheets) User_Guide-1-49f520e2(datasheets) User_Guide-2-4ac50af3(datasheets) Automation_and_Control_Guide-1-305c7039(datasheets)

22 - In Stock pcs
Price:
£ 115.64
Units Per Unit Price
1 - 4 £ 115.64
5 + £ 110.96
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Sensor Style Compact
Detection Type Through Beam
Detection Range 280 mm → 30 m
Output Type NPN/PNP
Electrical Connection M12 4 Pin Connector
Maximum DC Voltage 24V
Light Source Infrared
IP Rating IP65
Maximum Current 100 mA
Response Time <2 ms
Maximum Operating Temperature +55°C
Mounting Type Surface Mount
Housing Material PBT
Minimum Operating Temperature -25°C
Thread Size M12
Standards Met RoHS Compliant

More Information

Compact 50 x 50 Plastic Body Four modes of detection in one unit
Easy set-up at the touch of a button
Self teach precise set-up 'multi-mode detection'
Sensing distance dependent on mode of operation
Through Beam Functionality using additional light source (thru-beam accessory)
Programmable NO/NC switching
Connection: pre-cabled or plug-in connector (M12 4 pin male)
IP67 Protection rating
Operating temperature range -15 → +55 °C
