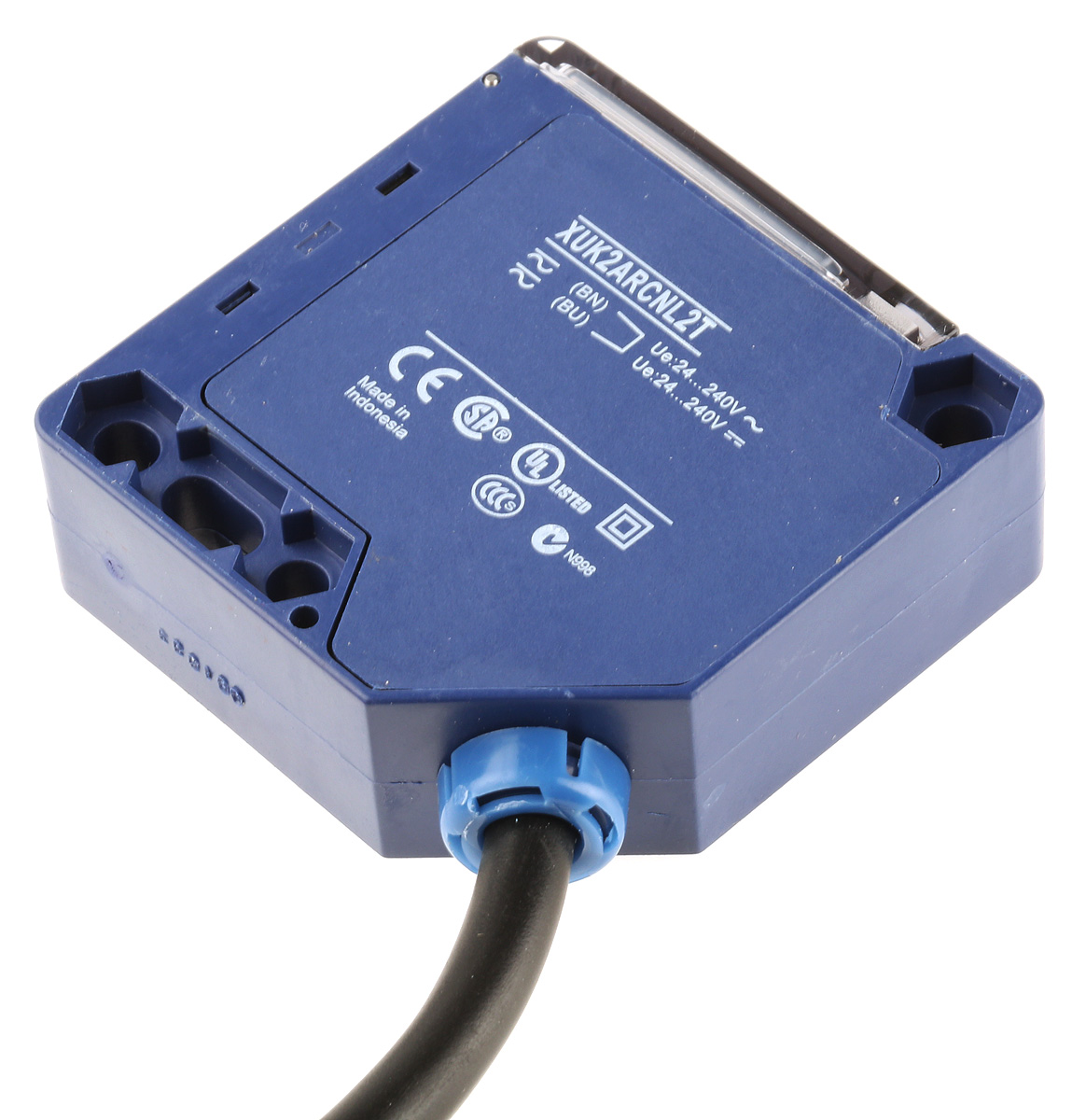

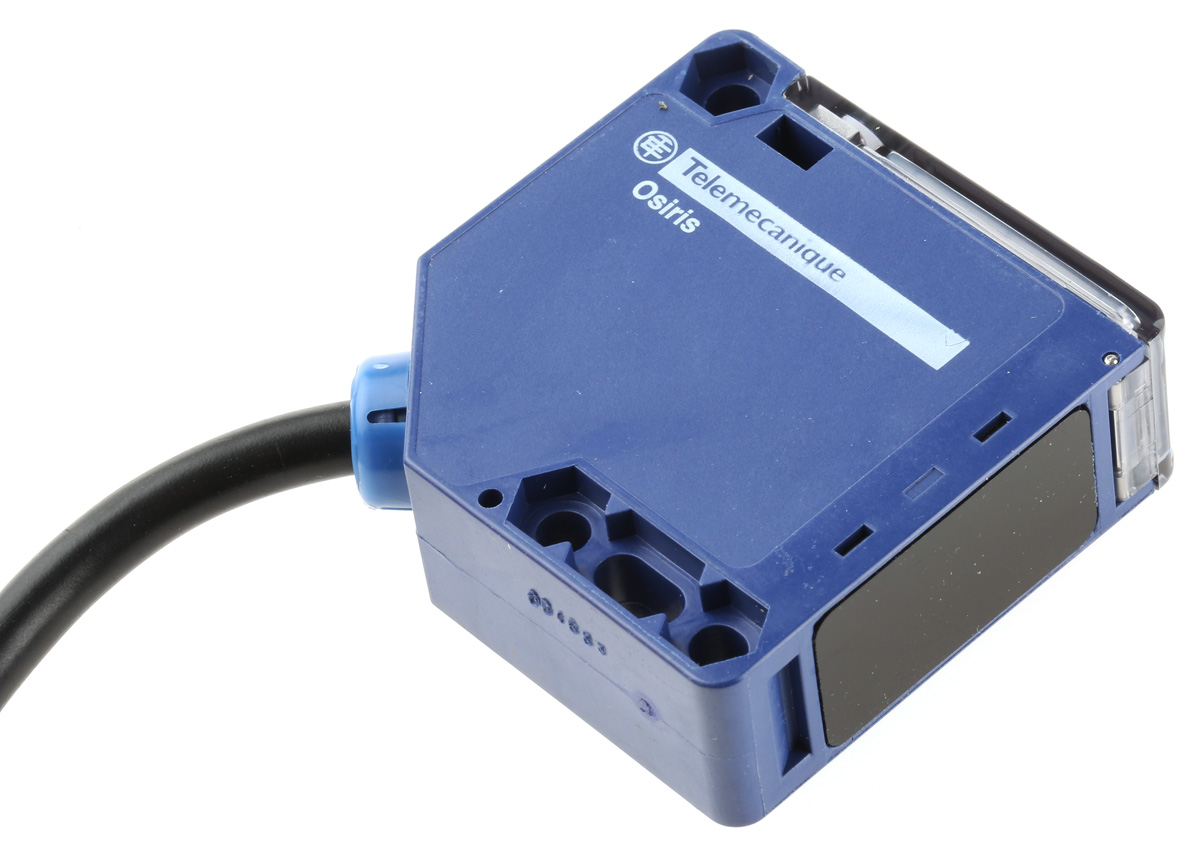

XUK Compact 50 x 50
Single mode function
3 wire dc supply
Plastic body
Size: 50x50mm compact design
Credit card transactions are currently being paused for maintenance. Please proceed with 'Cash with Order' while we restore the service.
HT Part No. HT27404
Mfr. Part No. XUK2ARCNL2T
Manufacturer: Telemecanique Sensors
Technical Documents: XUK2ARCNL2T-Datasheet-7563faf7(datasheets) OsiSense XU Catalogue-6a77bfad(datasheets) OsiSense Sensing Guide-de14466c(datasheets) CAD Drawing_XUK2ARCNL2T-ce66e2e7(datasheets) Instruction_Sheet-1-1ed749a4(datasheets) Brochure-ebbefa57(datasheets)
| Product Attributes | |
|---|---|
| Sensor Style | Compact |
| Detection Type | Through Beam |
| Detection Range | 30 m |
| Output Type | Solid State, Thru beam photo-electric sensor transmitter |
| Electrical Connection | 2 Wire Cable 2 m |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 240V |
| Light Source | Infrared |
| IP Rating | IP65 |
| Maximum Current | 3 A |
| Response Time | <25 ms |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +55°C |
| Housing Material | PBT |
| 3D Model | https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=21569&DisplayLogo=False |
