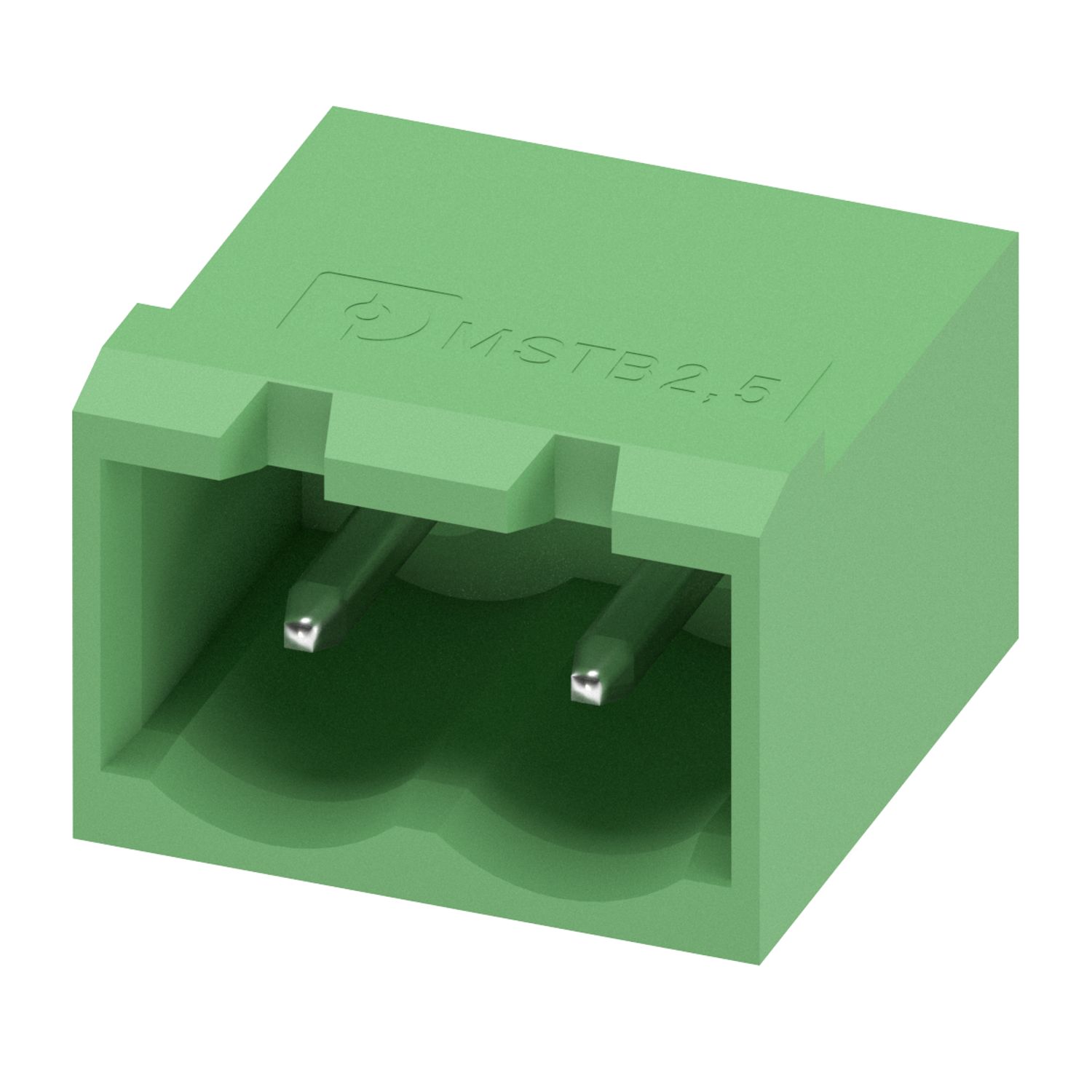

Phoenix Contact 5.08mm Pitch 2 Way Right Angle Pluggable Terminal Block, Header, Wave Soldering, Solder Termination

1757242 Phoenix Contact 5.08mm Pitch 2 Way Right Angle Pluggable Terminal Block, Header, Wave Soldering, Solder Termination
1757242
1757242
HT19248
HT19248
Pluggable Terminal Blocks
Pluggable Terminal Blocks
1757242 Phoenix Contact 5.08mm Pitch 2 Way Right Angle Pluggable Terminal Block, Header, Wave Soldering, Solder TerminationPhoenix Contact
brand logo

HT Part No. HT19248

Mfr. Part No. 1757242

Manufacturer: Phoenix Contact

Technical Documents: Datasheet 1757242-e85f9fd5(datasheets) Line Drawing - 1757242-fca24ca9(datasheets)

540 - In Stock pcs
Price:
£ 0.58
Units Per Unit Price
5 - 74 £ 0.58
75 - 249 £ 0.52
250 + £ 0.48
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Pluggable Terminal Block Type Header
Number of Contacts 2
Pitch 5.08mm
Series MSTBA 2.5/ 2-G-5.08
Number of Rows 1
Body Orientation Right Angle
Mounting Type Wave Soldering
Termination Method Solder
Current Rating 12.0A
Voltage Rating 320 V
Colour Green
Contact Material Copper Alloy
Contact Plating Tin
Material Copper Alloy

More Information

Phoenix Contact CLASSIC COMBICON MSTBA 5.08mm Terminal Block Headers The MSTBA connectors from Phoenix Contact are from their COMICON range that is very well known for its simplicity but brilliant quality. These connectors feature multiple connection technologies so you can have maximum versatility to use one header for all applications. Not to mention, these connectors can come either in a right-angle orientation or straight orientations for maximum options. MSTBA connectors feature a closed contour to help ensure the plug-in connector has good stability.

The connectors are 5.08mm pitched, have tin-plated surfaces and are designed to be wave soldered onto PCB's. Features and benefits:
  • Well known mounting principle allows for worldwide use

  • The MSTBA series can be used for all PCB connectors thanks to allowing multiple connection technologies

  • Built from a durable Polyamide material

  • Linear pinning that is designed to be soldered by a wave soldering technique (through-hole)

  • Easy connection to the PCB - simply crimp your wire into a header and plug-in to these connectors
