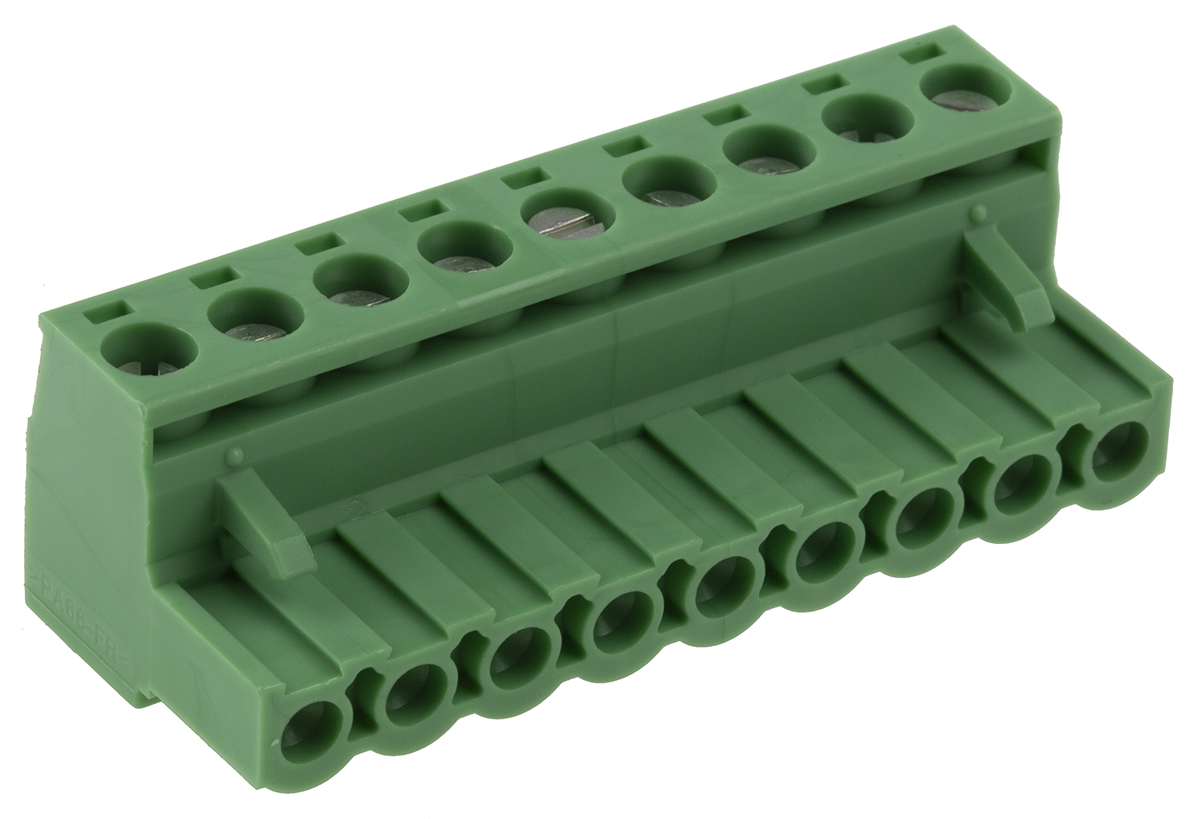

Phoenix Contact, 5.08mm Pitch, MSTB 2.5/ 9-ST-5.08, 9 Way, , Pluggable Terminal Block, Plug, Cable Mount, Screw

1757080 Phoenix Contact, 5.08mm Pitch, MSTB 2.5/ 9-ST-5.08, 9 Way, , Pluggable Terminal Block, Plug, Cable Mount, Screw
1757080
1757080
HT24281
HT24281
Pluggable Terminal Blocks
Pluggable Terminal Blocks
1757080 Phoenix Contact, 5.08mm Pitch, MSTB 2.5/ 9-ST-5.08, 9 Way, , Pluggable Terminal Block, Plug, Cable Mount, ScrewPhoenix Contact
brand logo

HT Part No. HT24281

Mfr. Part No. 1757080

Manufacturer: Phoenix Contact

Technical Documents: Datasheet 1757080-a00f1f9f(datasheets) 2204591_Line Drawing-f2f4e789(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 6.17
Units Per Unit Price
5 - 124 £ 6.17
125 - 374 £ 5.54
375 + £ 4.93
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Pluggable Terminal Block Type Plug
Number of Contacts 9
Pitch 5.08mm
Series MSTB 2.5/ 9-ST-5.08
Number of Rows 1
Body Orientation Straight
Mounting Type Cable Mount
Termination Method Screw
Current Rating 12A
Voltage Rating 630 V
Colour Green
Wire Size 30 → 12 AWG
Material Nylon
Contact Plating Tin
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=9901&DisplayLogo=False

More Information

Phoenix Contact CLASSIC COMBICON MSTB 5.08mm PCB Terminal Blocks A range of Classic COMBICON MSTB 5.08 mm pitch plug-in cable mount terminal block connectors from Phoenix Contact. The user-friendly PCB terminals feature a 0.2 mm² to 2.5 mm² screw connection that forms a standard plug-in system for 320 V (III/2). CLASSIC COMBICON MSTB - Features and Benefits: • Secure screw connection
• Well-known connection principle allows you to use worldwide
• Maximum contact force gives low temperature rise
• Long service life
