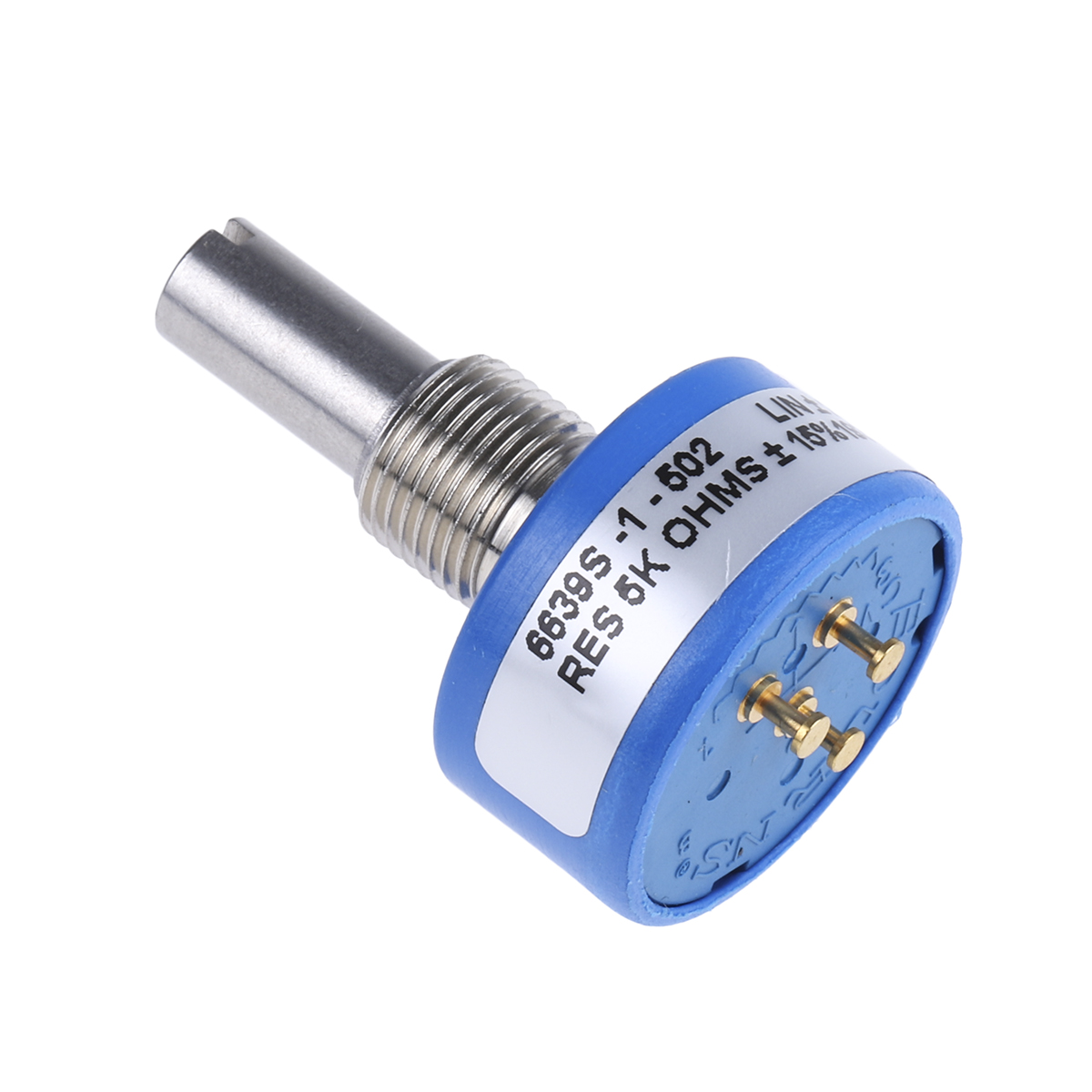

22mm Bush Mount 6639 Series
Precision bush mount continuous rotation potentiometer
Occupies minimal space behind the panel
Excellent rotational life - high quality rugged construction
Electrical angle 340° effective
Conductive plastic element
Credit card transactions are currently being paused for maintenance. Please proceed with 'Cash with Order' while we restore the service.
HT Part No. HT26947
Mfr. Part No. 6639S-1-502
Manufacturer: Bourns
Technical Documents: 6539/6639_Datasheet-955a526b(datasheets)
| Product Attributes | |
|---|---|
| Potentiometer Type | Rotary |
| Maximum Resistance | 5kΩ |
| Number of Gangs | 1 |
| Number of Turns | Continuous |
| Power Rating | 1W |
| Electrical Taper | Linear |
| Element Material | Conductive Plastic |
| Mounting Type | Panel Mount |
| Termination Style | Solder Turret |
| Shaft Length | 22.2mm |
| Shaft Diameter | 6.35 mm |
| Tolerance | ±15% |
| Series | 6639 |
| Actuator Type | Slotted Shaft |
| 3D Model | https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=68236&DisplayLogo=False |
