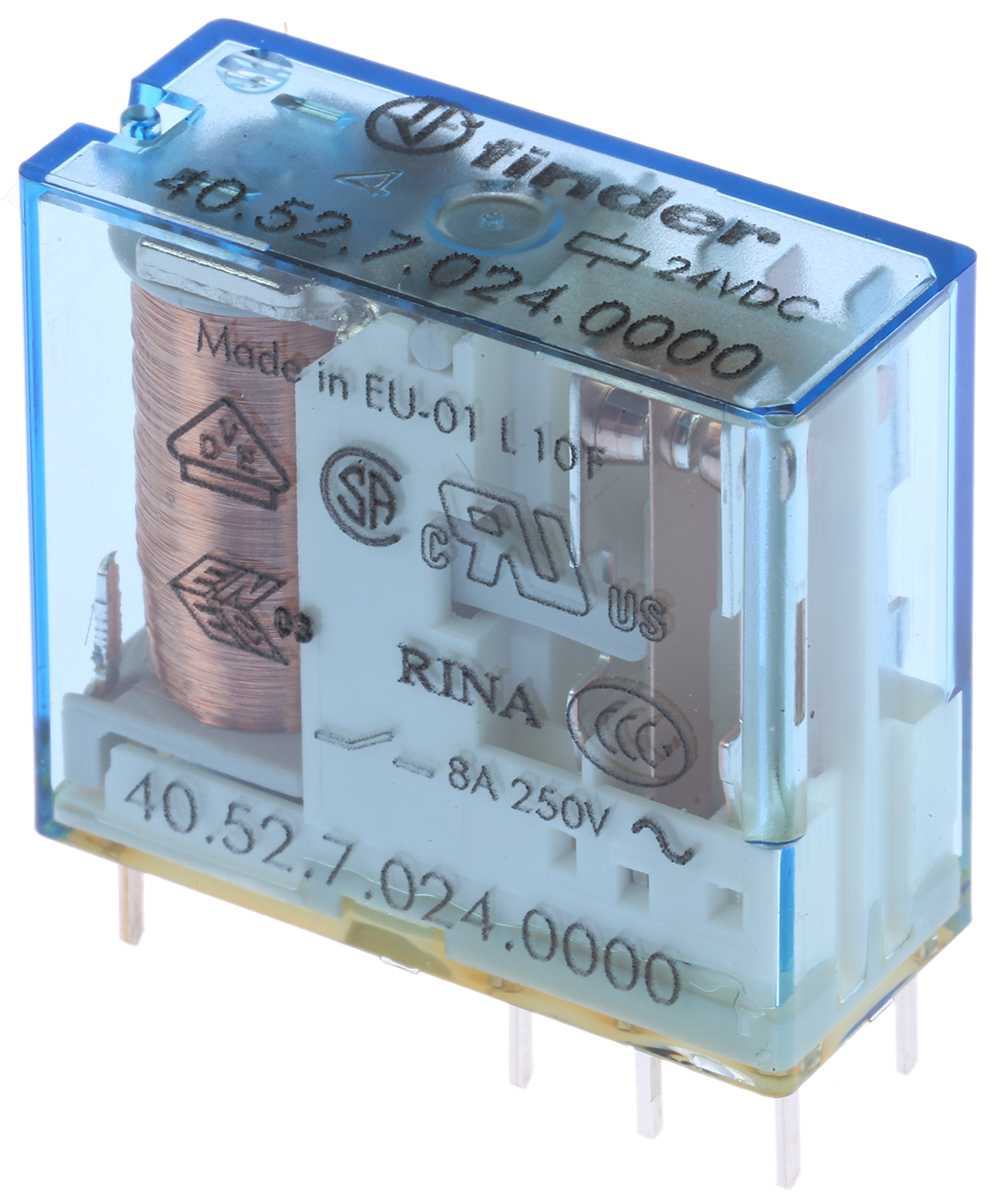

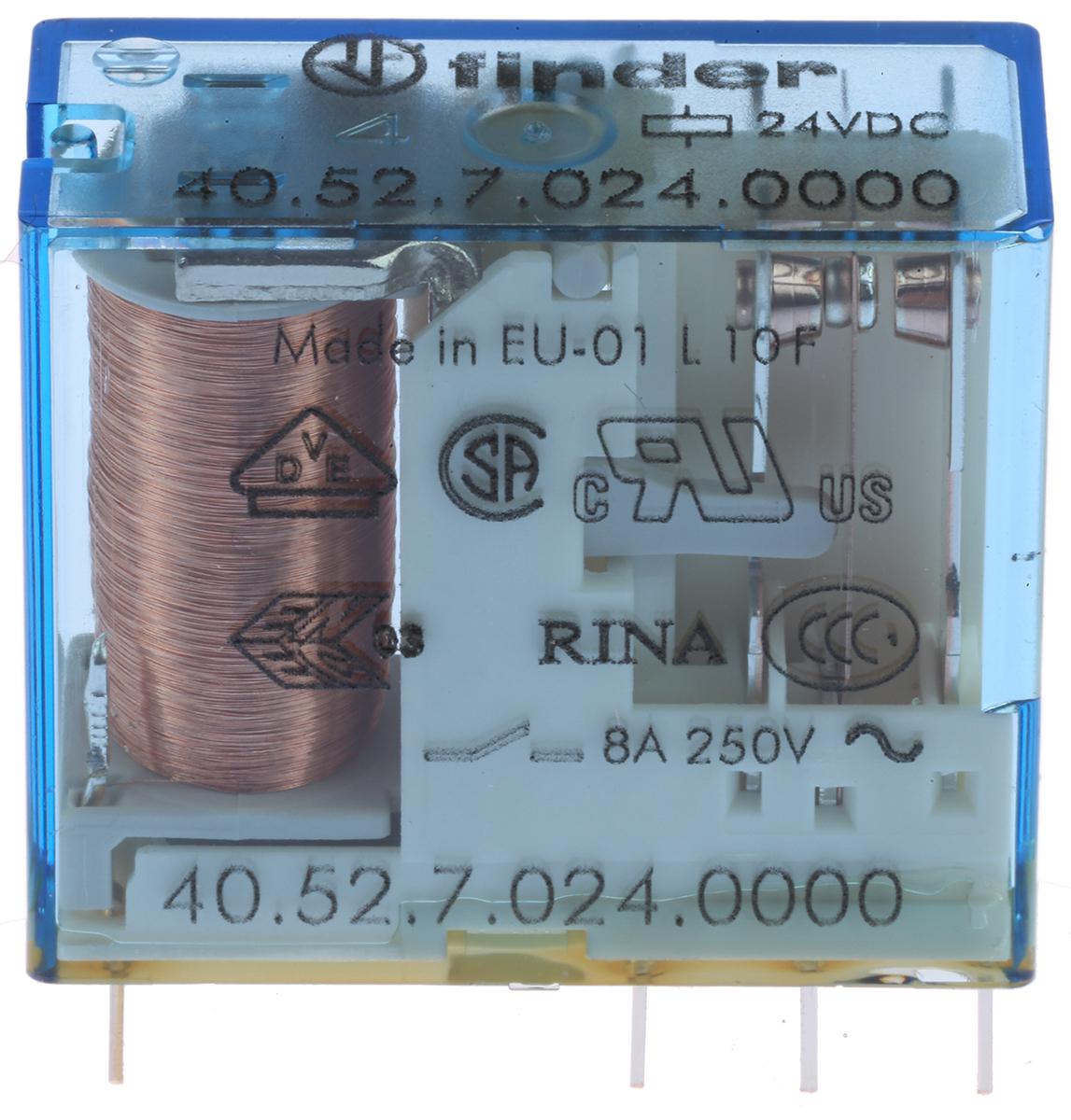

Finder DPDT Miniature PCB Relay
The Finder 40 series PCB mount non-latching relay has a contact configuration of DPDT. It is actuated with a 24VDC coil voltage and 8A switching current.
Features and Benefits
Insulation coil to contact is 6kV
Coil power is 500mW
Coil resistance is 1.2Kohm
Pin pitch is 5mm
Pin length is 3.5mm
Cadmium-free contact material
8mm creepage and clearance
Operating temperature ranging between -40°C and 85°C
Through hole terminal type
Applications
Automation for blinds, grilles and shutters
Door and gate openers
Electronic circuit boards
Medical and dentistry control panels
Panels for electrical distribution
Toys
Vending machines
Certifications
CSA certified
GOST approved
IMQ approved
RINA approved
SEV approved
UL approved
US approved
VDE approved
RT II (Flux proof)
