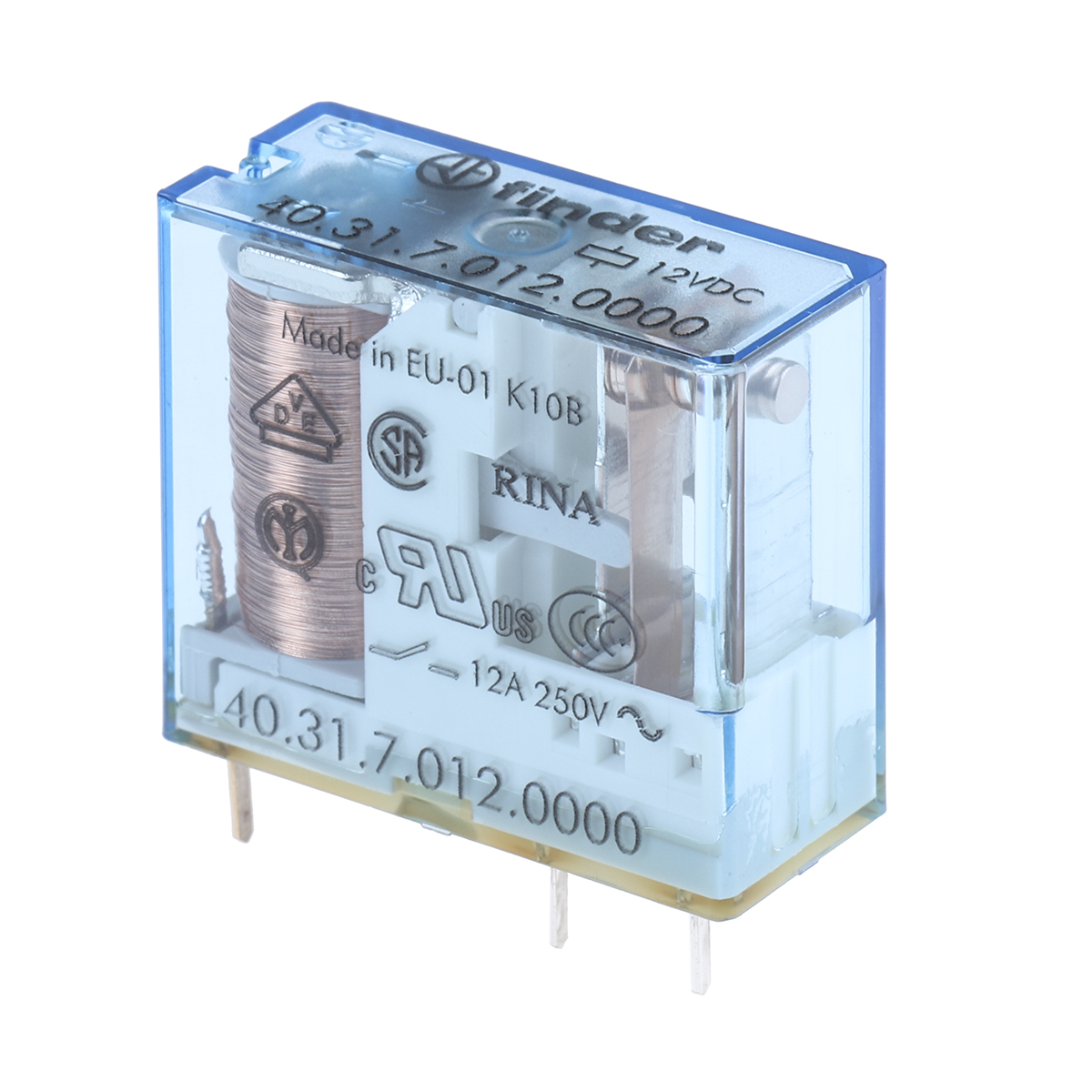

Finder PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPDT

403170120000 Finder PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPDT
40.31.7.012.0000
40.31.7.012.0000
HT15664
brand logo

HT Part No. HT15664

Mfr. Part No. 40.31.7.012.0000

Manufacturer: Finder

Technical Documents: BBJ NR146/LLP062/96-2599b445(datasheets) CSA-752eea25(datasheets) GOST-60d079ac(datasheets) IMQ INFORMATION-657b4855(datasheets) NEMKO 199851228-678163a3(datasheets) Lloyds Register of Shipping-ca5a9f2f(datasheets) RINA Certificate-c506d208(datasheets) Datasheet - S40-fa6ba958(datasheets)

378 - In Stock pcs
Price:
£ 4.31
Units Per Unit Price
1 - 24 £ 4.31
25 - 49 £ 3.79
50 + £ 3.65
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Coil Voltage 12V dc
Contact Configuration SPDT
Mounting Type PCB Mount
Switching Current 10A
Number of Poles 1
Latching No
Terminal Type Through Hole
Maximum Switching Voltage AC 400V ac
Length 29mm
Coil Resistance 300Ω
Coil Power 500mW
Isolation Coil To Contact 6kV
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
Contact Material Silver Alloy
Series 40 Series
Depth 12.4mm
Height 25mm
Maximum Switching Power AC 2.5 kVA
Application PCB

More Information

Finder SPDT Miniature PCB Relay The Finder 40 series PCB mount non-latching relay has a contact configuration of SPDT. It is actuated with a 12VDC coil voltage and 10A switching current. Features and Benefits Insulation coil to contact is 6kV
Coil power is 500mW
Coil resistance is 300ohm
Pin pitch is 3.5mm
Pin length 3.5mm
Cadmium-free contact material
8mm creepage and clearance
Operating temperature ranging between -40°C and 85°C
Through hole terminal type Applications Automation for blinds, grilles and shutters
Door and gate openers
Electronic circuit boards
Medical and dentistry control panels
Panels for electrical distribution
Toys
Vending machines Certifications CSA certified
GOST approved
IMQ approved
RINA approved
SEV approved
UL approved
US approved
VDE approved
