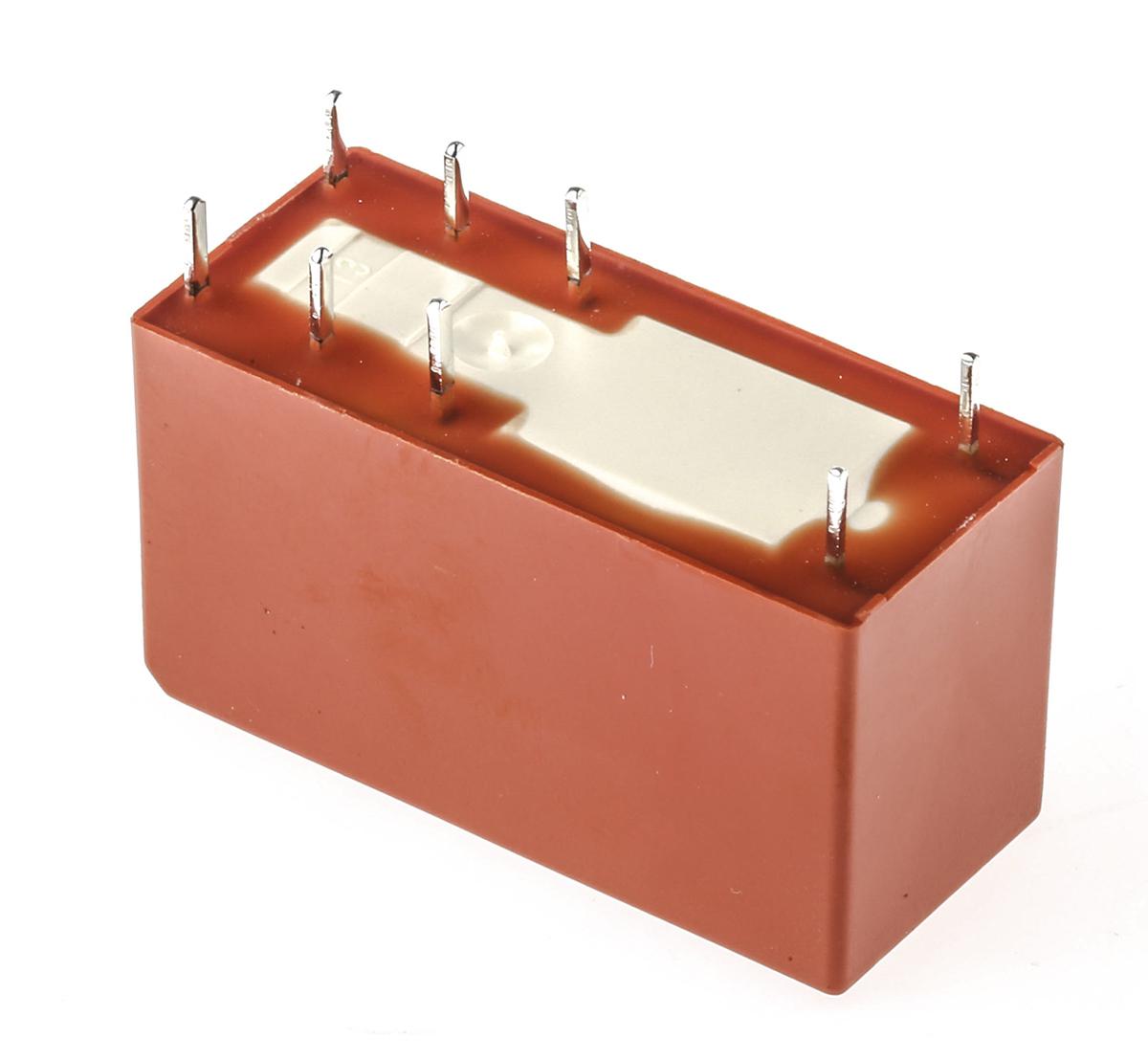

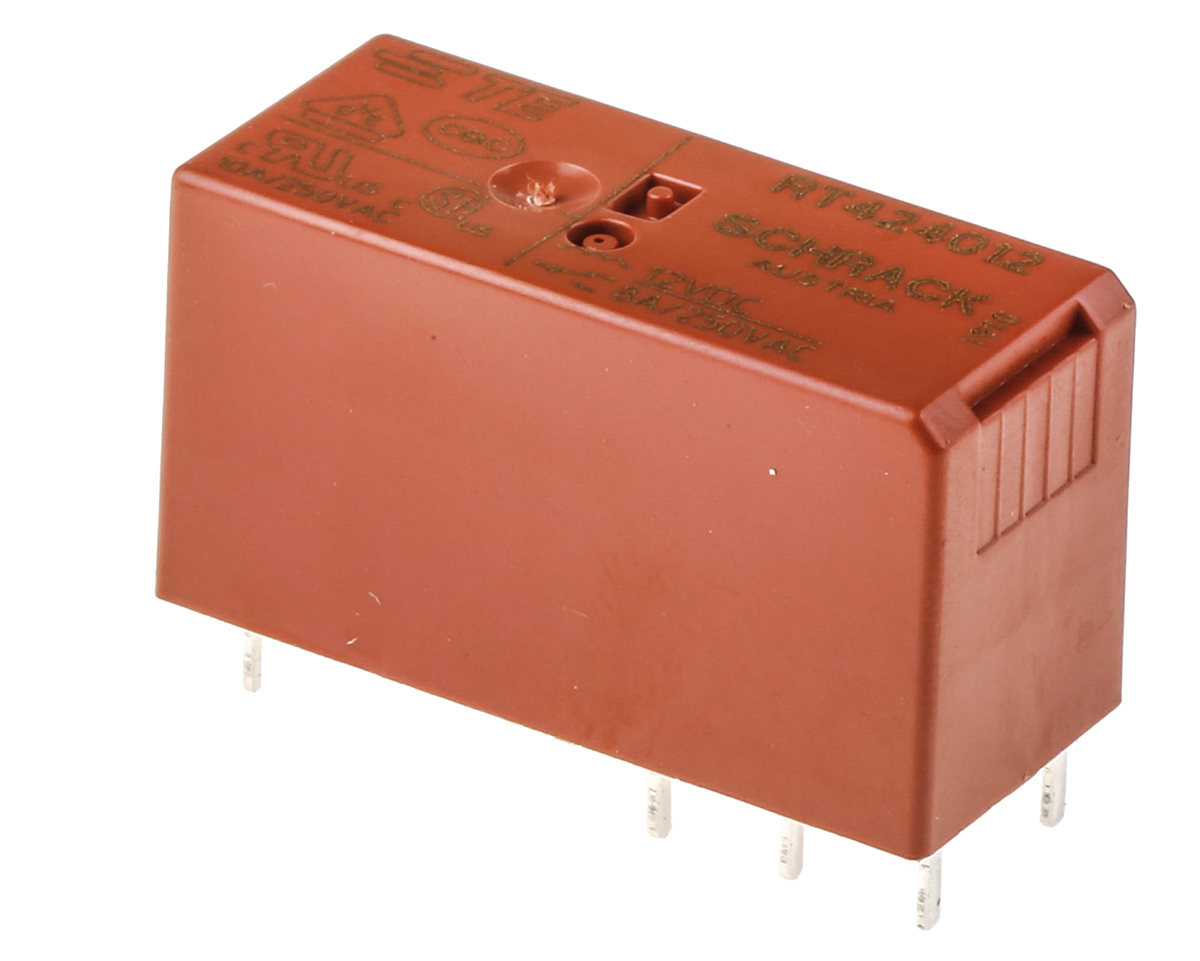

TE Connectivity PCB Mount Power Relay, 12V dc Coil, 8A Switching Current, DPDT

rt424012 TE Connectivity PCB Mount Power Relay, 12V dc Coil, 8A Switching Current, DPDT
RT424012
RT424012
HT18580
brand logo

HT Part No. HT18580

Mfr. Part No. RT424012

Manufacturer: TE Connectivity

Technical Documents: Datasheet-b68d8614(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 3.30
Units Per Unit Price
20 - 39 £ 3.30
40 - 99 £ 3.14
100 + £ 2.81
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Coil Voltage 12V dc
Contact Configuration DPDT
Mounting Type PCB Mount
Switching Current 8A
Number of Poles 2
Latching No
Terminal Type Through Hole
Length 29mm
Coil Resistance 360Ω
Contact Material Silver Nickel Alloy
Depth 12.7mm
Height 15.7mm
Series RT2
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Maximum Switching Power AC 2 kVA
Application Power

More Information

TE Connectivity Non-latching Relay The TE Connectivity RT2 series PCB mount non-latching relay has contact configuration of DPDT. It is actuated with 12VDC coil voltage and 8A switching current. This general-purpose power relay has pinning of 5mm.
Note:
Part number (RT... F) F= Coil insulation system according to UL class F Features and Benefits Coil resistance is 360ohm
Contact material is silver nickel (AgNi)
Creepage and clearance between contact and coil is ≥10/10mm
Operating temperature ranges between -40°C and 85°C
Flux resistant
Through hole terminal type Applications Boiler control
Timers
Garage door control
POS automation
Interface modules Certifications UL approved
CSA certified
VDE
