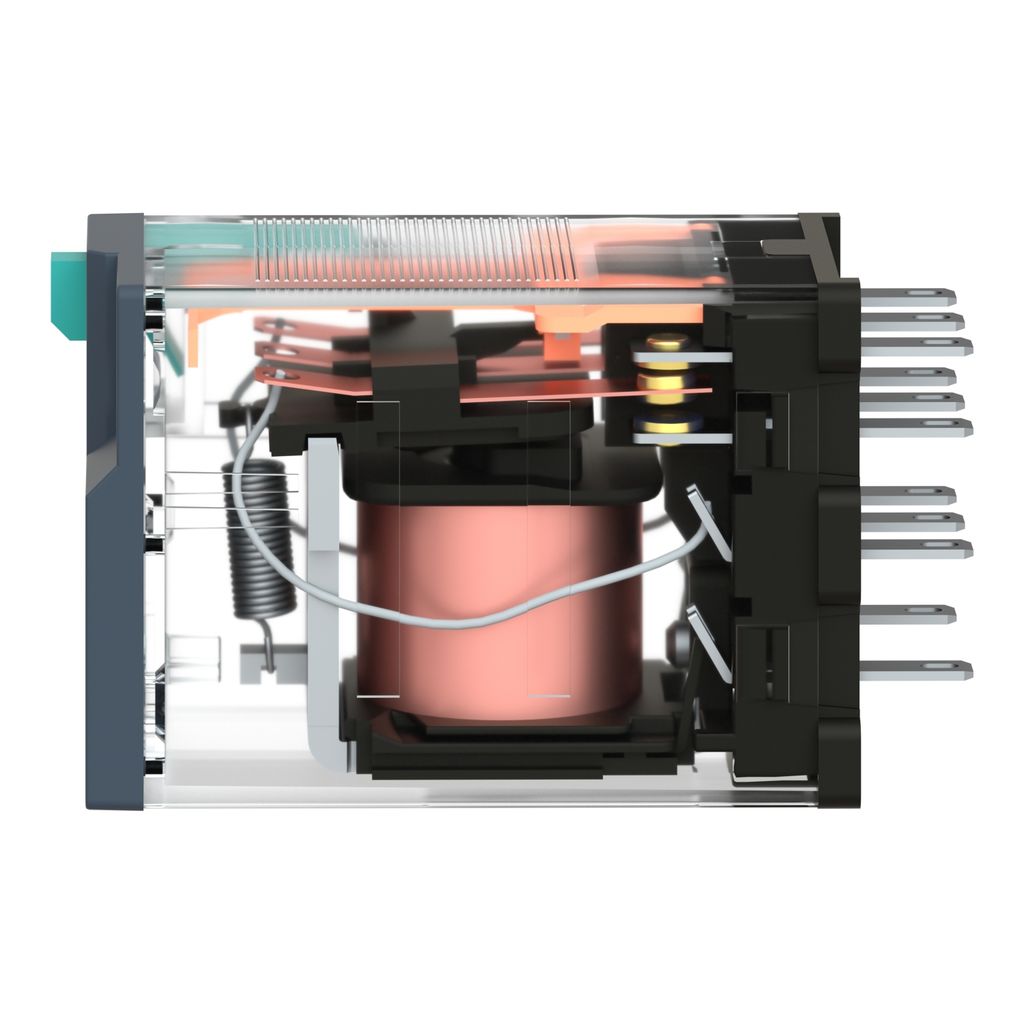

Schneider Electric Plug In Power Relay, 12V dc Coil, 10A Switching Current, 3PDT

rxm3ab1jd Schneider Electric Plug In Power Relay, 12V dc Coil, 10A Switching Current, 3PDT
RXM3AB1JD
RXM3AB1JD
HT21239
brand logo

HT Part No. HT21239

Mfr. Part No. RXM3AB1JD

Manufacturer: Schneider Electric

Technical Documents: Datasheet_RXM3AB1JD-31038358(datasheets) Product Environmental Profile-77fcc98b(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Coil Voltage 12V dc
Contact Configuration 3PDT
Mounting Type Plug In
Switching Current 10A
Number of Poles 3
Latching No
Terminal Type Plug In
Maximum Switching Voltage AC 250V
Length 21mm
Coil Resistance 160Ω
Coil Power 900mW
Life 100000 cycles
Height 27mm
Contact Material Silver Alloy
Standards Met CE, CSA, EN/IEC, GOST, Lloyd's, REACH, RoHS Compliant, UL
Better World Verification Green Premium
Depth 47.7mm
Maximum Operating Temperature +55°C
Better World Product Yes
Series Harmony Relay RXM
Minimum Operating Temperature -40°C
Maximum Switching Power DC 280 W
Maximum Switching Power AC 2.5 kVA
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=90476&DisplayLogo=False

More Information

RXM Series Miniature Relays without LED The compact Zelio RXM miniature relays without LED from Schneider Electric can be used to increase the functions in electrical enclosures, particularly useful for industrial applications, machine/building equipment and HVAC. Range of miniature plug-in relays on base, RXZE2 type
Simple to use- no adjustment required for standard applcations
Easily integrated into current devices & can be adapted for all voltages
Test button and mechanical indicator of relay status
Bases for assembly on DIN rail or with screws to be ordered separately
