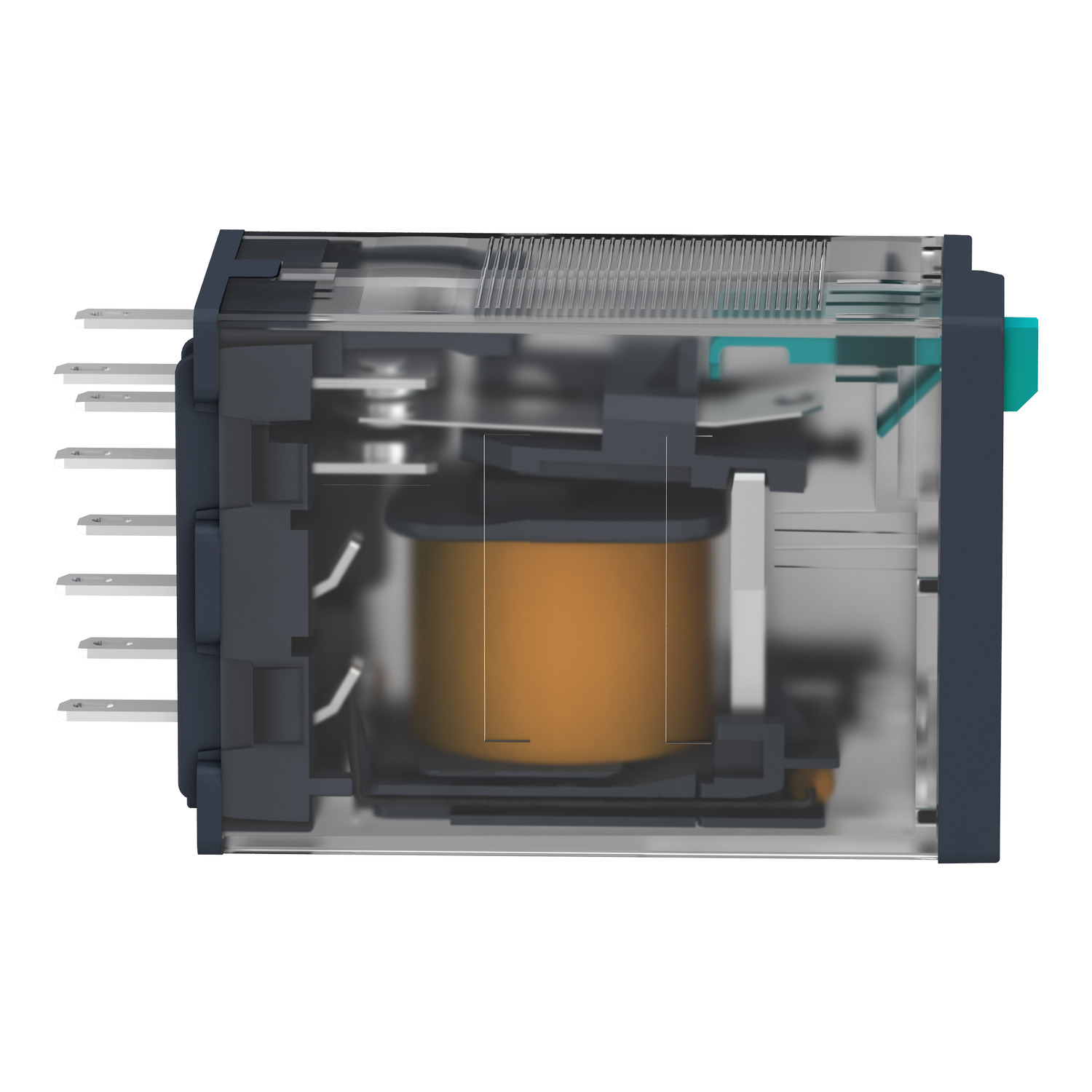

Schneider Electric Plug In Power Relay, 24V dc Coil, 12A Switching Current, DPDT

rxm2ab2bd Schneider Electric Plug In Power Relay, 24V dc Coil, 12A Switching Current, DPDT
RXM2AB2BD
RXM2AB2BD
HT21270
HT21270
Power Relays
Power Relays
rxm2ab2bd Schneider Electric Plug In Power Relay, 24V dc Coil, 12A Switching Current, DPDTSchneider Electric
rxm2ab2bd Schneider Electric Plug In Power Relay, 24V dc Coil, 12A Switching Current, DPDTSchneider Electric
rxm2ab2bd Schneider Electric Plug In Power Relay, 24V dc Coil, 12A Switching Current, DPDT
RXM2AB2BD
RXM2AB2BD
HT21270
HT21270
Power Relays
Power Relays
rxm2ab2bd Schneider Electric Plug In Power Relay, 24V dc Coil, 12A Switching Current, DPDTSchneider Electric
rxm2ab2bd Schneider Electric Plug In Power Relay, 24V dc Coil, 12A Switching Current, DPDTSchneider Electric
rxm2ab2bd Schneider Electric Plug In Power Relay, 24V dc Coil, 12A Switching Current, DPDT
RXM2AB2BD
brand logo

HT Part No. HT21270

Mfr. Part No. RXM2AB2BD

Manufacturer: Schneider Electric

Technical Documents: Datasheet_RXM2AB2BD-567a7282(datasheets) Product Environmental Profile-77fcc98b(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Coil Voltage 24V dc
Contact Configuration DPDT
Mounting Type Plug In
Switching Current 12A
Number of Poles 2
Latching No
Terminal Type Plug In
Maximum Switching Voltage AC 250V
Length 21mm
Coil Resistance 650Ω
Coil Power 900mW
Maximum Operating Temperature +55°C
Depth 47.7mm
Minimum Operating Temperature -40°C
Height 27mm
Better World Product Yes
Standards Met CE, CSA, EN/IEC, GOST, Lloyd's, REACH, RoHS Compliant, UL
Contact Material Silver Alloy
Series Harmony Relay RXM
Better World Verification Green Premium
Life 100000 cycles
Maximum Switching Power AC 3 kVA
Maximum Switching Power DC 336 W
Dimensions 21 x 27 x 47.7mm
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=90431&DisplayLogo=False

More Information

Schneider Electric Miniature Series Power Relay, 24V DC Control Circuit Voltage, 10A Output Current - RXM2AB2BD This miniature plug-in relay is engineered for efficient switching with a rated operational current of 12A at 28V DC and 12A at 250V AC. It features a control circuit voltage of 24V DC and supports a maximum switching capacity of 3000VA/336W, ensuring reliable performance across various applications. Features & Benefits • Utilisation coefficient of 20% for enhanced efficiency
• 100,000 electrical cycles for long-term durability
• Silver alloy contacts for improved performance
• Maximum switching voltage of 250V for versatility
• Status LED for easy monitoring
• Lockable test button for secure operation Applications • Automation systems for control switching
• Industrial machinery for power management
• Electrical circuits for safety applications
• Mechanical systems for precise control Can it withstand high temperatures? Yes, it operates within -40°C to +55°C. Is it suitable for both AC and DC applications? Yes, it supports 12A at both AC and DC voltages. Will it provide switching for industrial needs? Yes, it is designed for heavy-duty industrial applications.
