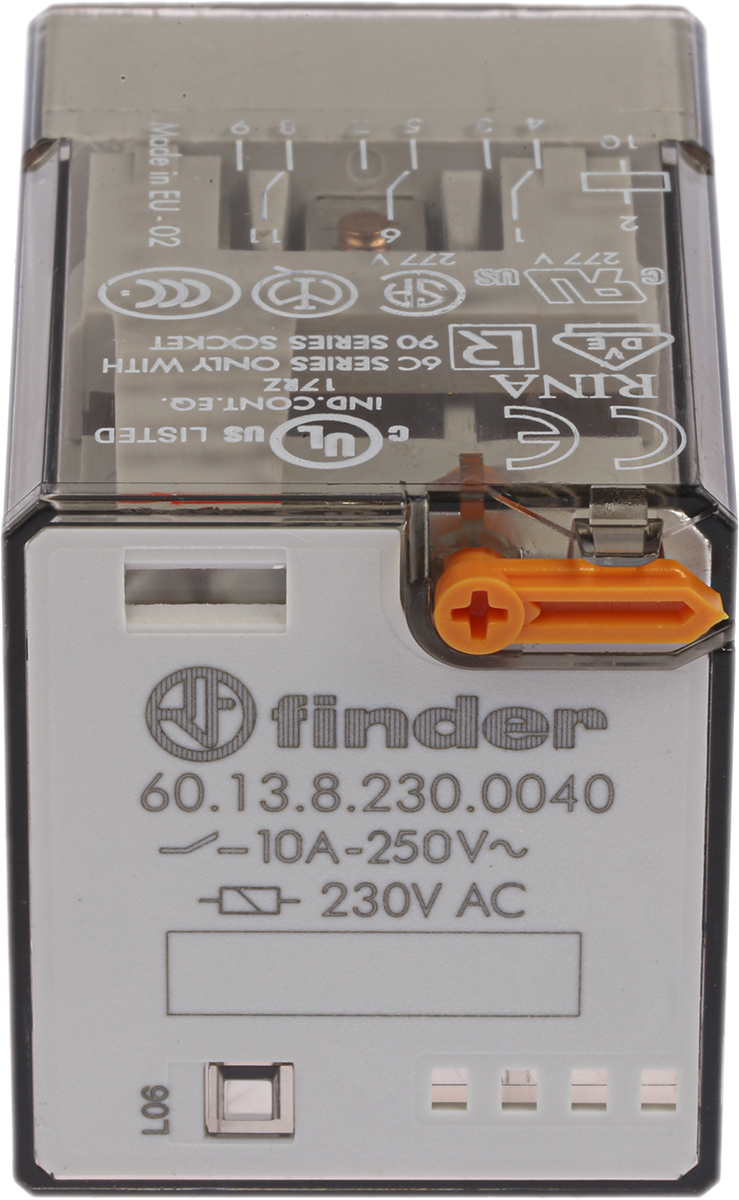

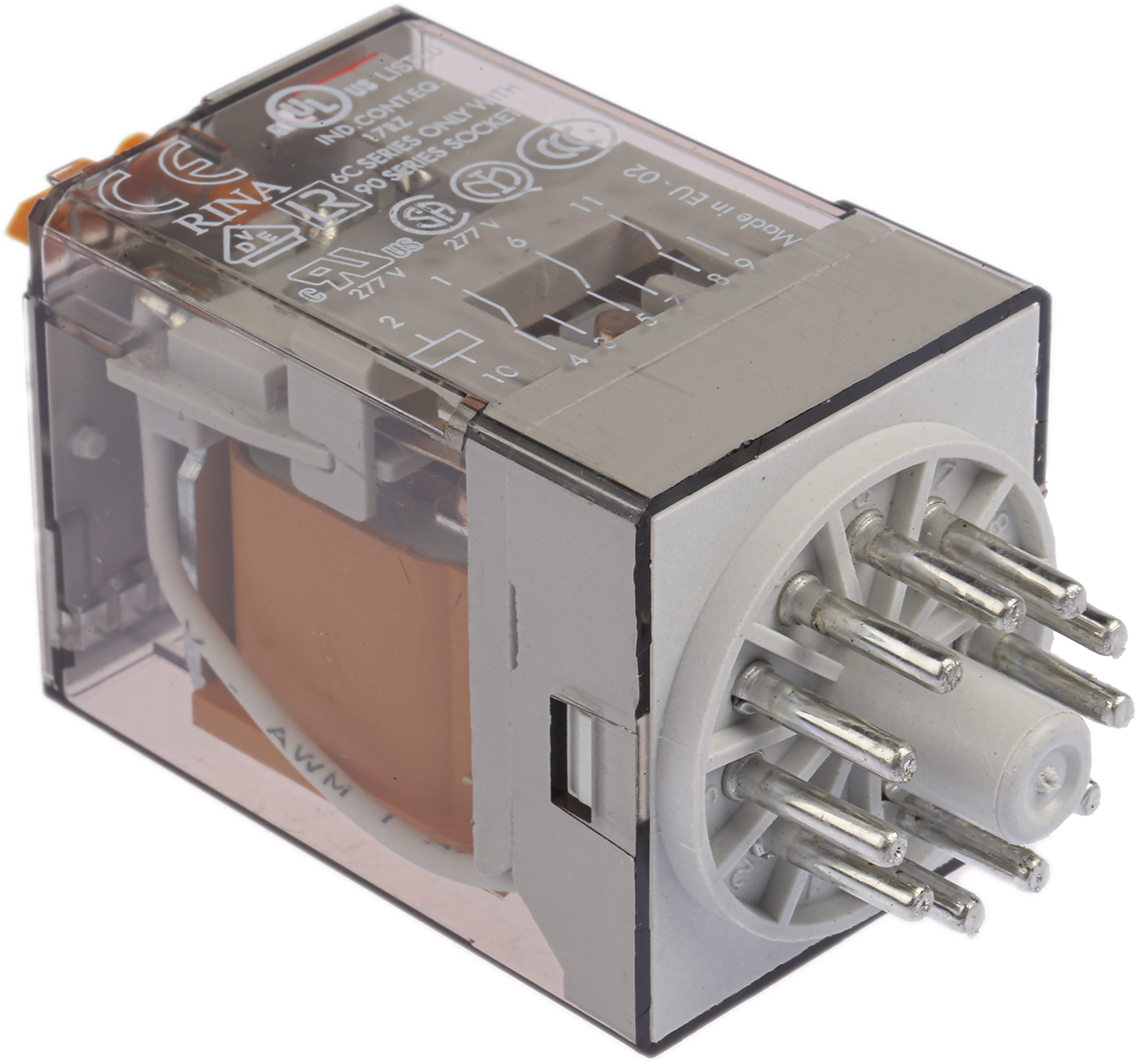

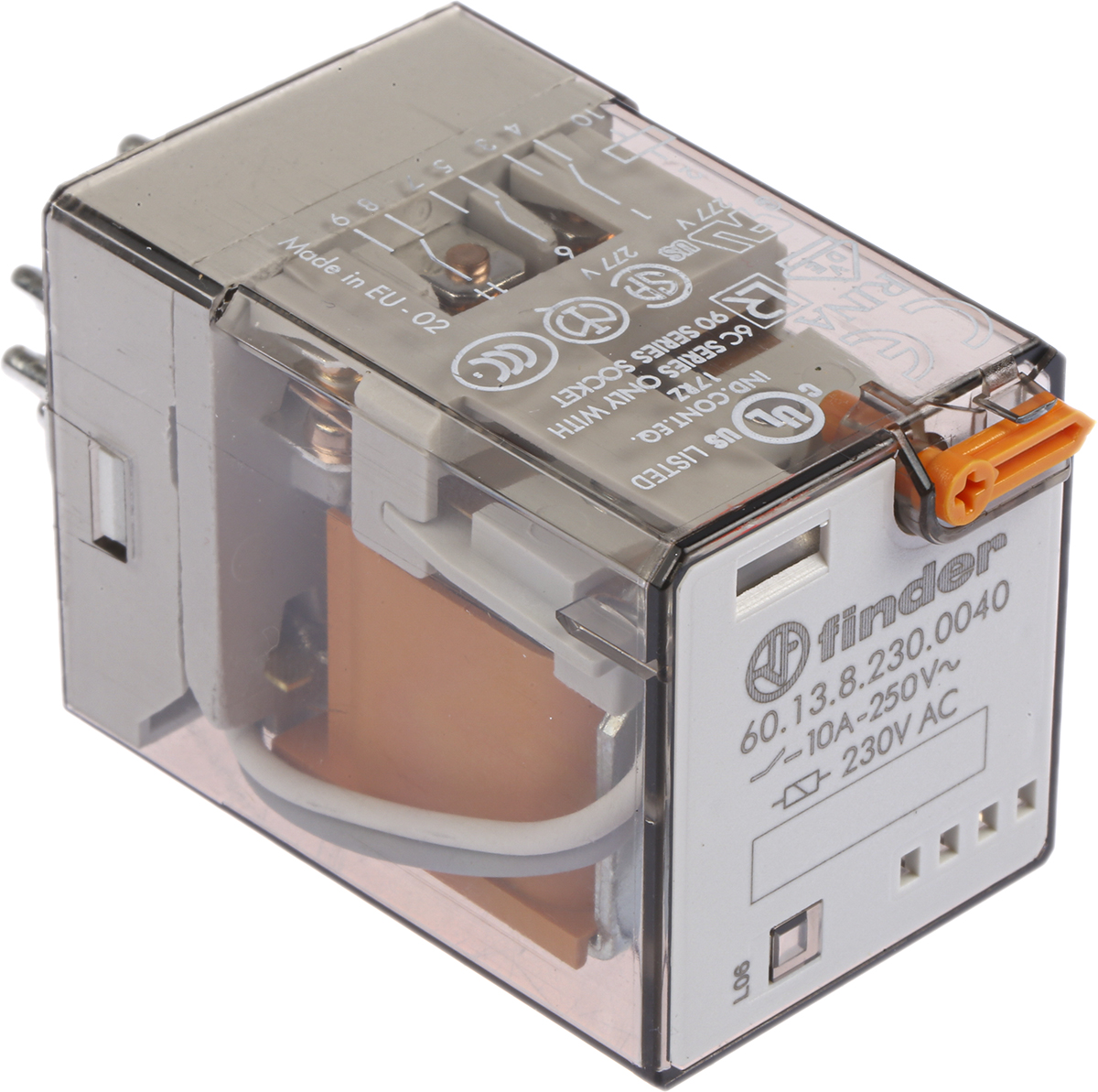

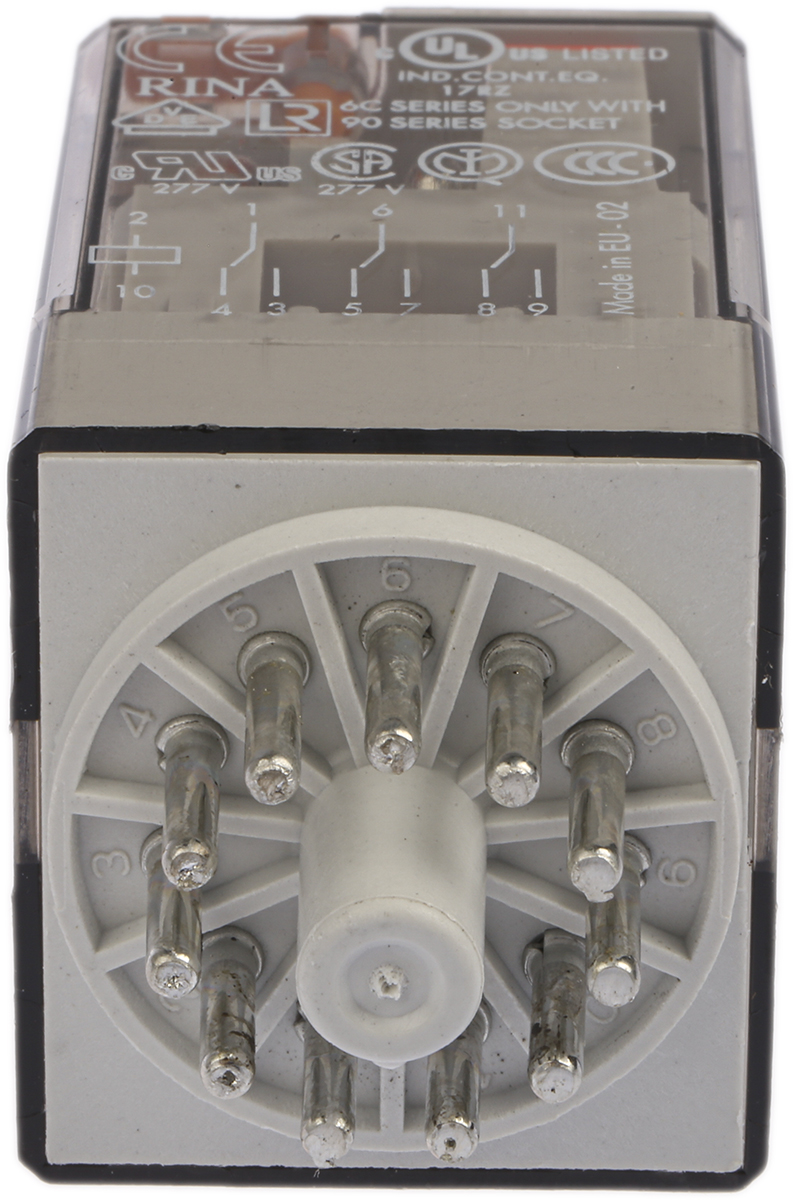

HT Part No. HT23415
Mfr. Part No. 60.13.8.230.0040
Manufacturer: Finder
Technical Documents: UL RECOGNISED/CUR E81856-15ccad72(datasheets) VDE APPROVAL 1665-365abdd7(datasheets) Lloyds Register of Shipping-4cc18bf6(datasheets) RINA Certificate-fd1b709b(datasheets) Datasheet-948a26f5(datasheets) Brochure - Solutions for Electrical Panels and Industrial Automation-278f0d8e(datasheets)
| Product Attributes | |
|---|---|
| Coil Voltage | 230V ac |
| Contact Configuration | 3PDT |
| Mounting Type | Plug In |
| Number of Poles | 3 |
| Latching | No |
| Terminal Type | PCB Pin |
| Maximum Switching Voltage AC | 400V ac |
| Maximum Switching Current DC | 10 A |
| Maximum Switching Current AC | 10 A |
| Length | 32.5mm |
| Coil Resistance | 7250Ω |
| Maximum Operating Temperature | +70°C |
| Contact Material | Silver Alloy |
| Height | 54.2mm |
| Minimum Operating Temperature | -40°C |
| Depth | 36.4mm |
| Maximum Switching Power AC | 2.5 kVA |
| Application | General Purpose |
