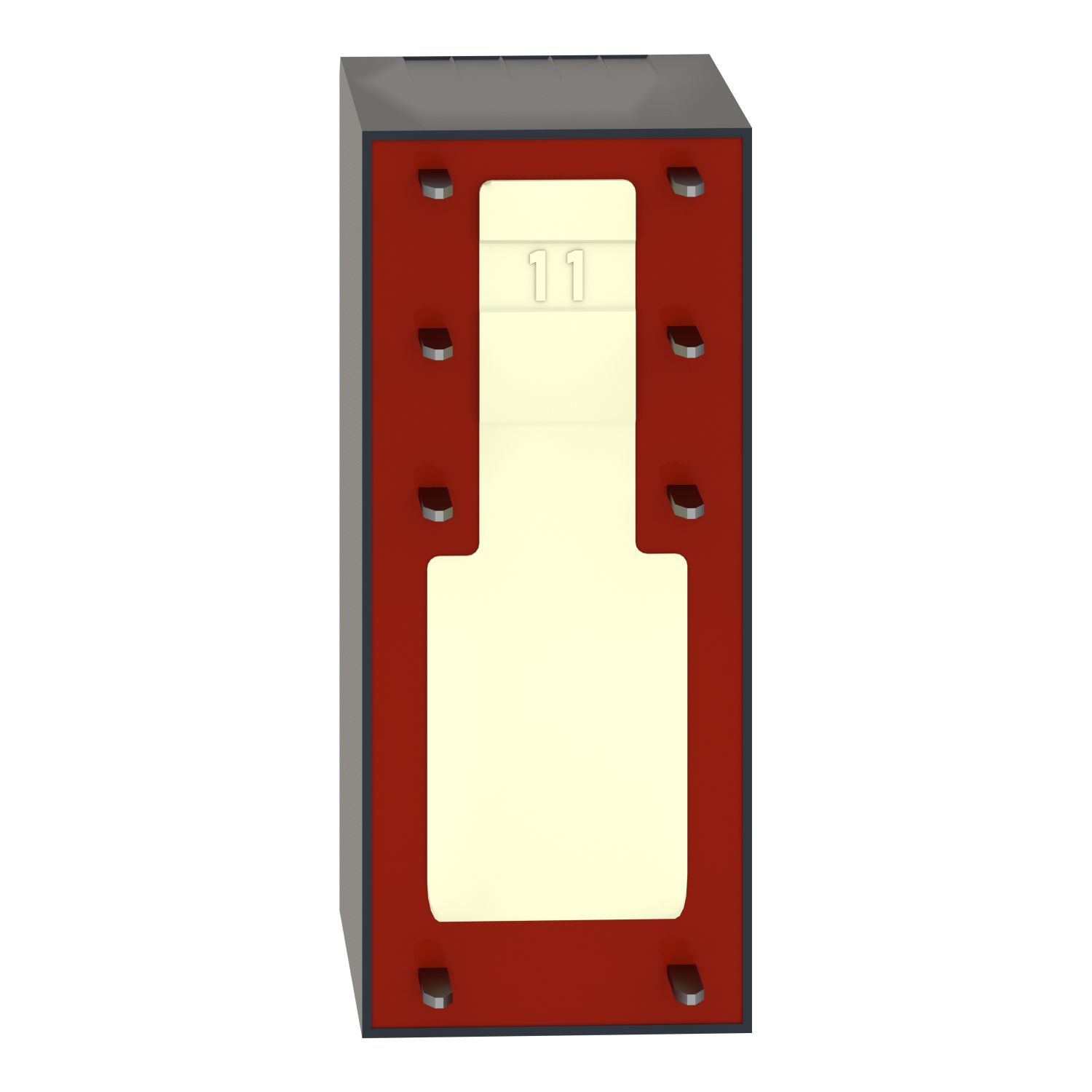

Schneider Electric PCB Mount Power Relay, 24V dc Coil, 8A Switching Current, DPDT

rsb2a080bd Schneider Electric PCB Mount Power Relay, 24V dc Coil, 8A Switching Current, DPDT
RSB2A080BD
RSB2A080BD
HT27270
HT27270
Power Relays
Power Relays
rsb2a080bd Schneider Electric PCB Mount Power Relay, 24V dc Coil, 8A Switching Current, DPDTSchneider Electric
rsb2a080bd Schneider Electric PCB Mount Power Relay, 24V dc Coil, 8A Switching Current, DPDTSchneider Electric
rsb2a080bd Schneider Electric PCB Mount Power Relay, 24V dc Coil, 8A Switching Current, DPDT
RSB2A080BD
RSB2A080BD
brand logo

HT Part No. HT27270

Mfr. Part No. RSB2A080BD

Manufacturer: Schneider Electric

Technical Documents: Datasheet_RSB2A080BD-77ae6671(datasheets) Product Environmental Profile-b418ee35(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Coil Voltage 24V dc
Contact Configuration DPDT
Mounting Type PCB Mount
Switching Current 8A
Terminal Type Through Hole
Maximum Switching Voltage DC 300V
Length 29mm
Coil Resistance 1.44 kΩ
Contact Material Silver Alloy
Better World Verification Green Premium
Height 15.7mm
Better World Product Yes
Maximum Operating Temperature +70°C
Minimum Operating Temperature -40°C
Series Harmony Relay RSB
Standards Met RoHS Compliant
Depth 12.5mm
Dimensions 29 x 12.5 x 15.7mm
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=148730&DisplayLogo=False

More Information

Schneider Electric Interface Relay Series Power Relay, IP40, 24V DC Control Circuit Voltage - RSB2A080BD This interface relay from the Harmony Electromechanical Relays series operates at 24V DC with a plug-in design accommodating up to 8A. It features dual changeover contacts and an average coil resistance of 1440Ω, suitable for temperatures between -40 to 85°C. Features & Benefits • Dual pole double throw (DPDT) configuration
• Silver alloy contacts for enhanced durability
• RoHS compliant Applications • Automated control systems
• Industrial machinery
• HVAC applications
• Lighting control circuits
• Process automation Can it handle inductive loads? Yes, it is designed for both resistive and inductive loads. Will it fit in compact spaces? Yes, its compact dimensions facilitate installation in tight areas. Is it safe for outdoor use? It is designed for indoor use protect from external elements. Can it switch high voltage? It manages up to 300V DC for safe operation. Is installation straightforward? Yes, it features a PCB mount design for easy installation.
